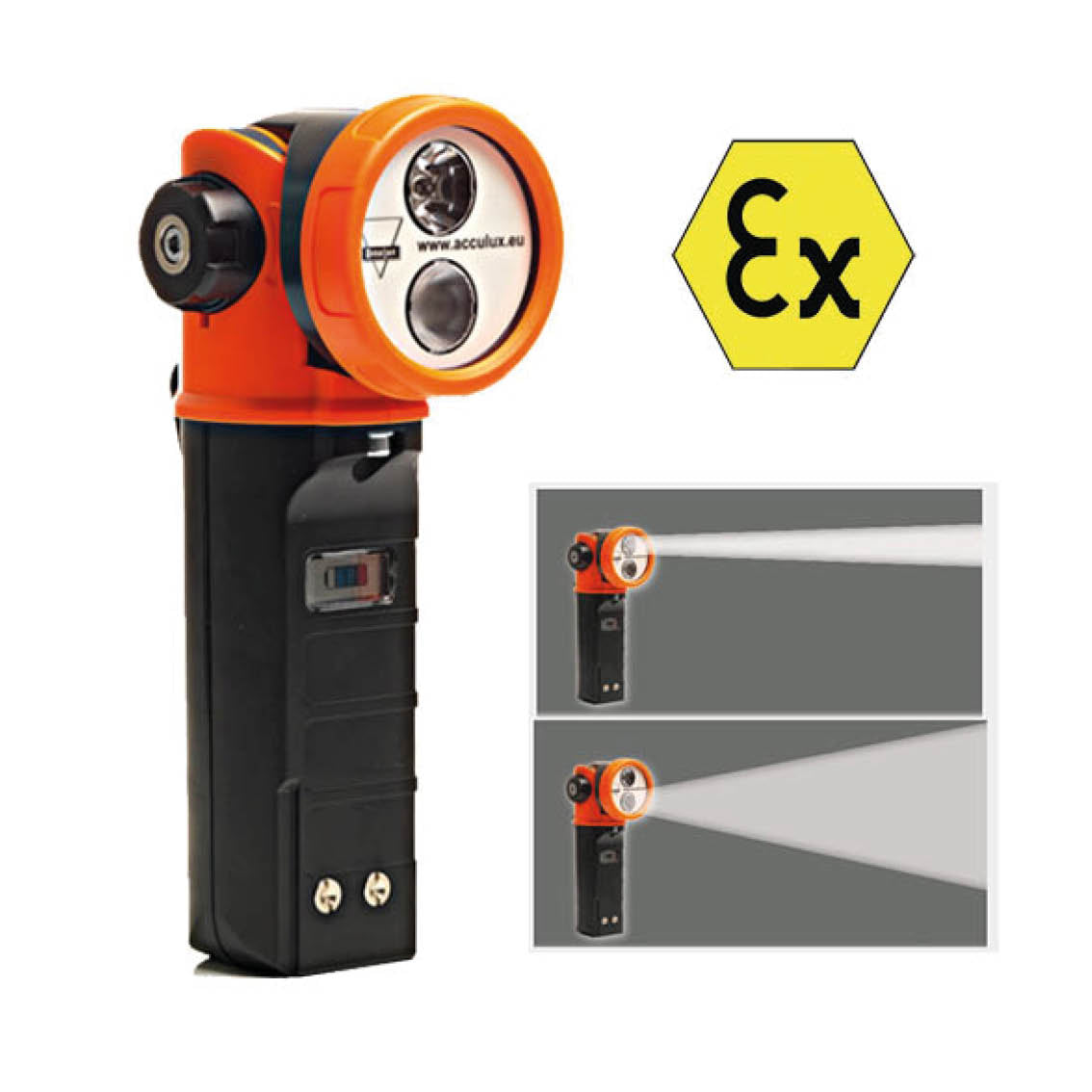

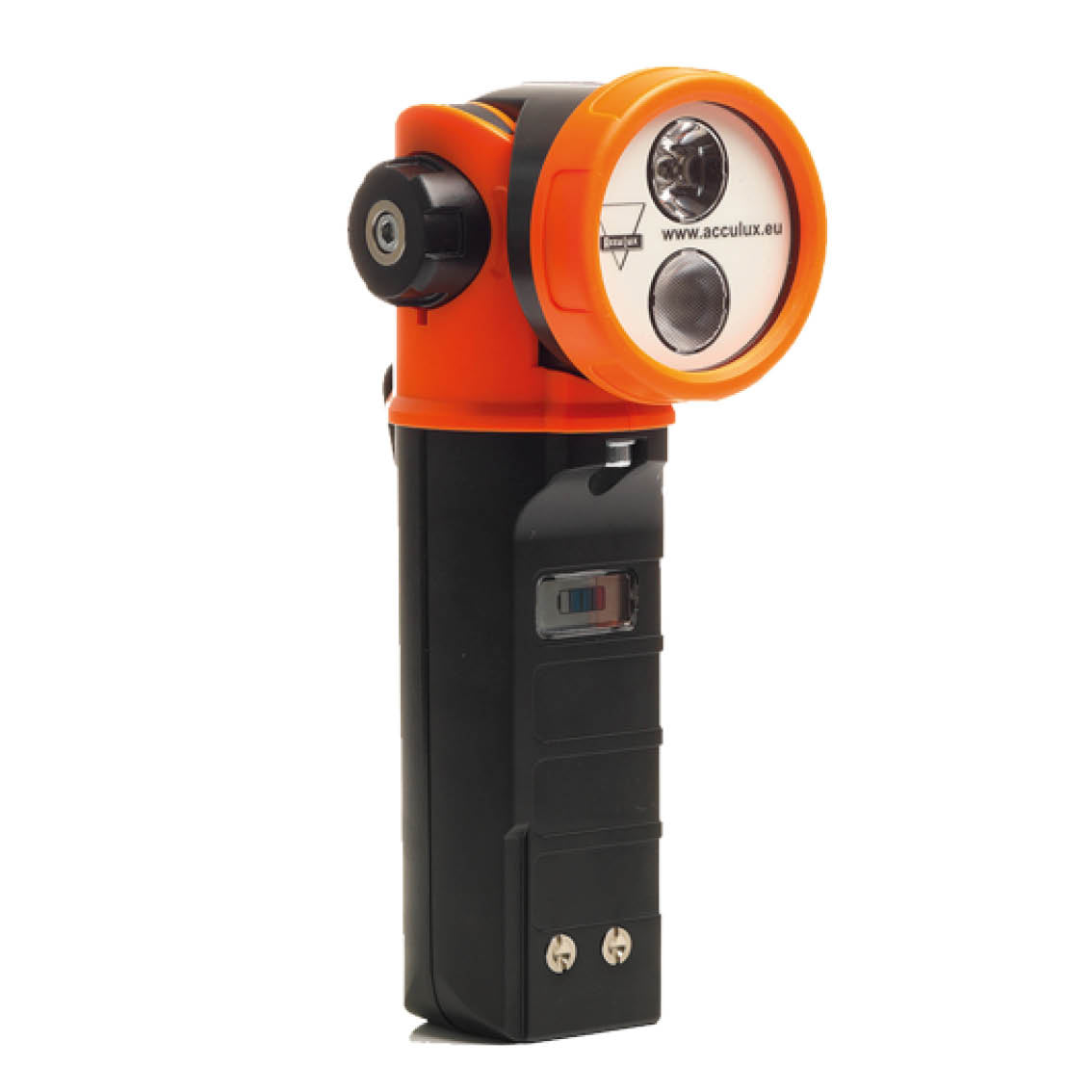

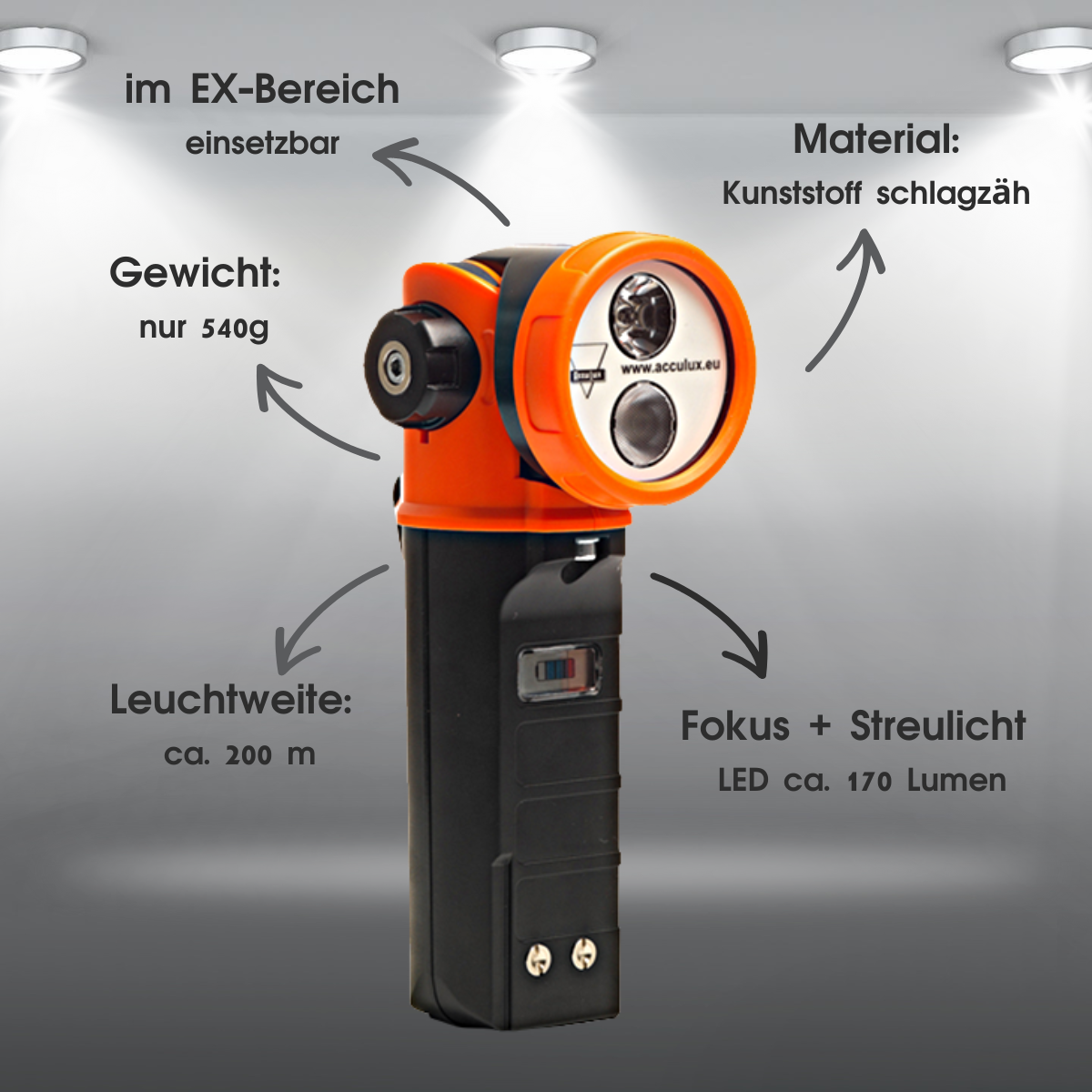

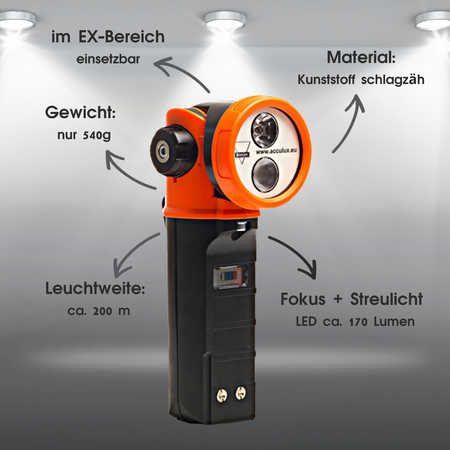

Acculux articulated head lamp HL 25 EX, explosion-proof

Technical data:
Housing material: non-flammable plastic, impact-resistant
High beam bulb: with 170 lumens
High beam duration: approx. 5 h
Beam range: approx. 200 m
Protection class of the luminaire: IP 67
Light source close range: 1 watt LED (with 90 lumens)
Lighting time close range: approx. 10 h
Battery: Lithium-ion battery 3.7 V, 5200 Ah
Charging voltage: 100-230V AC 50/60 Hz, 12V DC, 24V DC
Weight of the lamp: 540 g
Dimensions in mm (set): 225 x 70 x 70
Ex zone: 1, 2, 21 and 22
Ex marking II 2 G Ex ib IIC T4 Gb/ II 2D Ex ib IIIC T 135°C Db

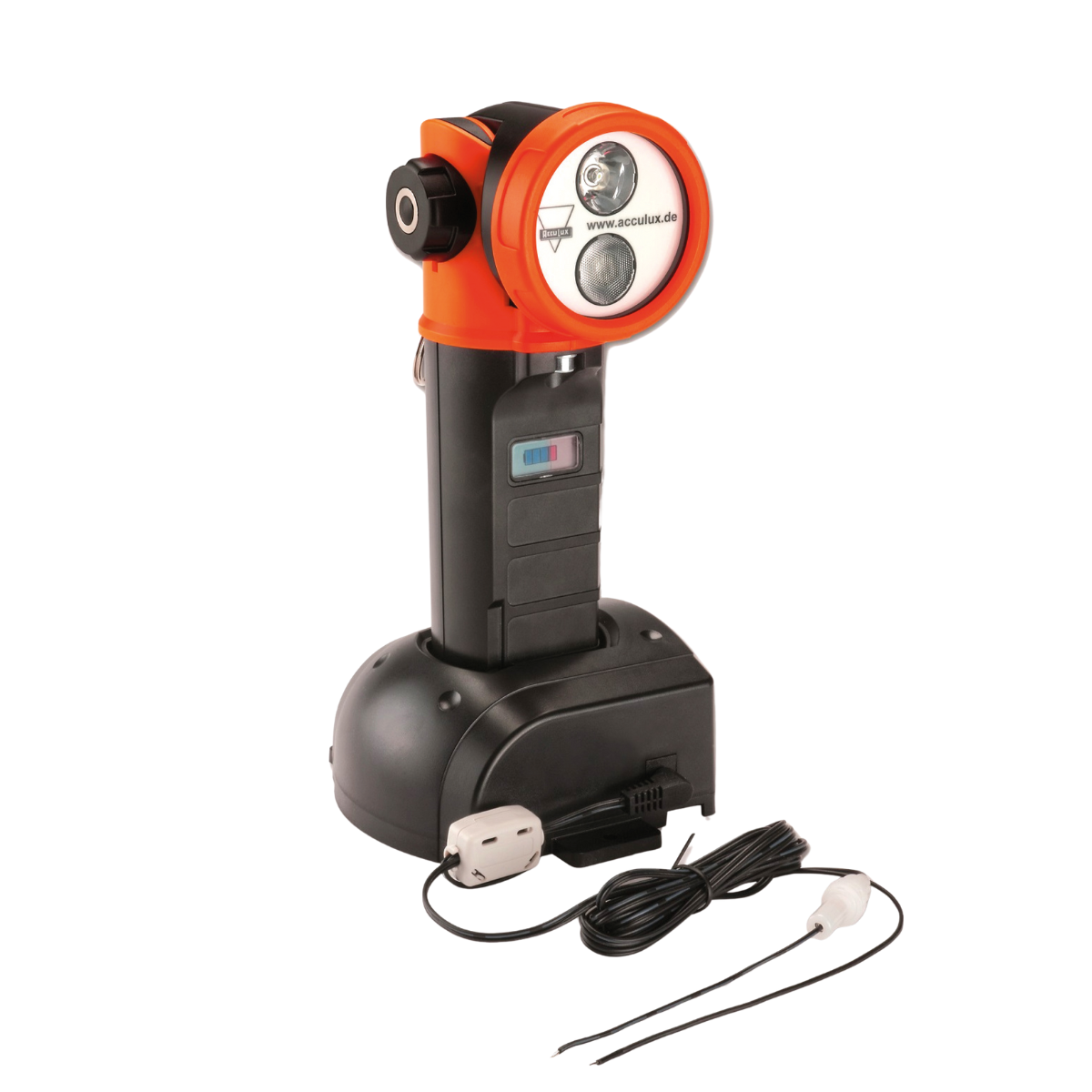

HL 25 EX Set: Handheld lamp + single charging unit 12/24V

Description

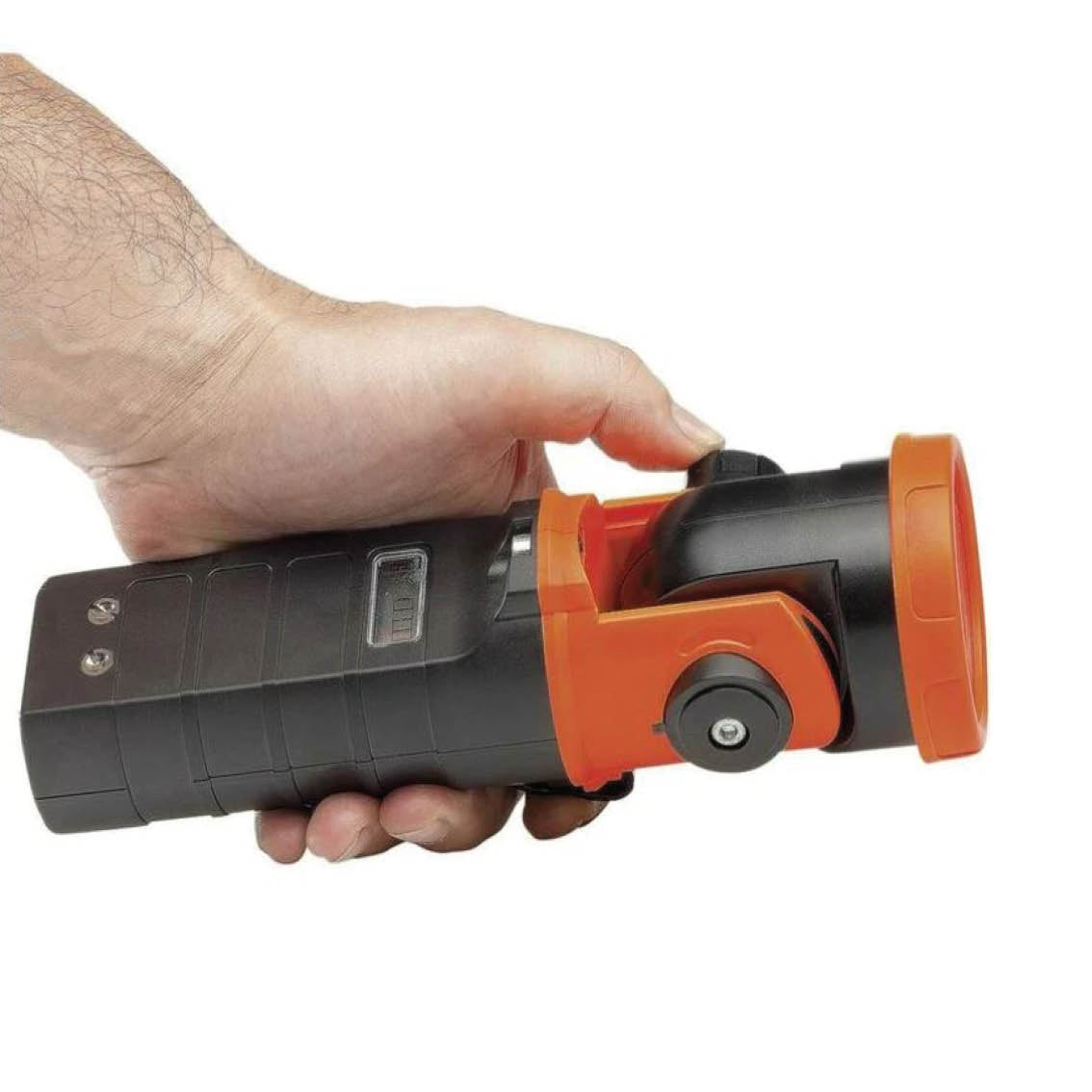

The microprocessor-controlled, rechargeable bendable head hand lamp, model HL
25 EX, made of impact-resistant plastic, was tested according to ATEX Directive 2014/34/EU and
relevant EMC regulations and has a vehicle approval. The lamp is
equipped with two switchable high-performance LEDs: a power LED with
focused light beam for long-distance use and a 1 watt power LED with
wide radiation for close-range applications. The environmentally friendly
Lithium-ion battery without memory effect is thanks to the intelligent
Circuit layout protected against deep discharge and continuously chargeable. This can be
be replaced by yourself. Due to the 4-stage adjustable light head,

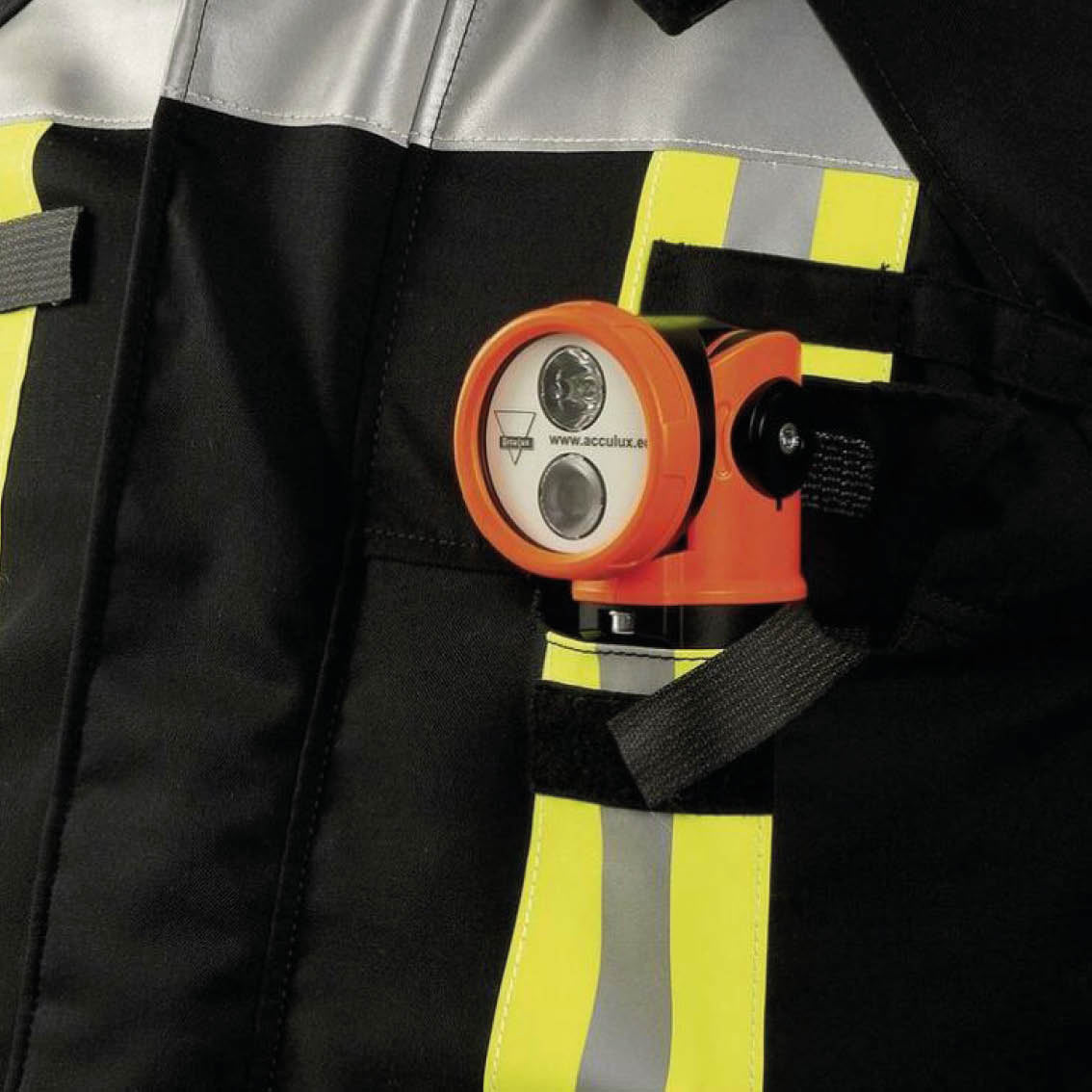

The lamp is flexible in its use. A clamp allows the lamp to be mounted on
The HL 25 EX can be used in permanent and
flashing function and can be used as a warning light.
Use as a luminaire with emergency light function is also available and can be
Customers are switched off. The charging unit for 100-230V AC, 12V DC and 24V DC
can be supplied in 1- to 5-fold configurations. With a low weight of approx.
At 545 g, the HL 25 EX is the lightest of comparable hand lamps.
Design is in accordance with DIN 14649.

replaceable lithium-ion battery - by the operator
LCD capacity display flashes when charging
LCD capacity display backlit

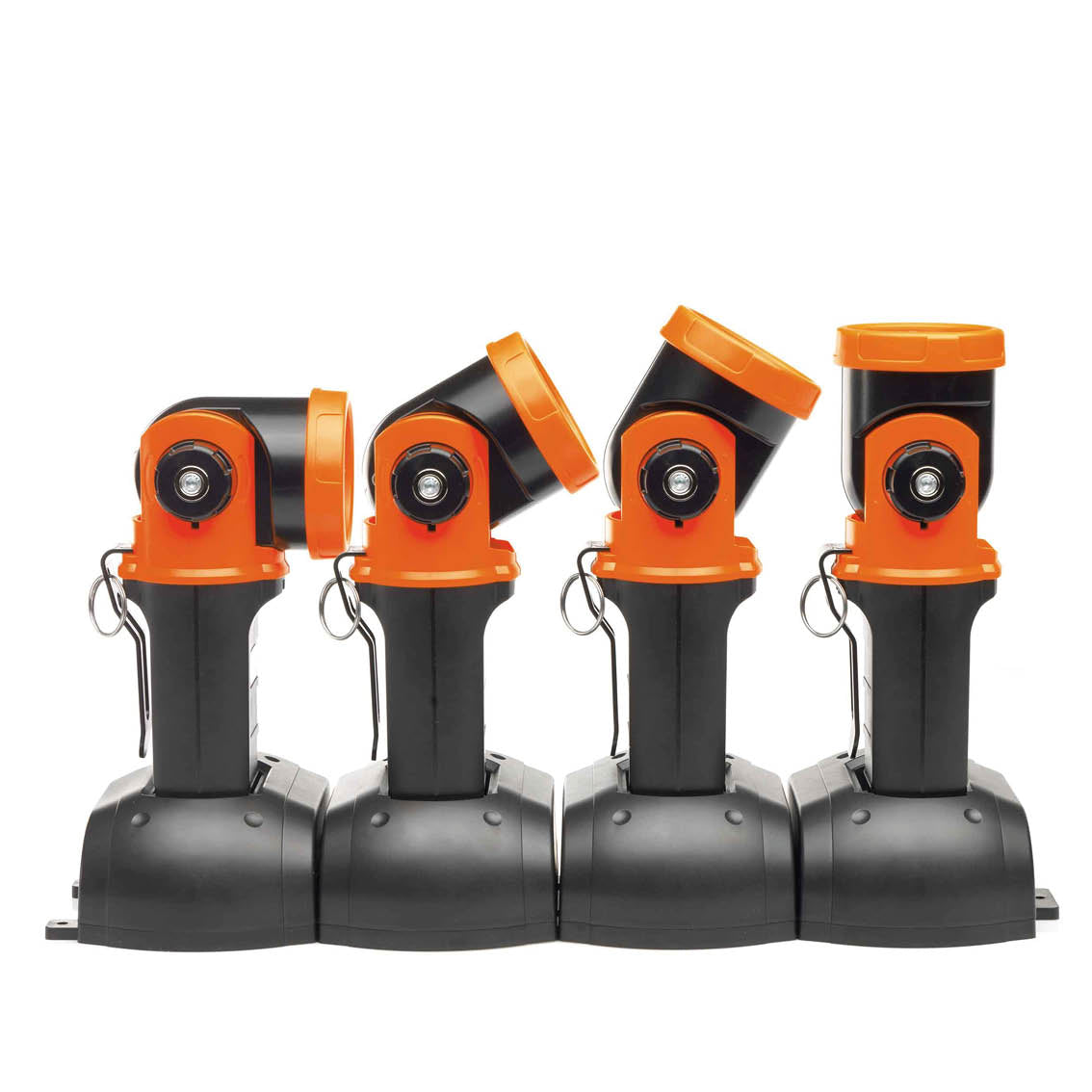

4-stage adjustable light head
Loading units 1-fold to 5-fold
no need to change the bulb
switchable emergency light function
low weight, only approx. 545 g
