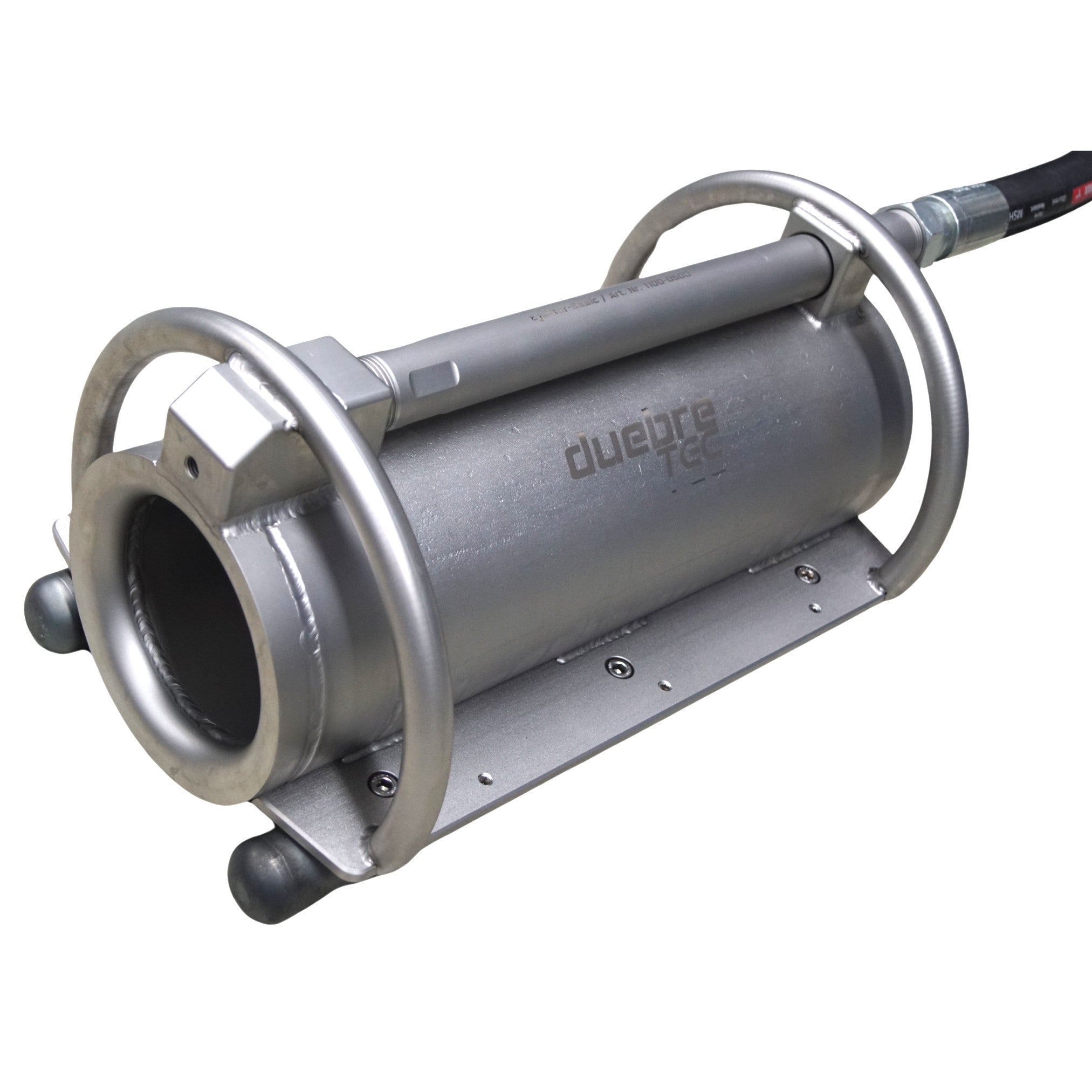

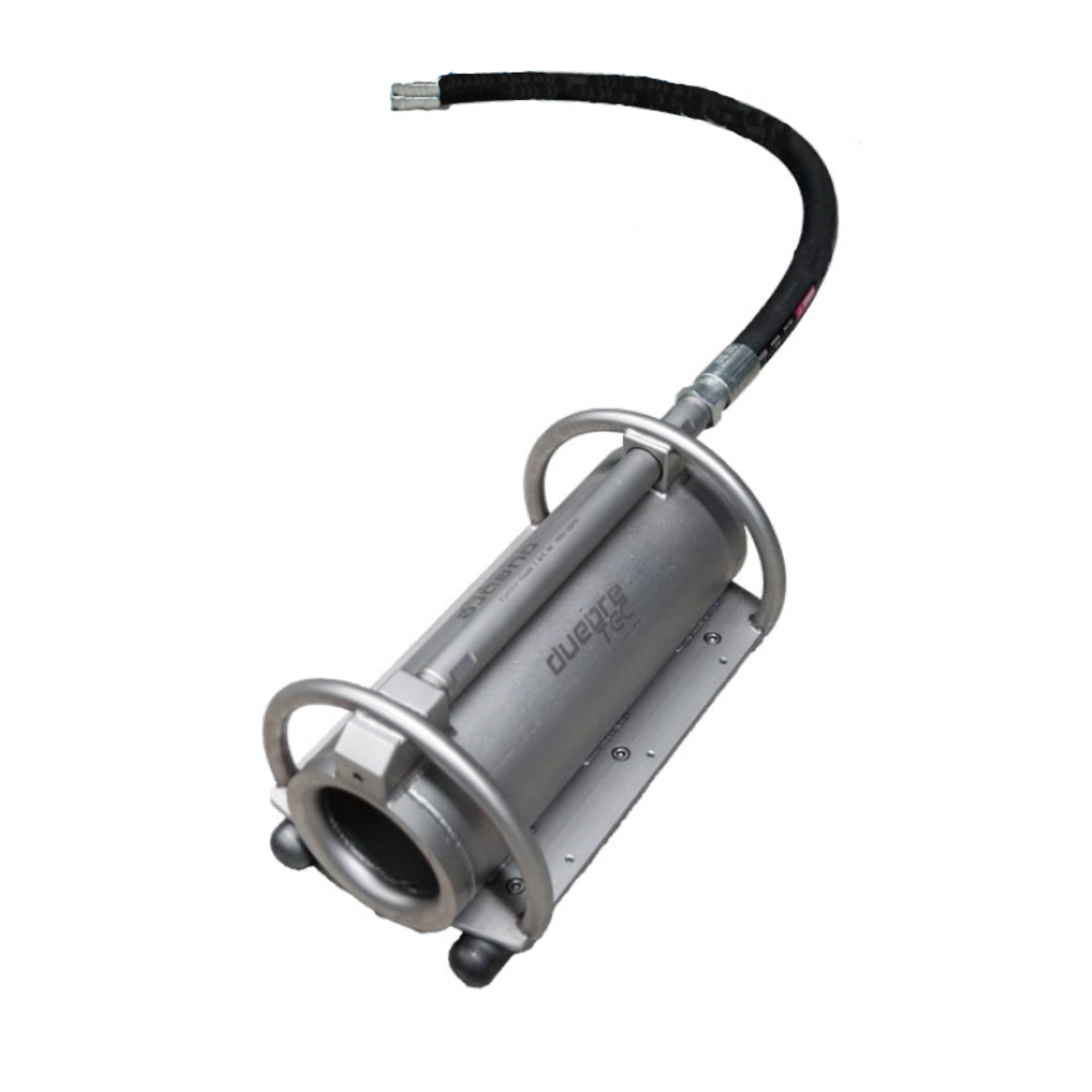

Ejector nozzle Basic 1", sewer cleaning nozzle from DN 500

SKU: 1100-0500
4.699,31 € inkl. MwSt.
plus shipping costs
✉ Delivery time: 2 – 3 business days

Klicke auf eine Variante, um diese zu wählen.
Hinweis: Dieses Produkt ist eine Sonderanfertigung. Die Lieferzeit kann daher länger sein als üblich. Bitte beachte dazu unsere Versandbedingungen.

Damit wir deine Bestellung zügig bearbeiten können, gib bitte im Bestellprozess unbedingt die gewünschte Pumpenleistung (bar/liter) und ggf. die Schlauchlänge an.

Payment methods

  • American Express
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Discover our variety of secure and convenient payment methods.

d
Application area from DN 500
incl. 8x M10x1 ceramic inserts (10°)
Dimensions: 270x225x490 mm
Weight: 32 kg
without special nozzle insert key
VA version with replaceable, hardened runners

EJECTOR nozzles

Gentle cleaning of flooded, sensitive pipe systems - Ideal for
Culvert cleaning

The sewer cleaning nozzles are the ideal choice for cleaning hard-to-reach
Places and sensitive sewer and pipe systems. It sucks in the water and
It releases the air at the rear end to gently remove sand, mud and gravel from the
This nozzle may only be used in flooded pipelines
It also accelerates the water flow in the pipe to prevent
Three to four times to rinse out solids.

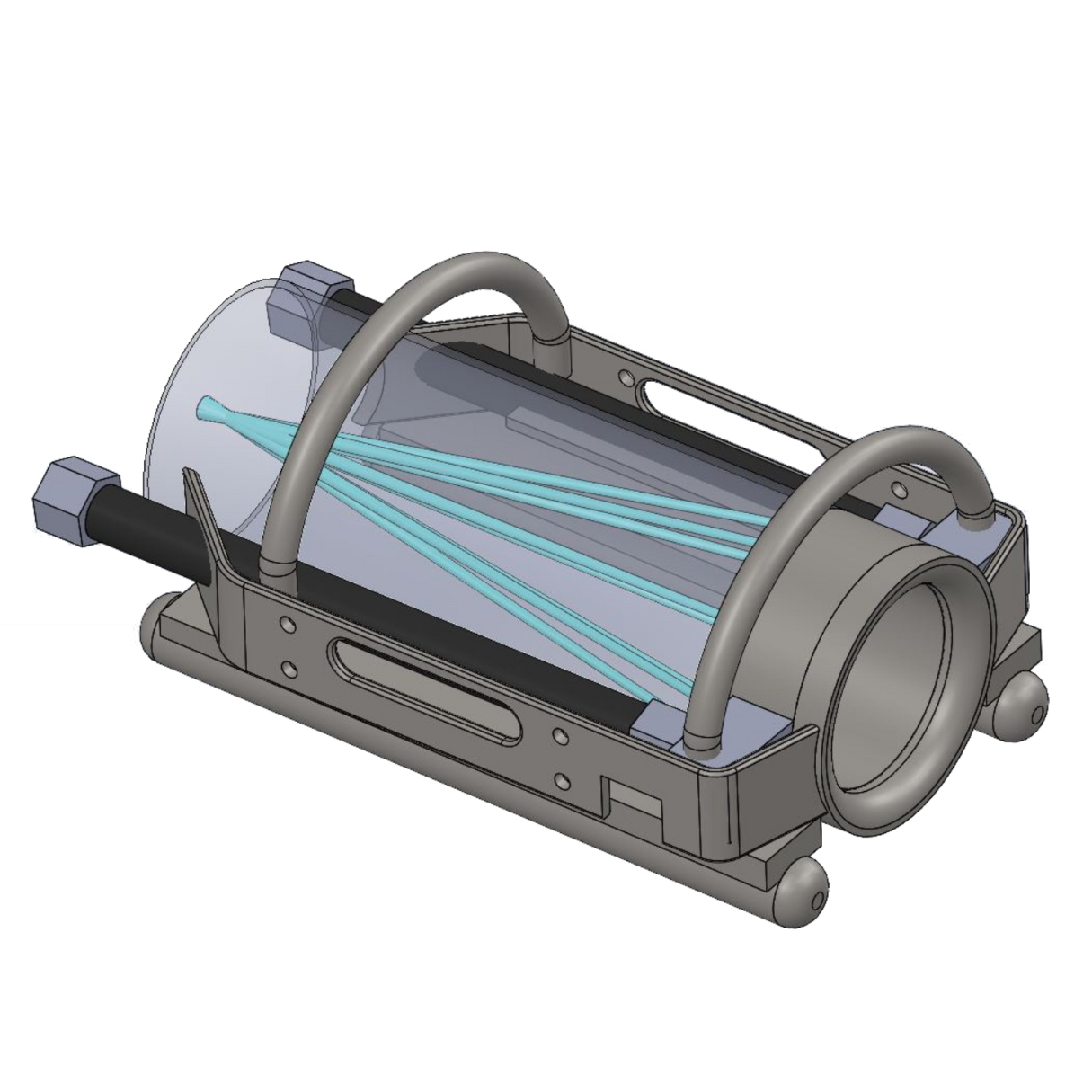

This nozzle series works according to the VENTURI principle and thus promotes large
Amounts of loose deposits, such as mud and debris from water-bearing
Pipe-duct systems. In order for ejector nozzles to be used effectively, they must
at least 2/3 are carried in the existing wastewater.

Housing and skids made of stainless steel. Hose, branch and swivel joint are in the
Delivery included. Recommended working pressure 100 to 130 bar.
