Elliptical pipe bladder Plugsy GM1, DN 50-80 mm, through bladder
Lieferzeit
11. Sep - 18. Sep

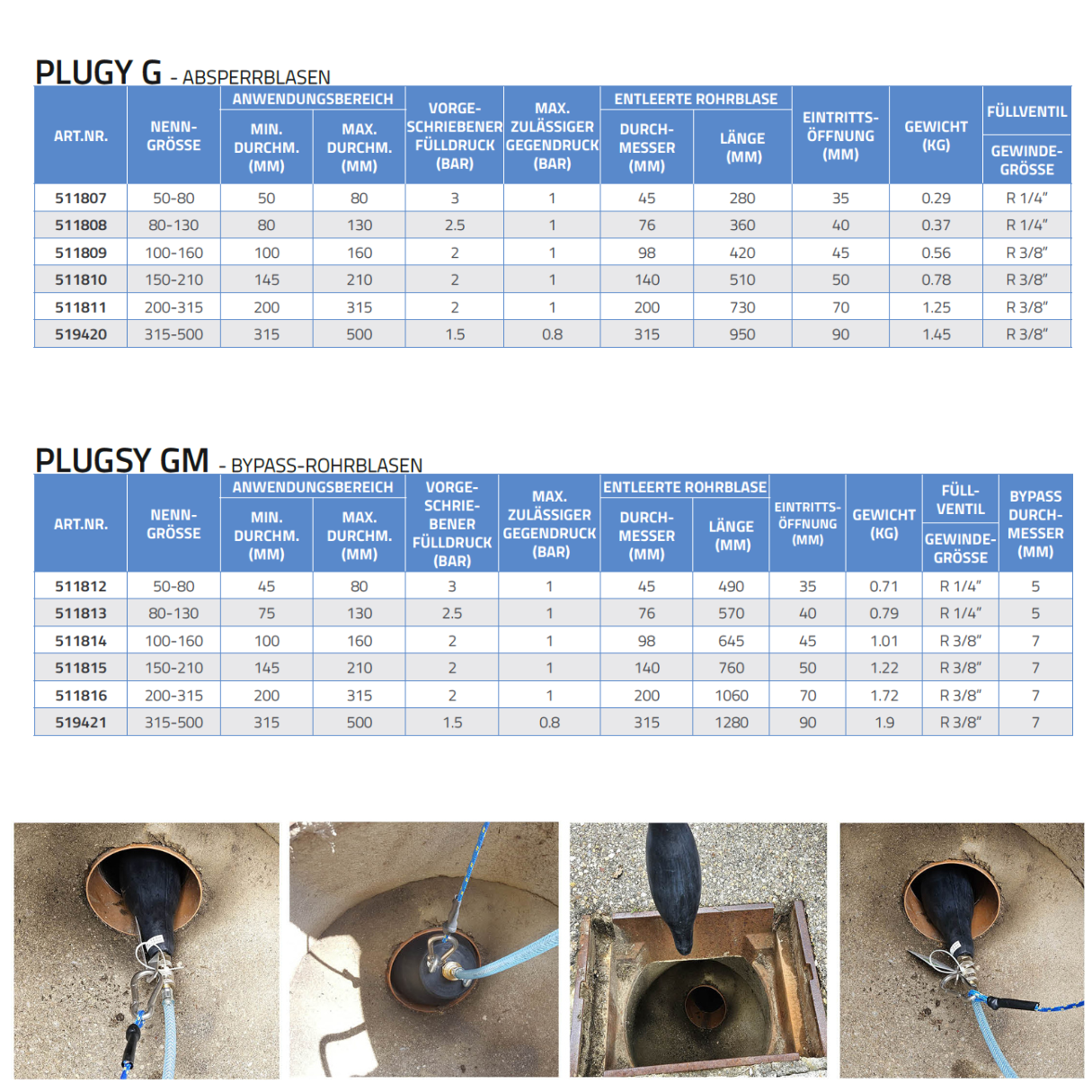

- Application range: DN 50-80 mm
- Passage: Ø 5
- Operating pressure: 3 bar
- Insertion diameter: 35 mm
- Bulb diameter: 45 mm
- Length: 490 mm
- Connection: 1/4" compressed air coupling
- Weight: 0.71 kg

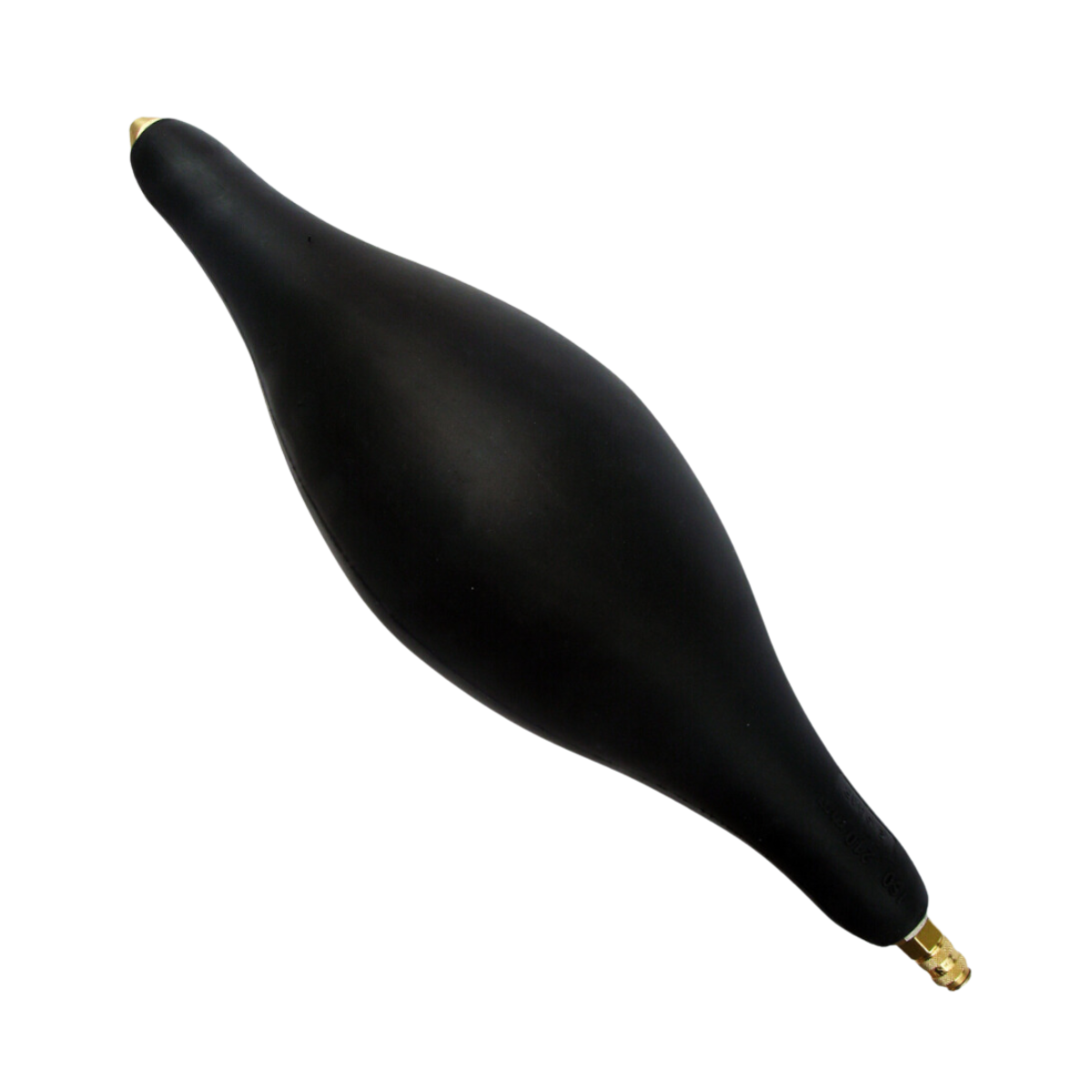

Elliptical pipe plug Plugsy GM1 - DN 50-80, through plug

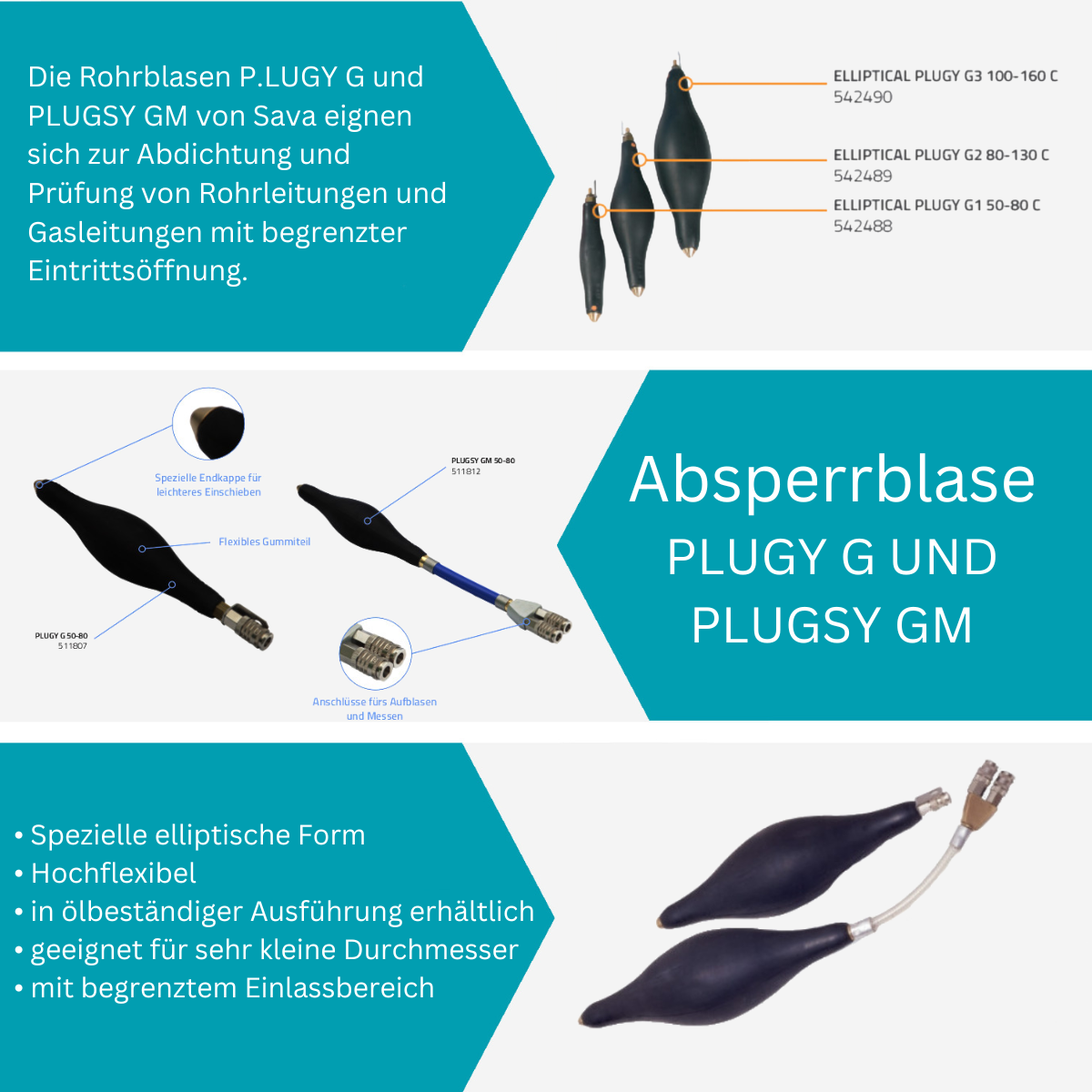

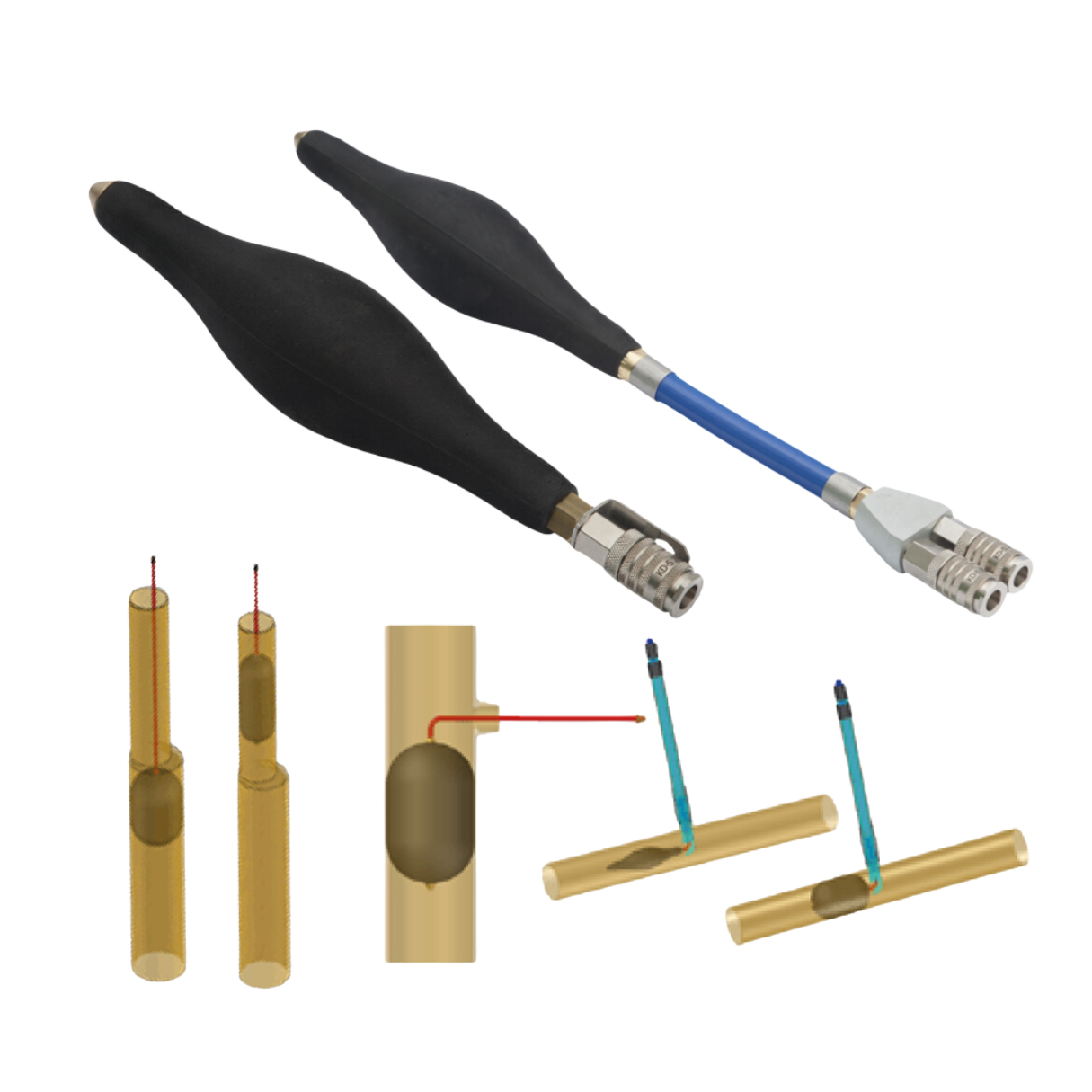

The multidimensional plugs PLUGY G and PLUGSY GM are suitable for
Sealing and testing of pipelines and gas lines with
limited entry opening. Their innovative design and flexibility
simplify handling and insertion. Elliptical gas
Through-hole bladders are available for pipe diameters from 45mm to 500mm.

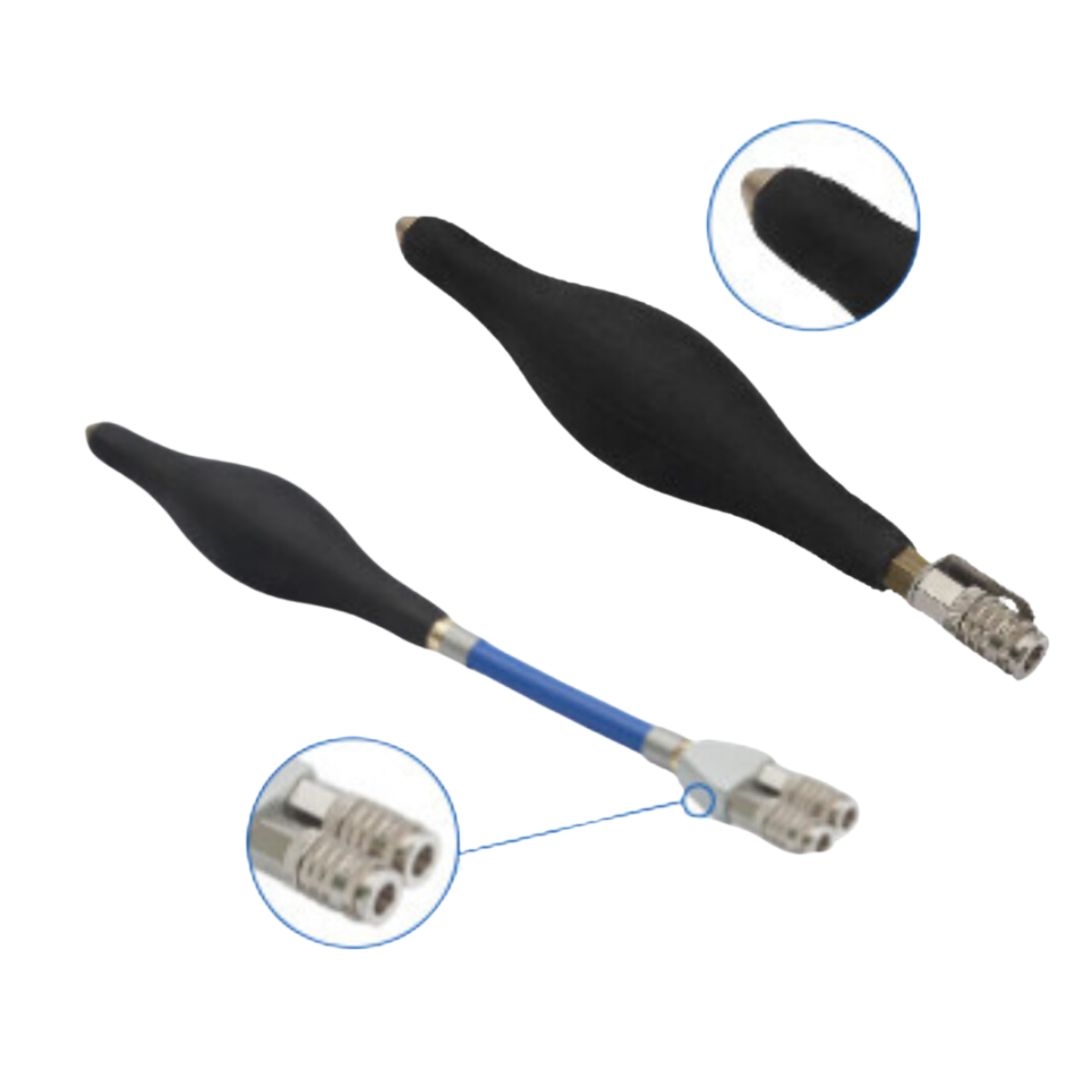

The attached steel cap and a short and flexible design facilitate
the introduction in the house connection area. A short installation length with the smallest
Diameters increase the arching capability of this bladder. Two separate
Compressed air connections with quick coupling enable quick connection
the filling and measuring devices.
