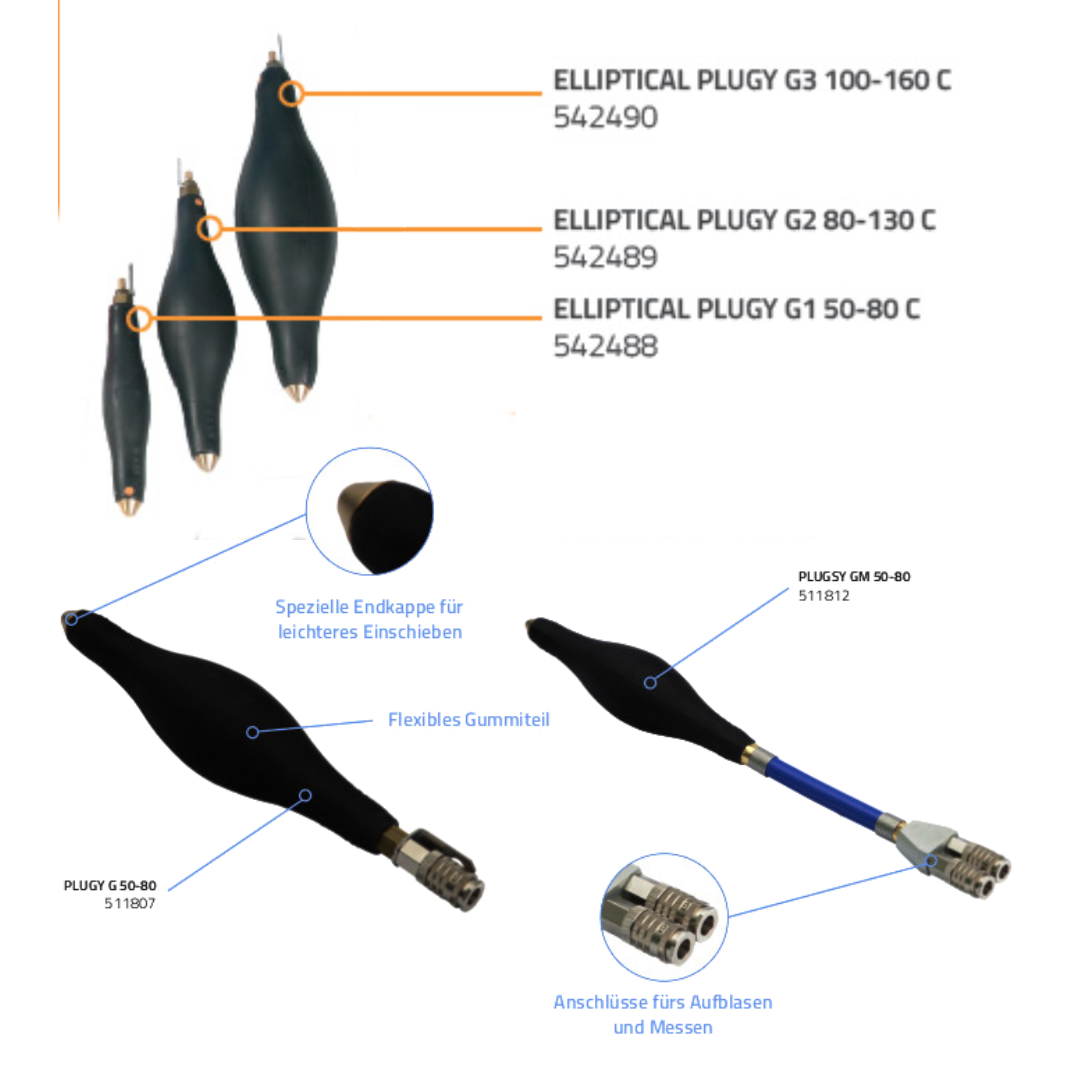

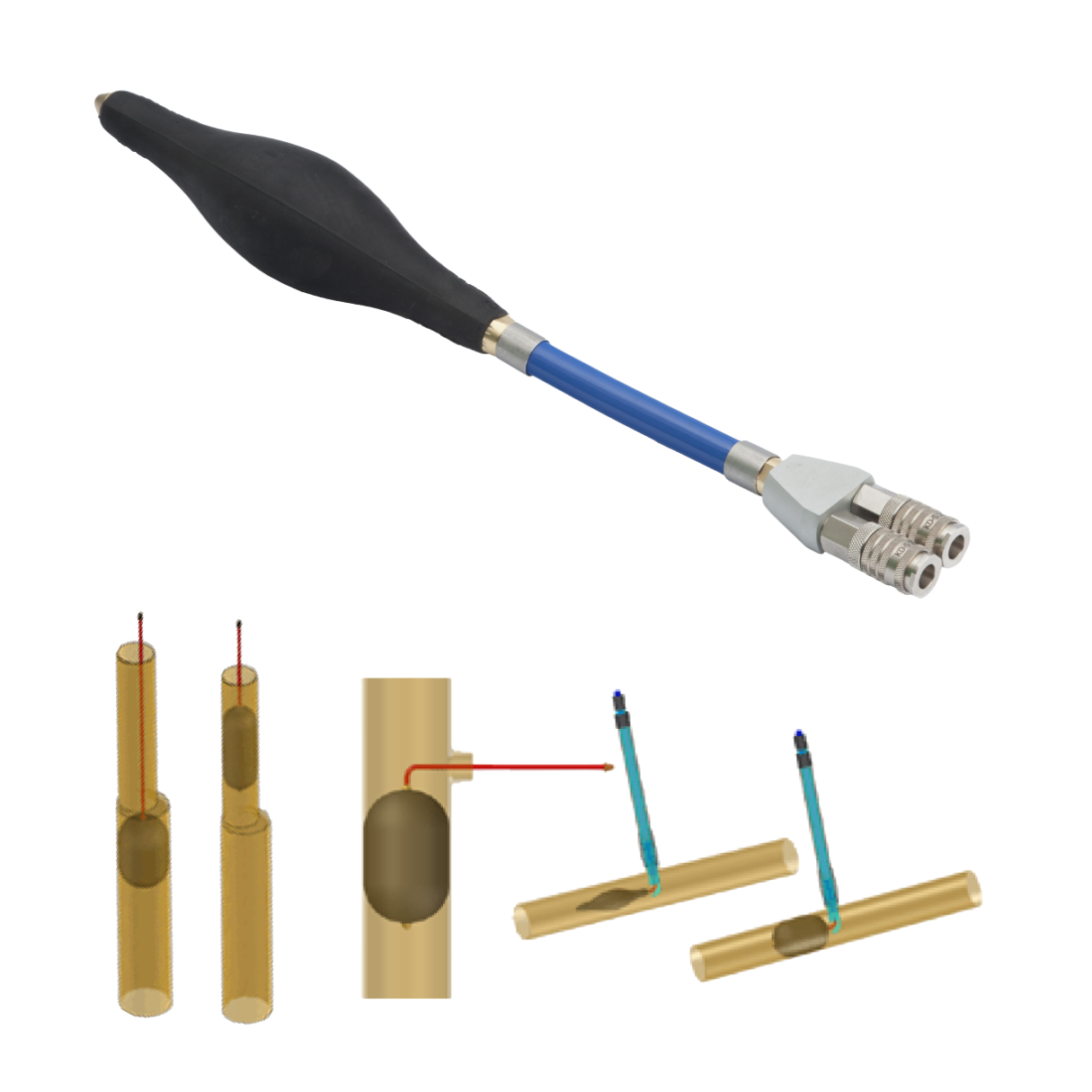

Elliptical pipe bladder Plugy G2, DN 80-130 mm

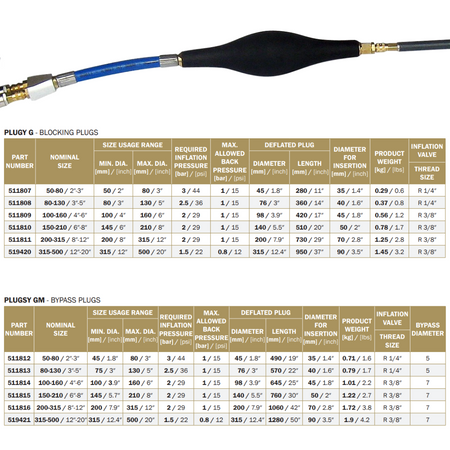

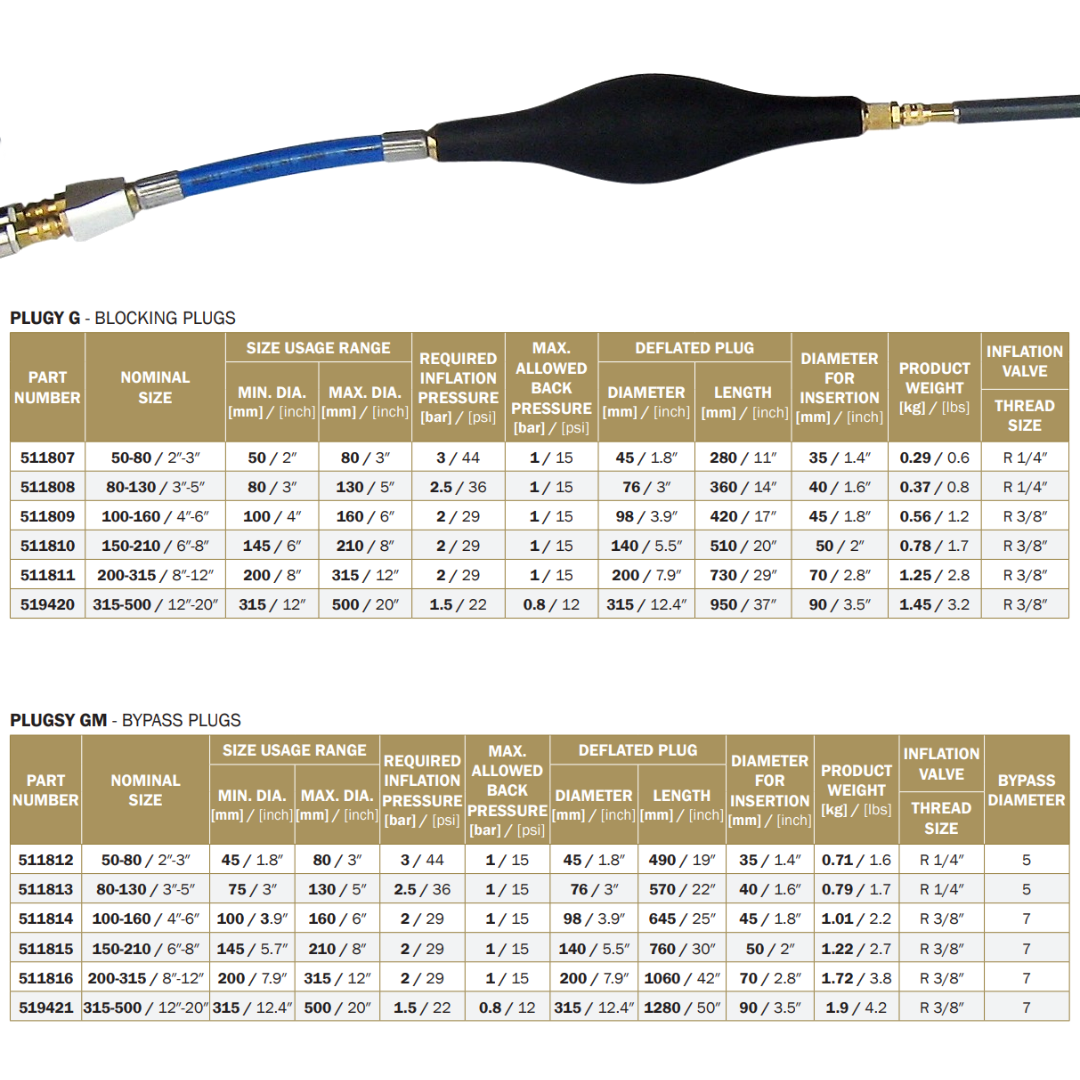

- Application range: DN 80-130 mm
- Operating pressure: 2.5 bar
- Insertion diameter: 40 mm
- Bulb diameter: 76 mm
- Length: 360 mm
- Connection: 1/4" compressed air coupling
- Weight: 0.37 kg

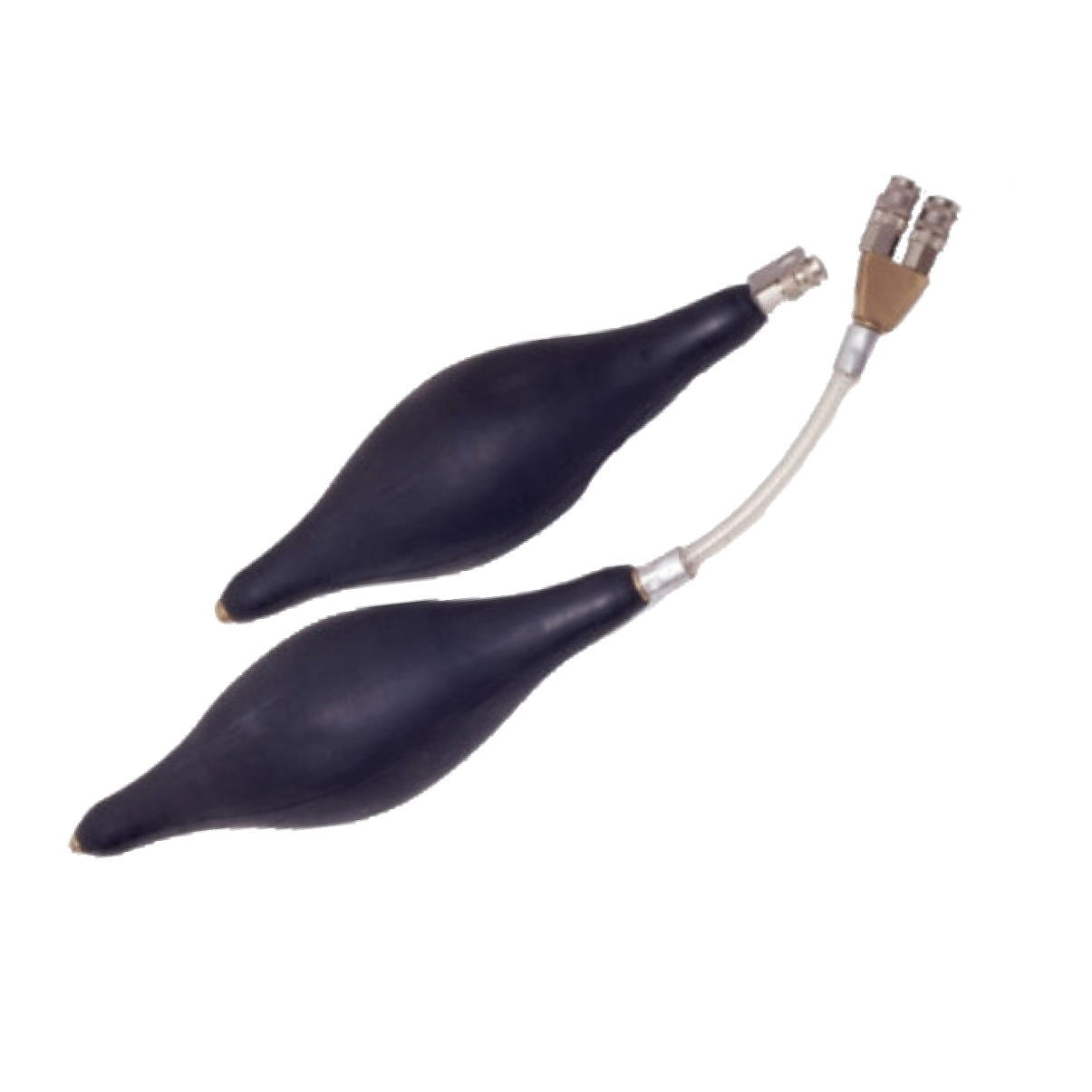

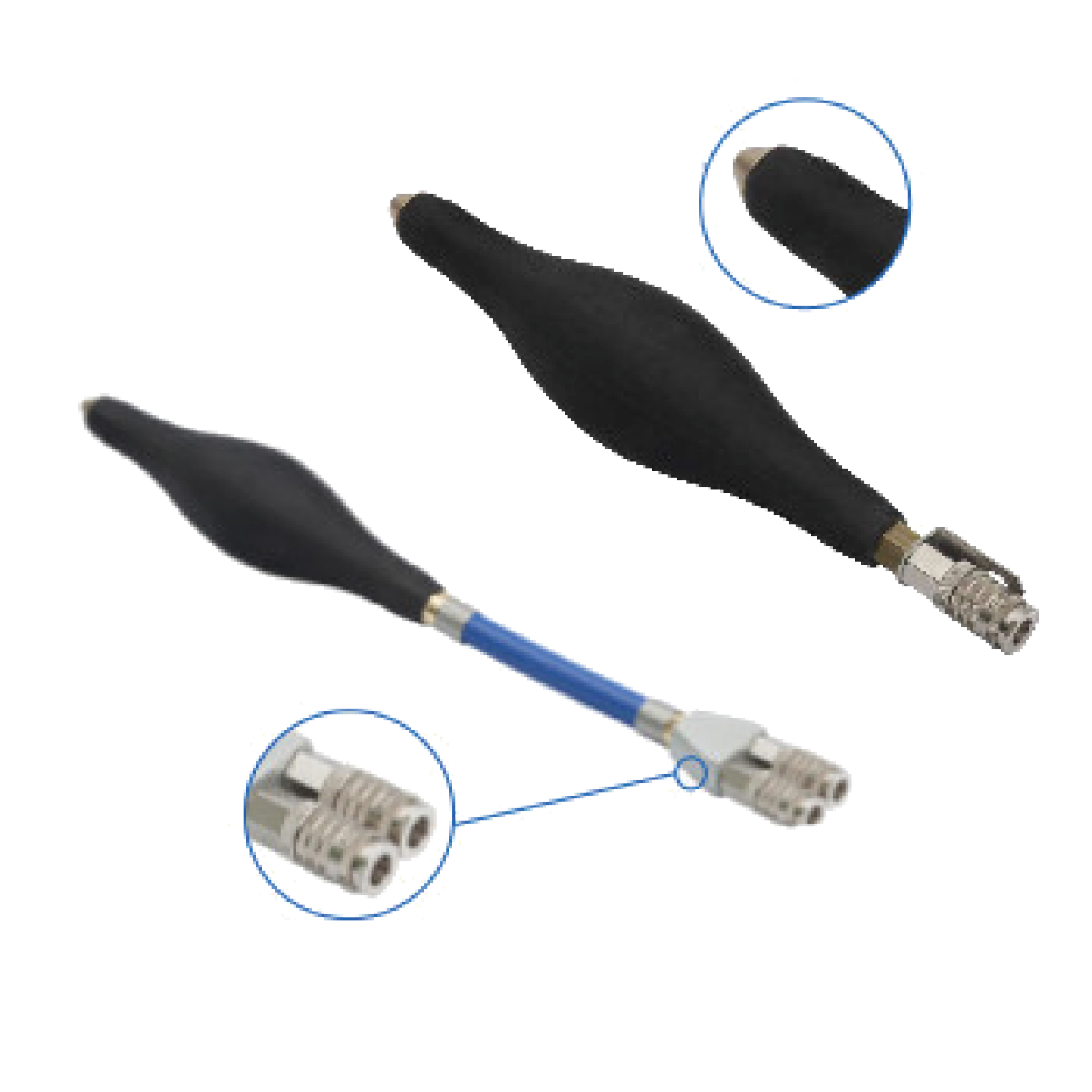

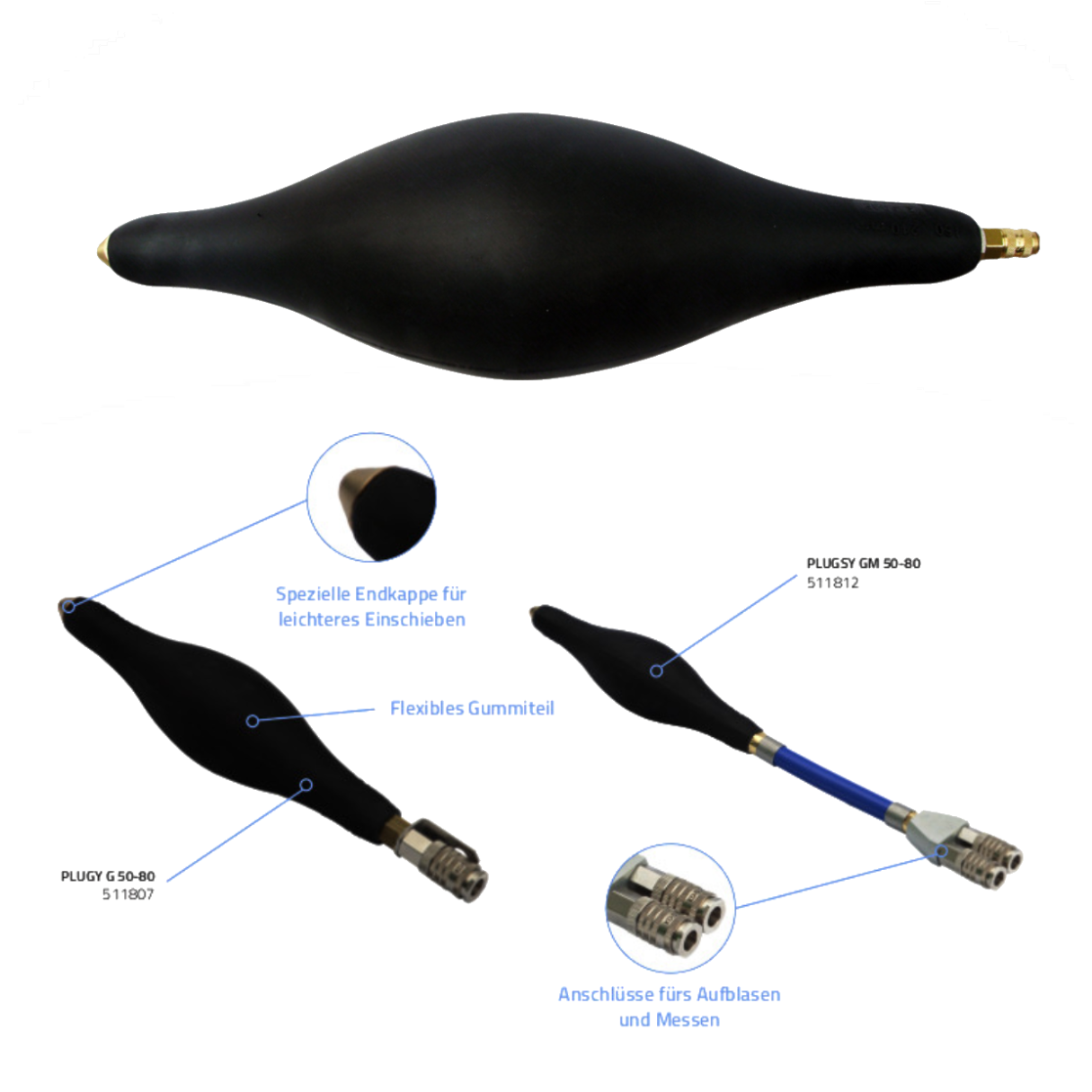

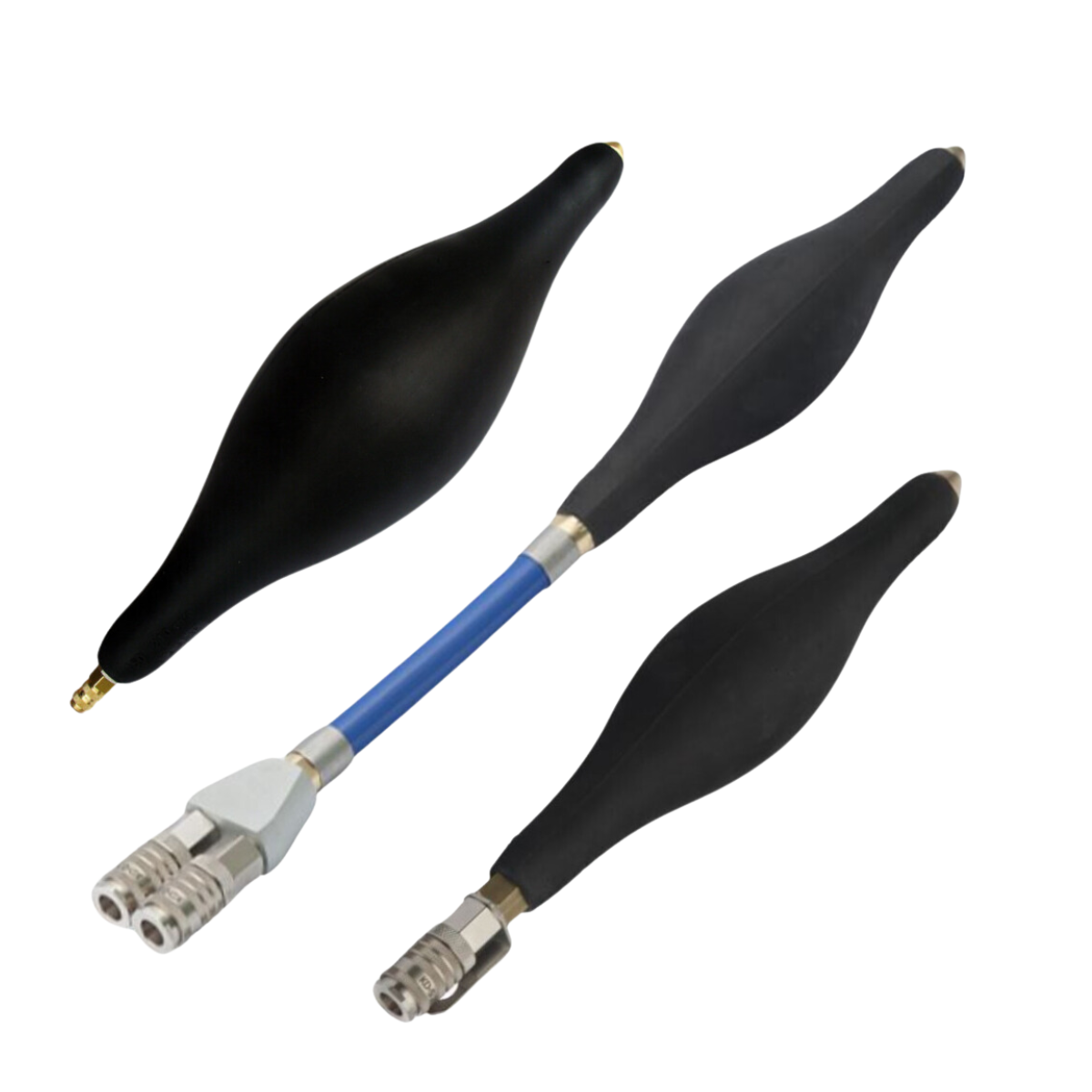

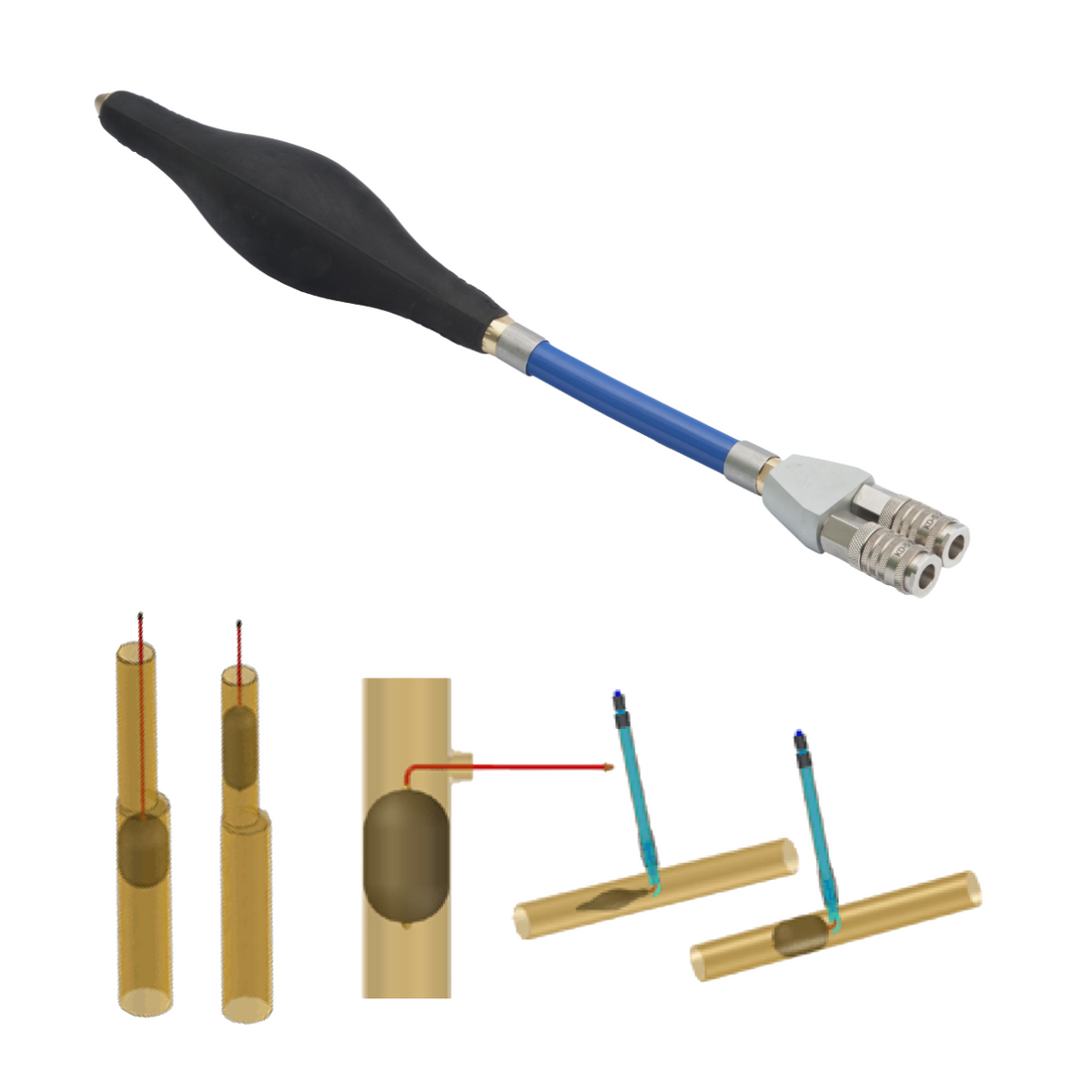

Elliptical pipe plug Plugy G2 - DN 80-130, through plug The multidimensional plugs PLUGY G and PLUGSY GM are suitable for Sealing and testing of pipelines and gas lines with limited entry opening. Their innovative design and flexibility simplify handling and insertion. Elliptical gas Through-hole bladders are available for pipe diameters from 45mm to 500mm. The attached steel cap and a short and flexible design facilitate the introduction in the house connection area. A short installation length with the smallest Diameters increase the arching capability of this bladder. Two separate Compressed air connections with quick coupling enable quick connection the filling and measuring devices. - Special elliptical shape - Suitable for very small diameters - Pipe diameters from 45mm to 500mm available - Also available in oil-resistant quality - Flexible rubber without wire reinforcement - Compressed air connection with quick coupling - Compressed air connection with quick coupling for measuring devices
