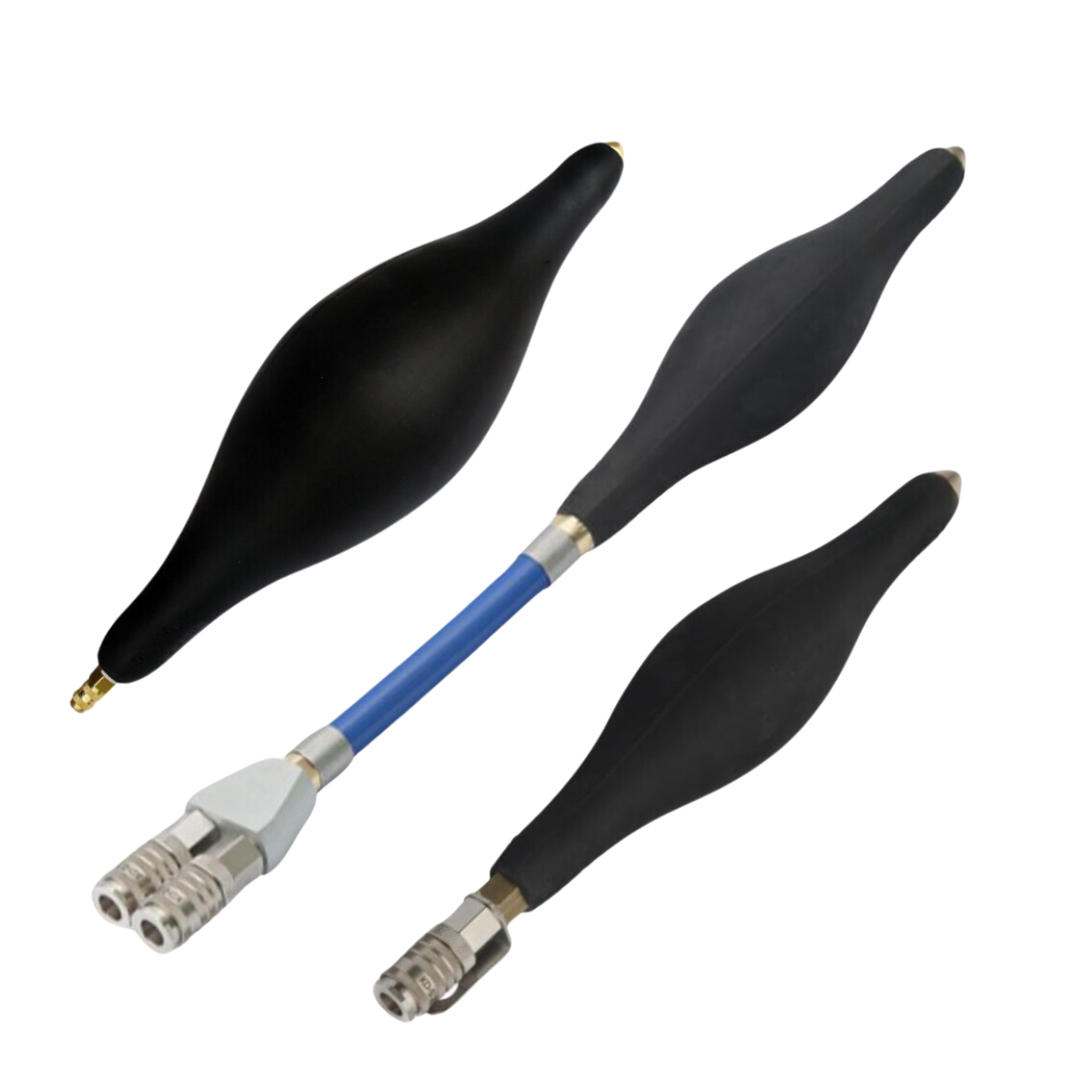

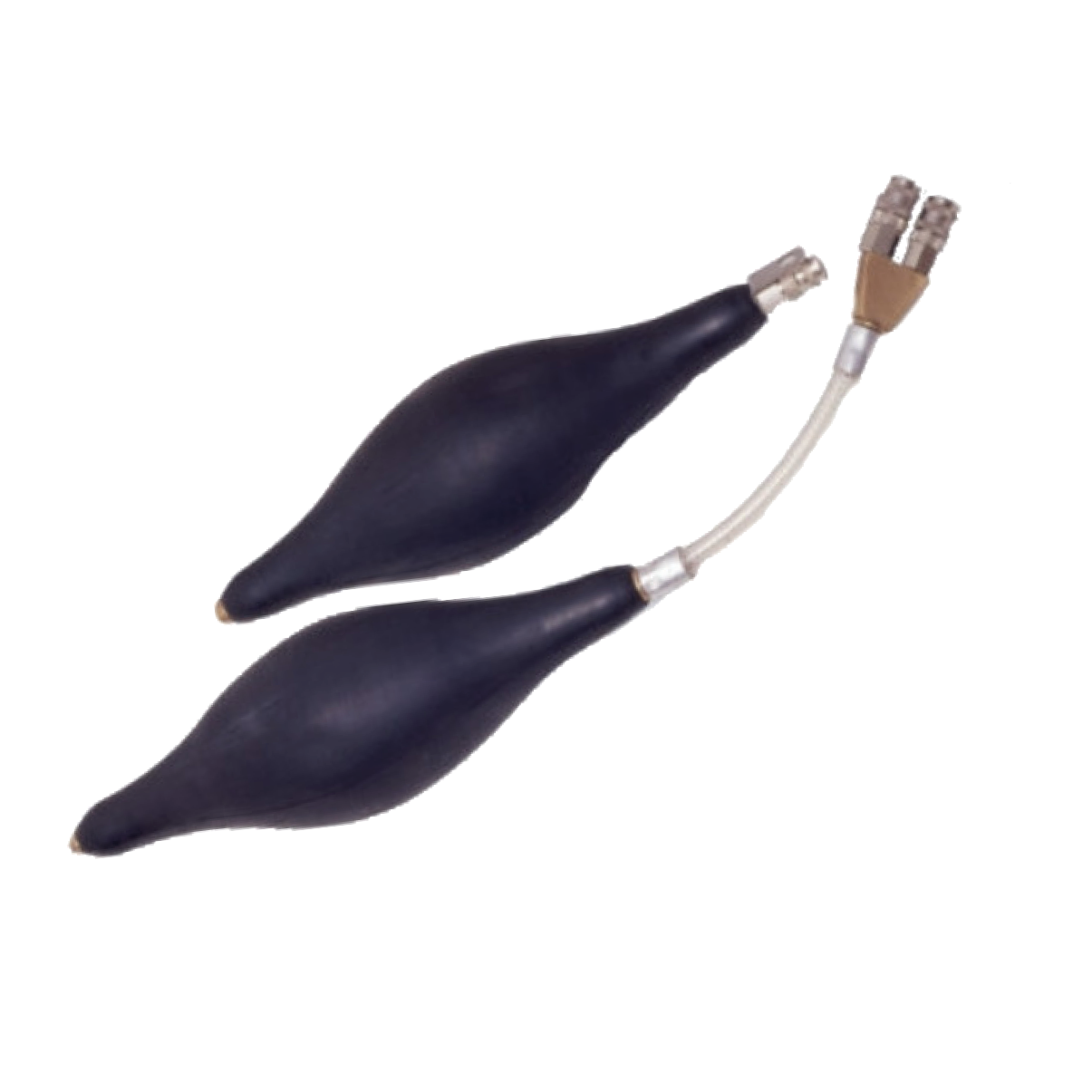

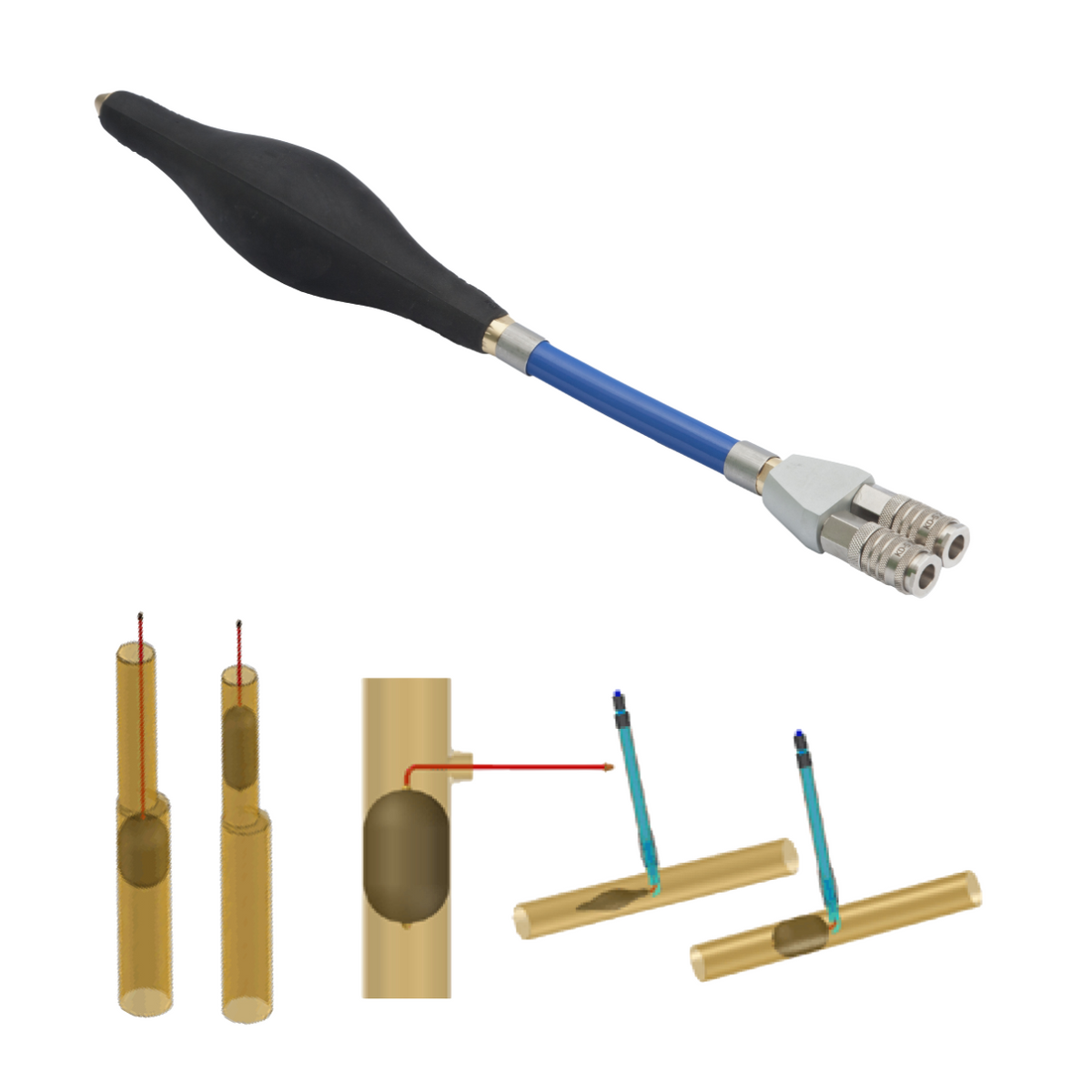

Elliptical pipe plug Plugy G3 - DN 100-160, through plug

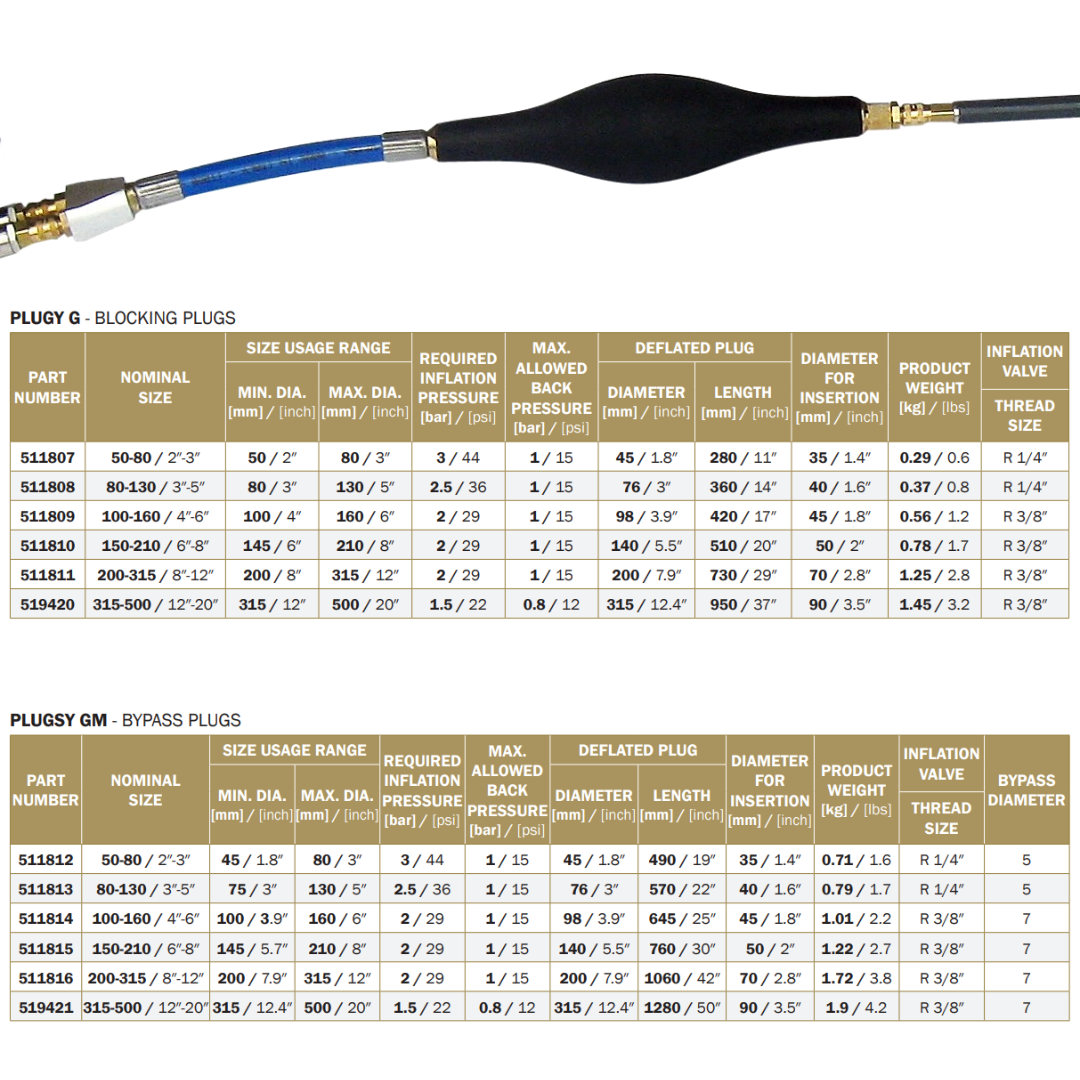

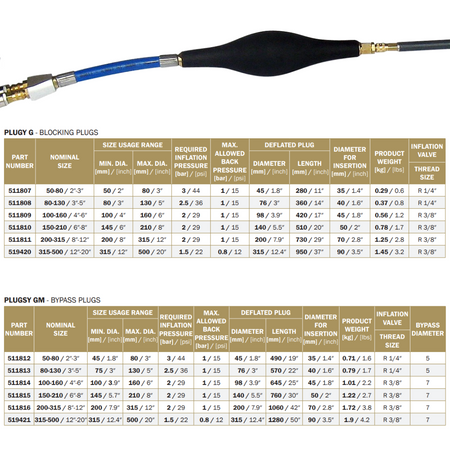

The multidimensional plugs PLUGY G and PLUGSY GM are suitable for
Sealing and testing of pipelines and gas lines with
limited entry opening. Their innovative design and flexibility
simplify handling and insertion. Elliptical gas
Through-hole bladders are available for pipe diameters from 45mm to 500mm.

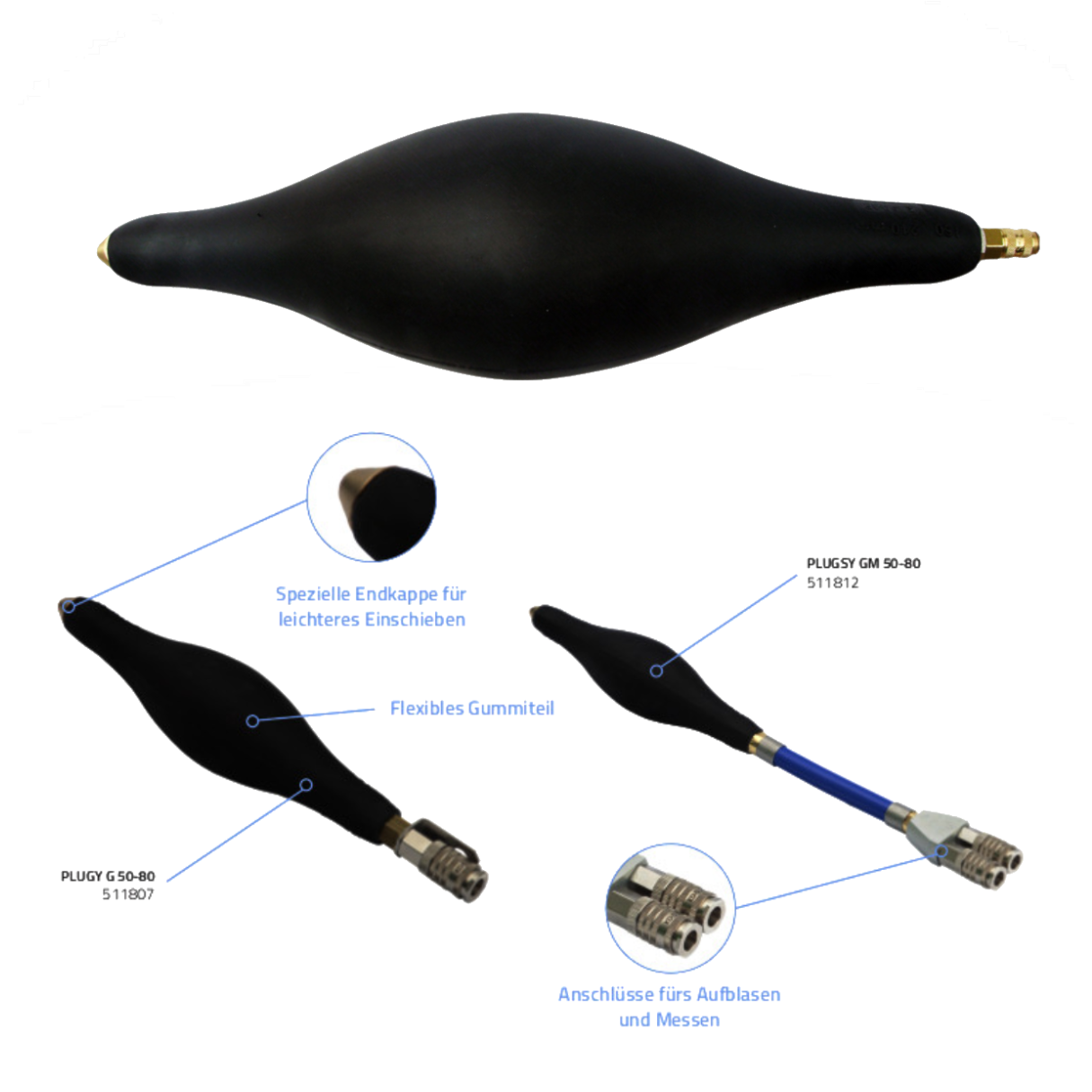

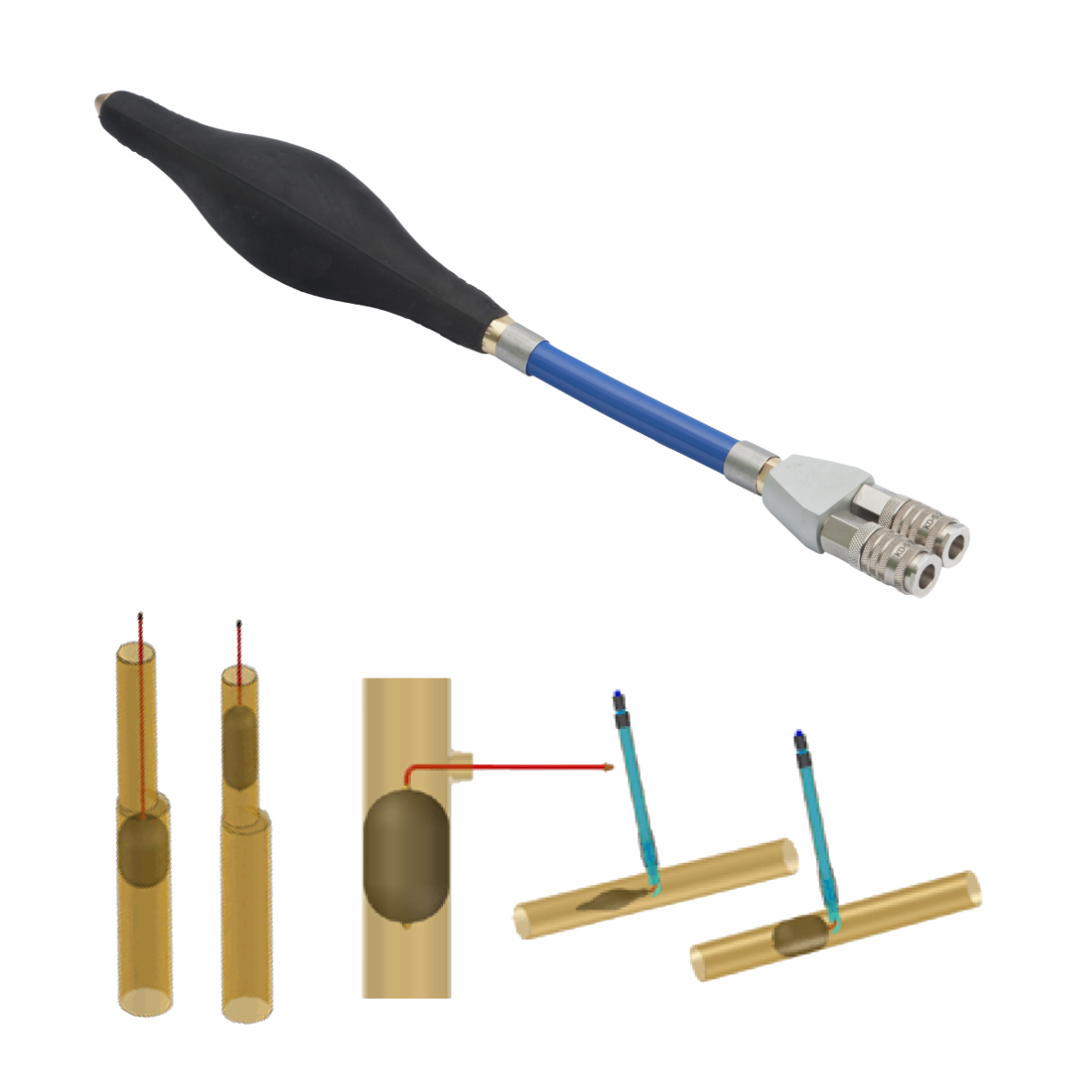

The attached steel cap and a short and flexible design facilitate
the introduction in the house connection area. A short installation length with the smallest
Diameters increase the arching capability of this bladder. Two separate

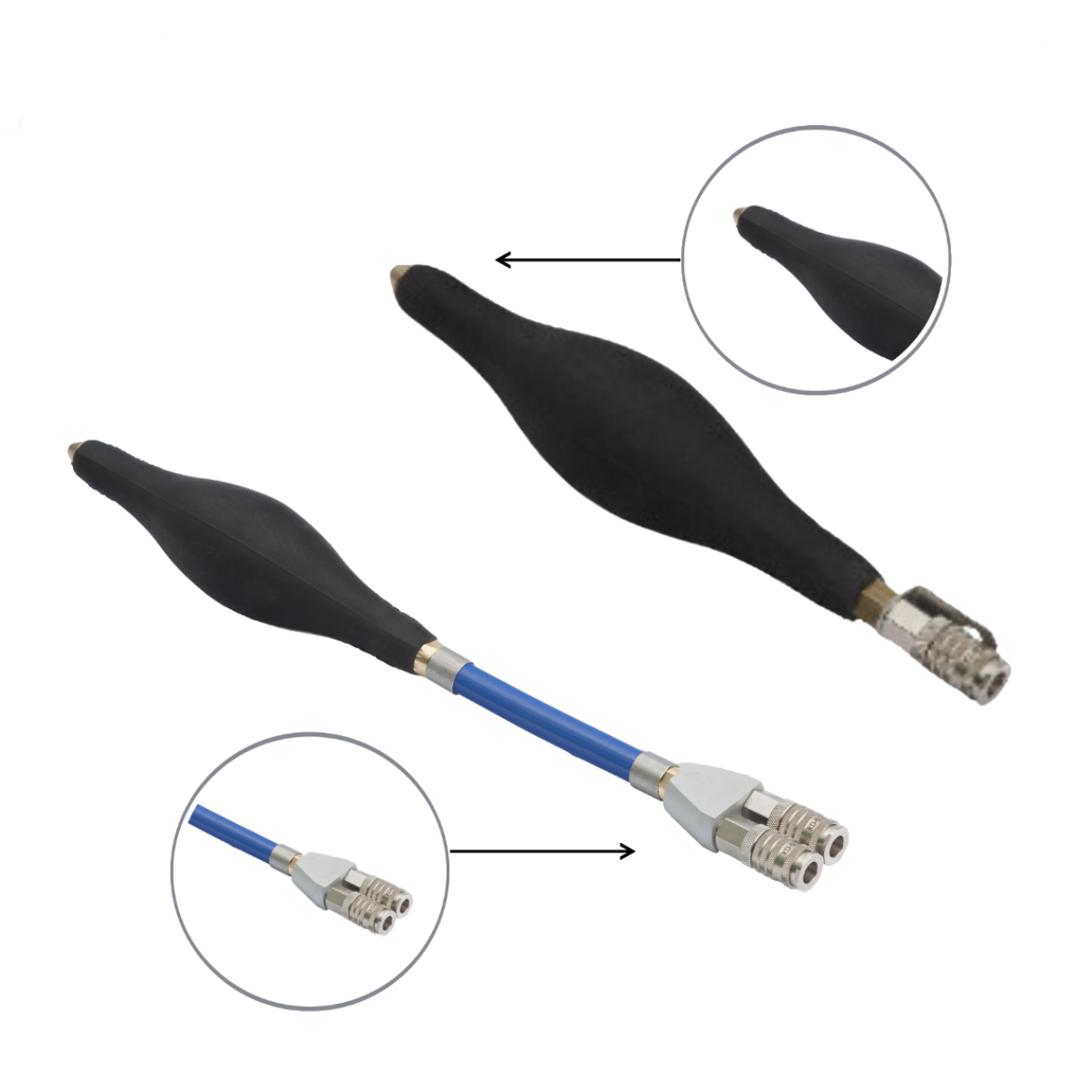

Compressed air connections with quick coupling enable quick connection
the filling and measuring devices.

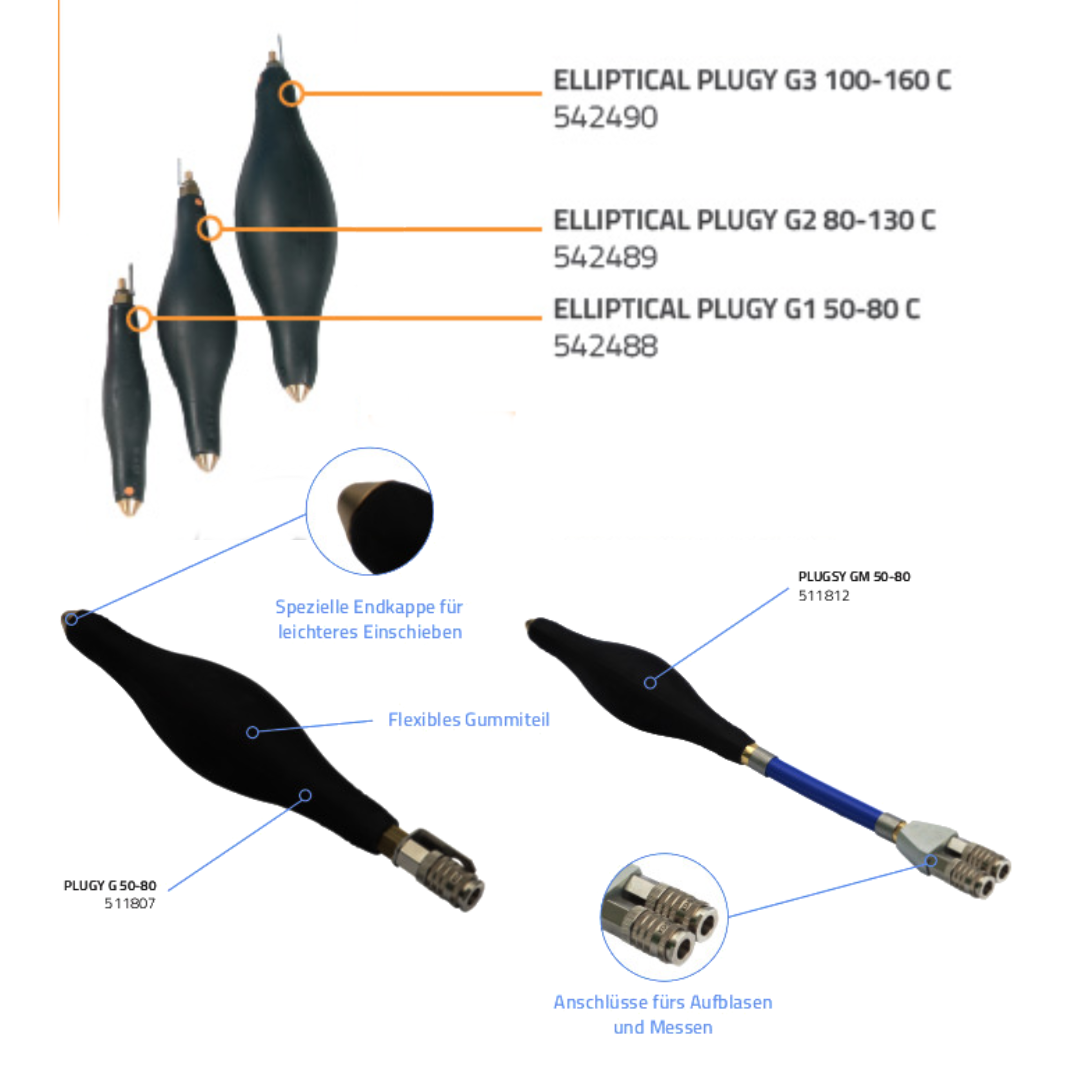

- Special elliptical shape
- Suitable for very small diameters
- Pipe diameters from 45mm to 500mm available
- Also available in oil-resistant quality
- Flexible rubber without wire reinforcement
- Compressed air connection with quick coupling
- Compressed air connection with quick coupling for measuring devices
