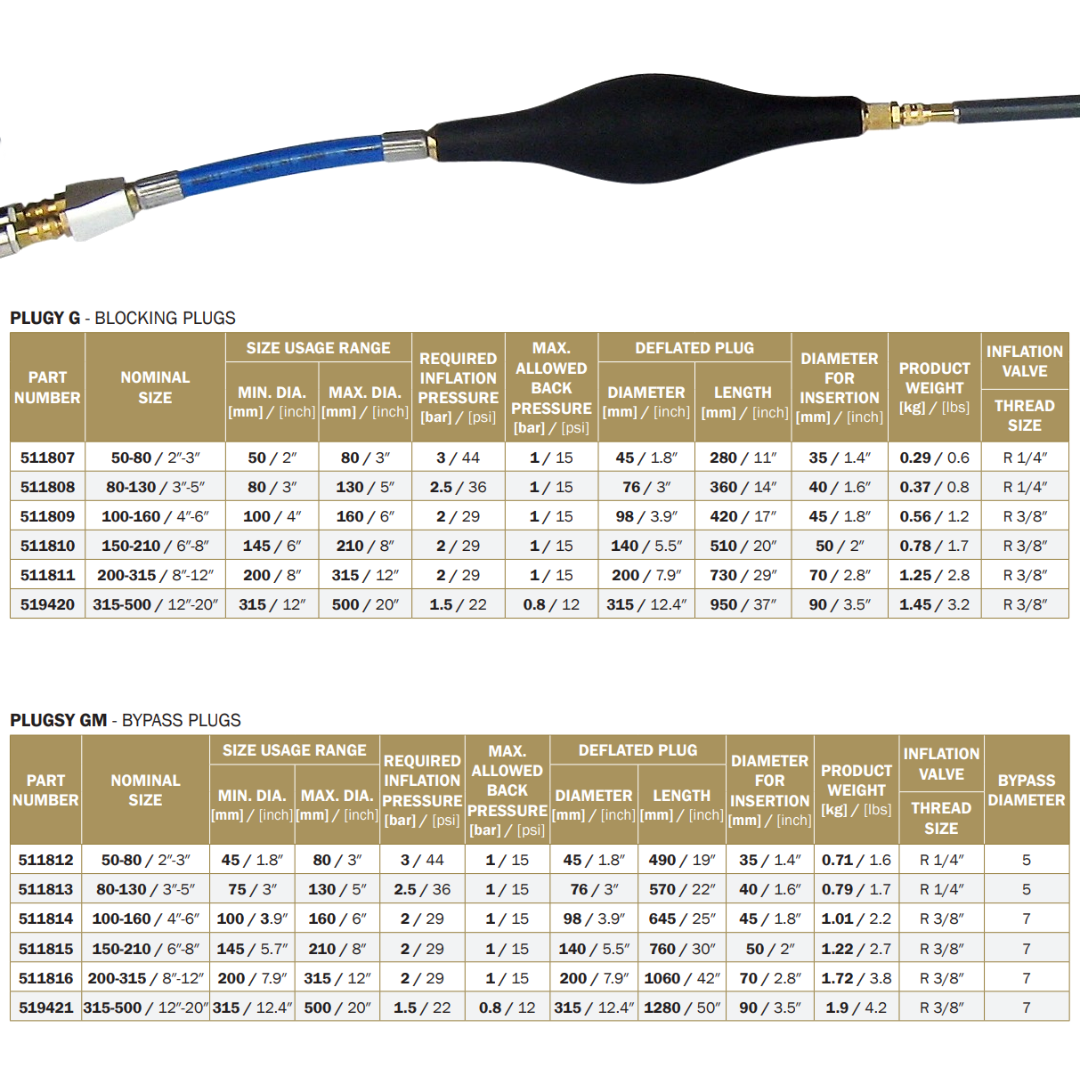

Elliptical pipe plug Plugy G5 - DN 200-315, through plug

- Application area: DN 200-315 mm
- Operating pressure: 2 bar
- Diameter: 200 mm
- Length: 730 mm
- Filling valve: R ?"
- Weight: 1.25 kg

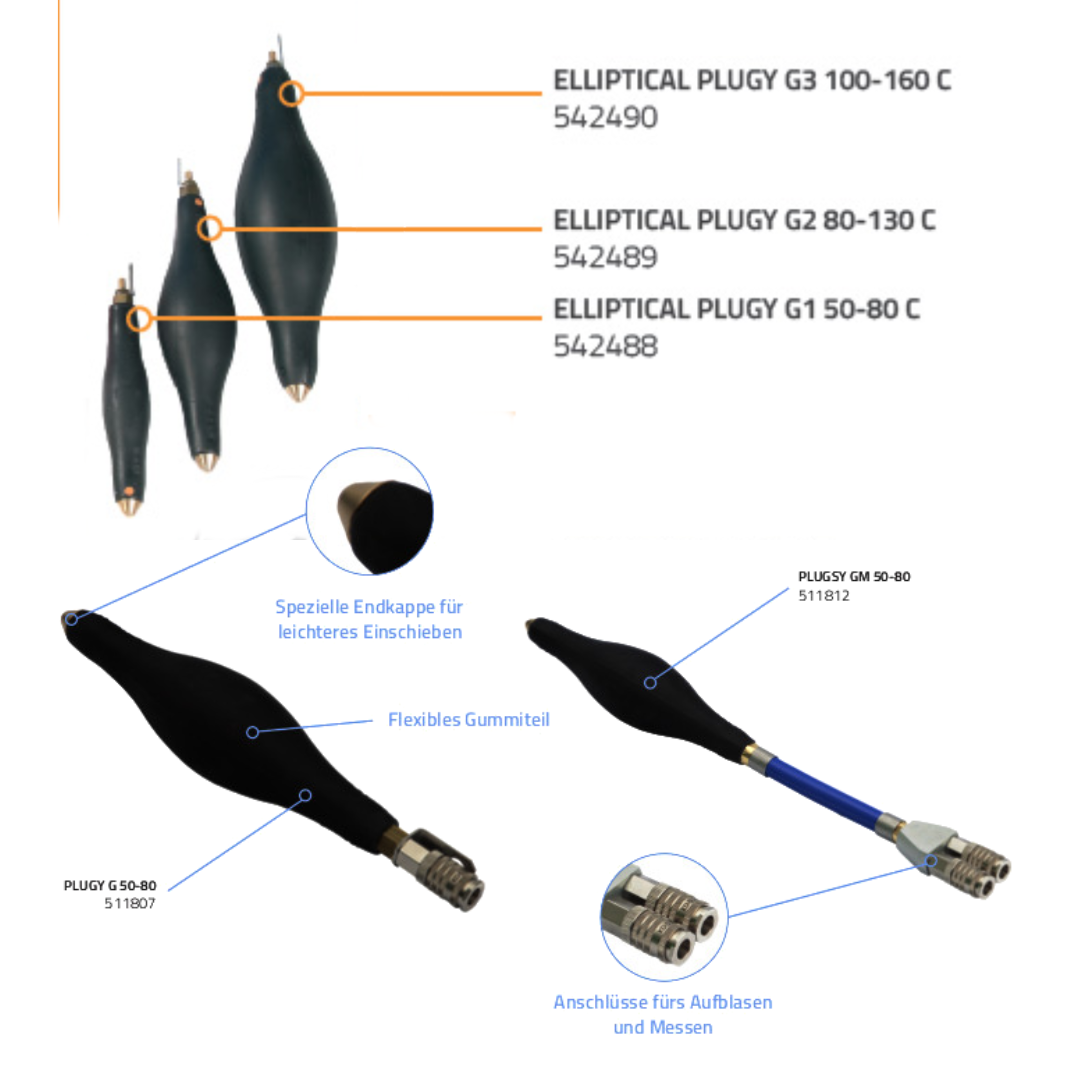

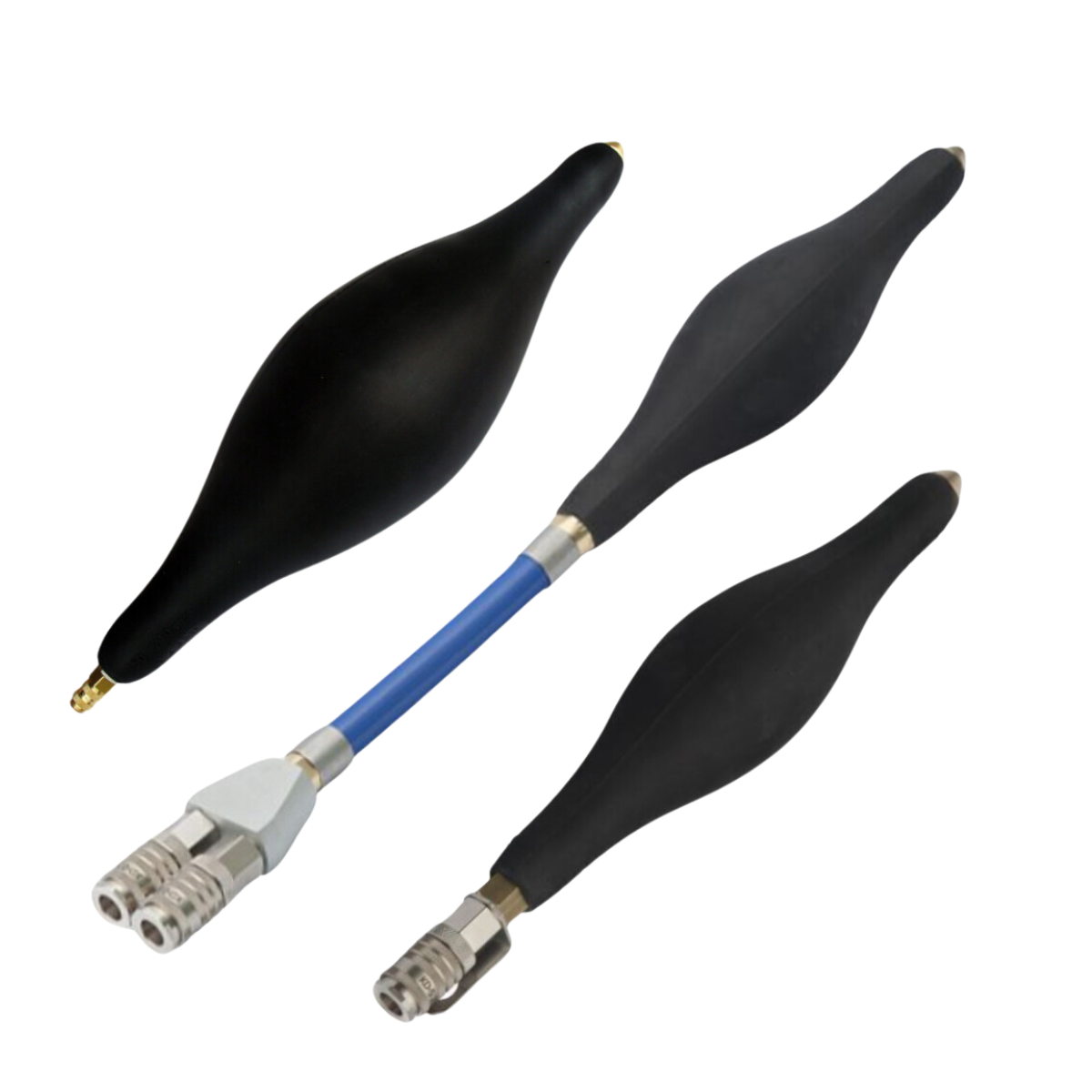

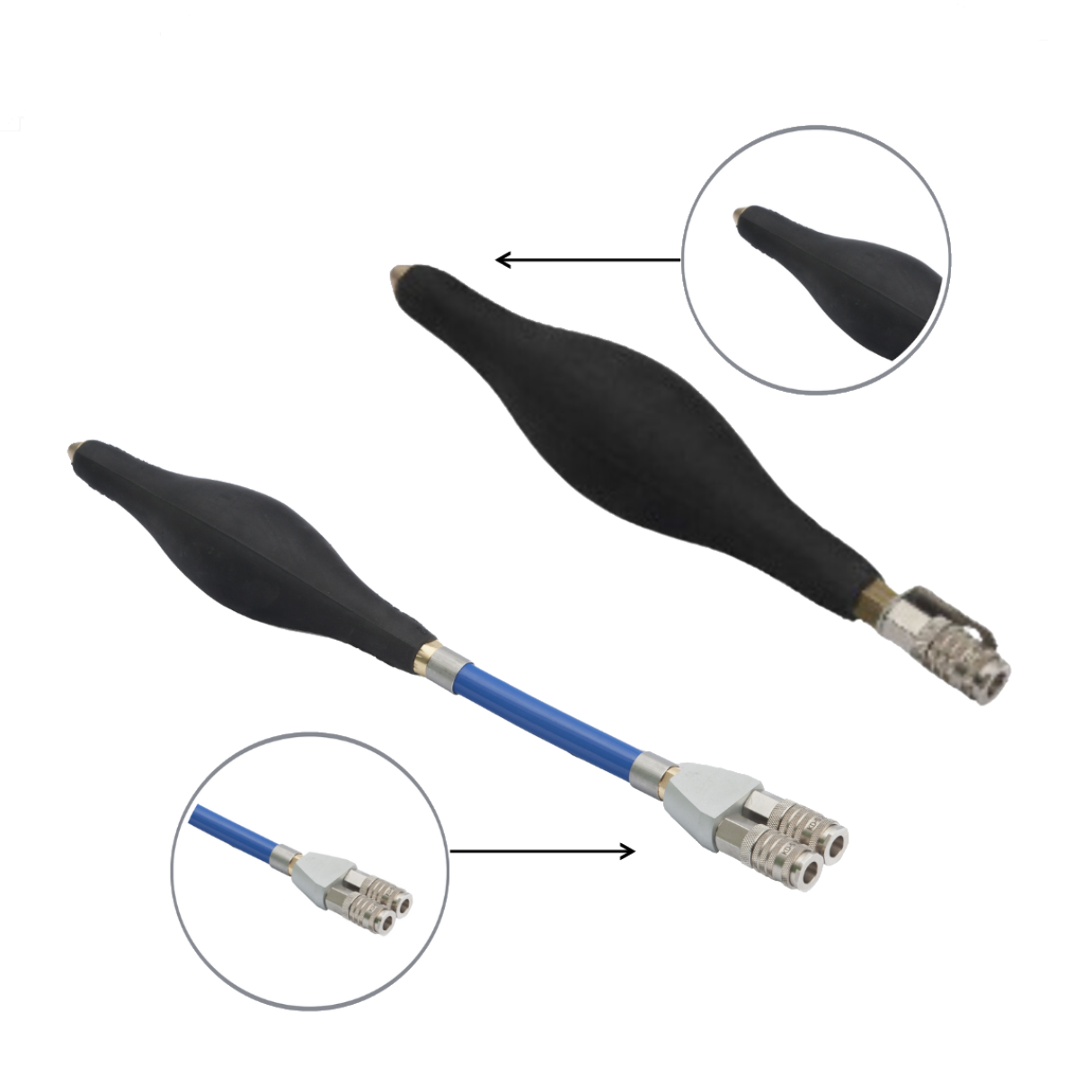

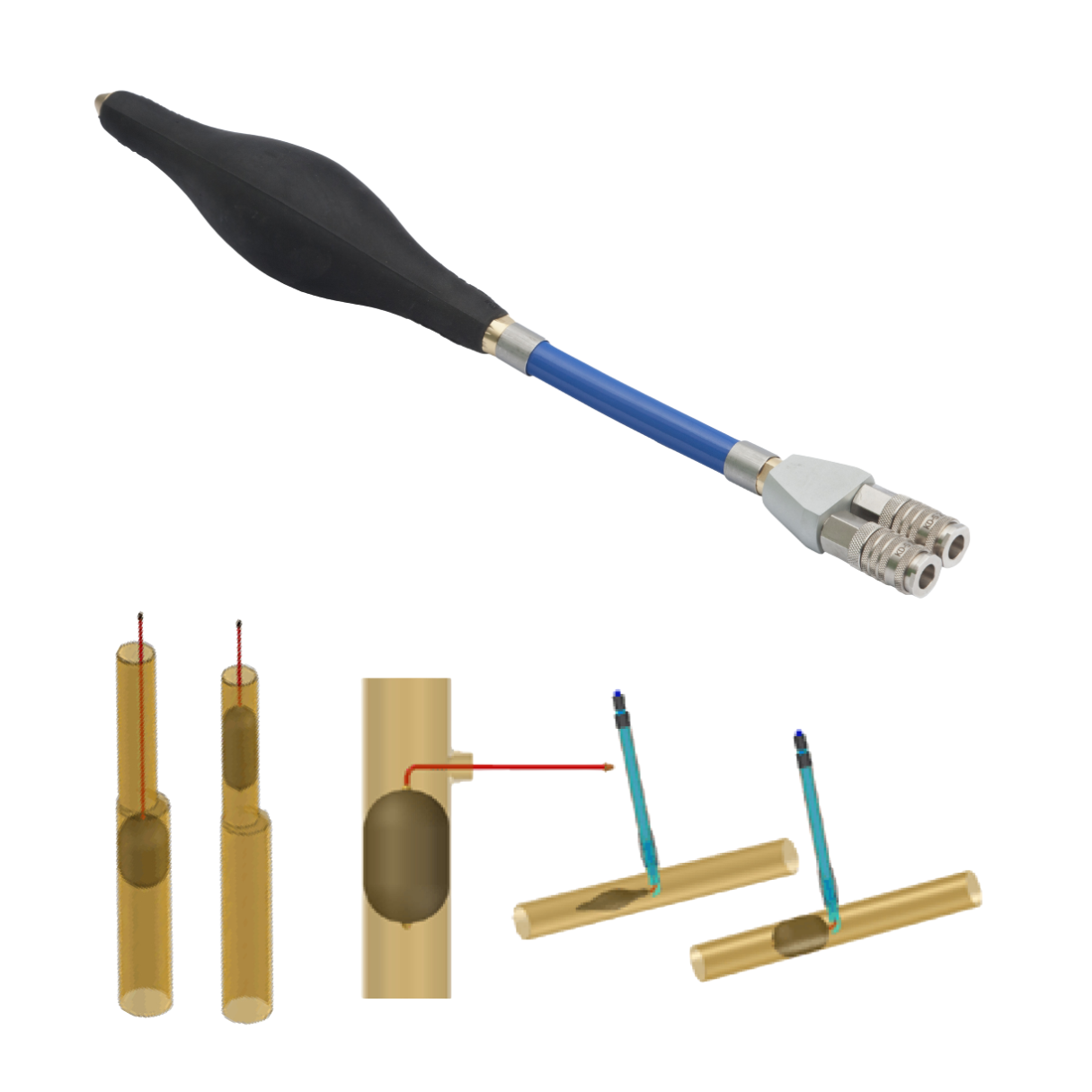

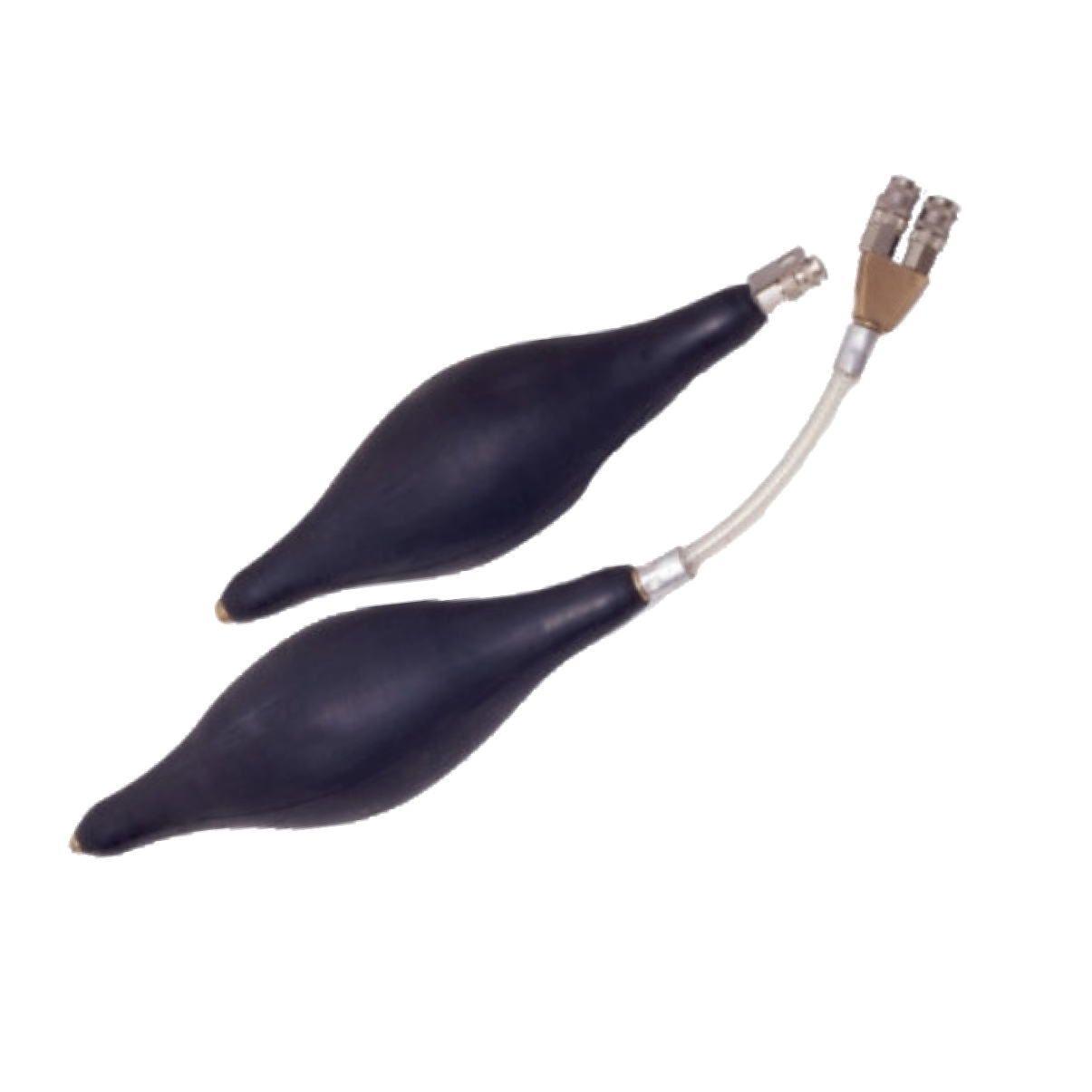

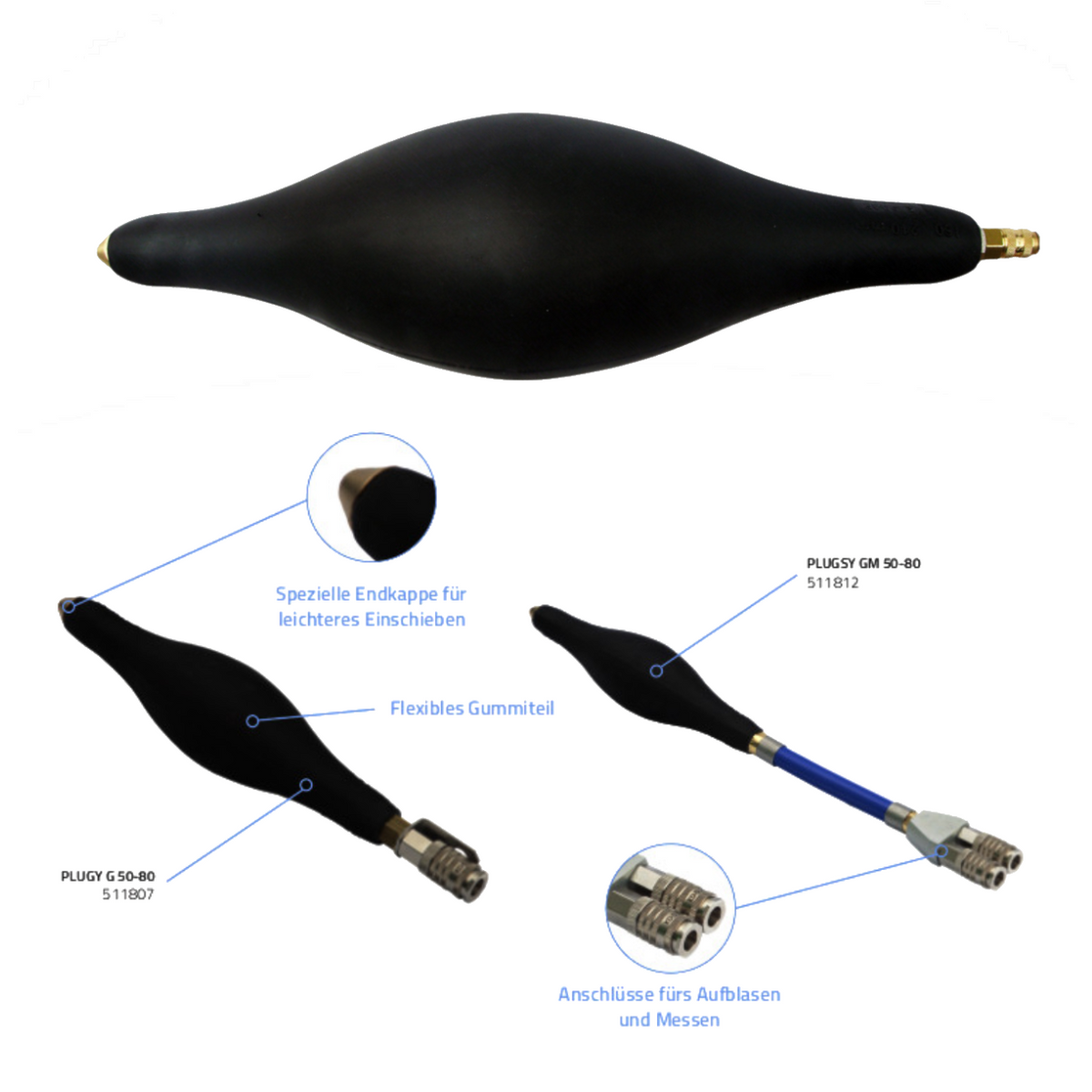

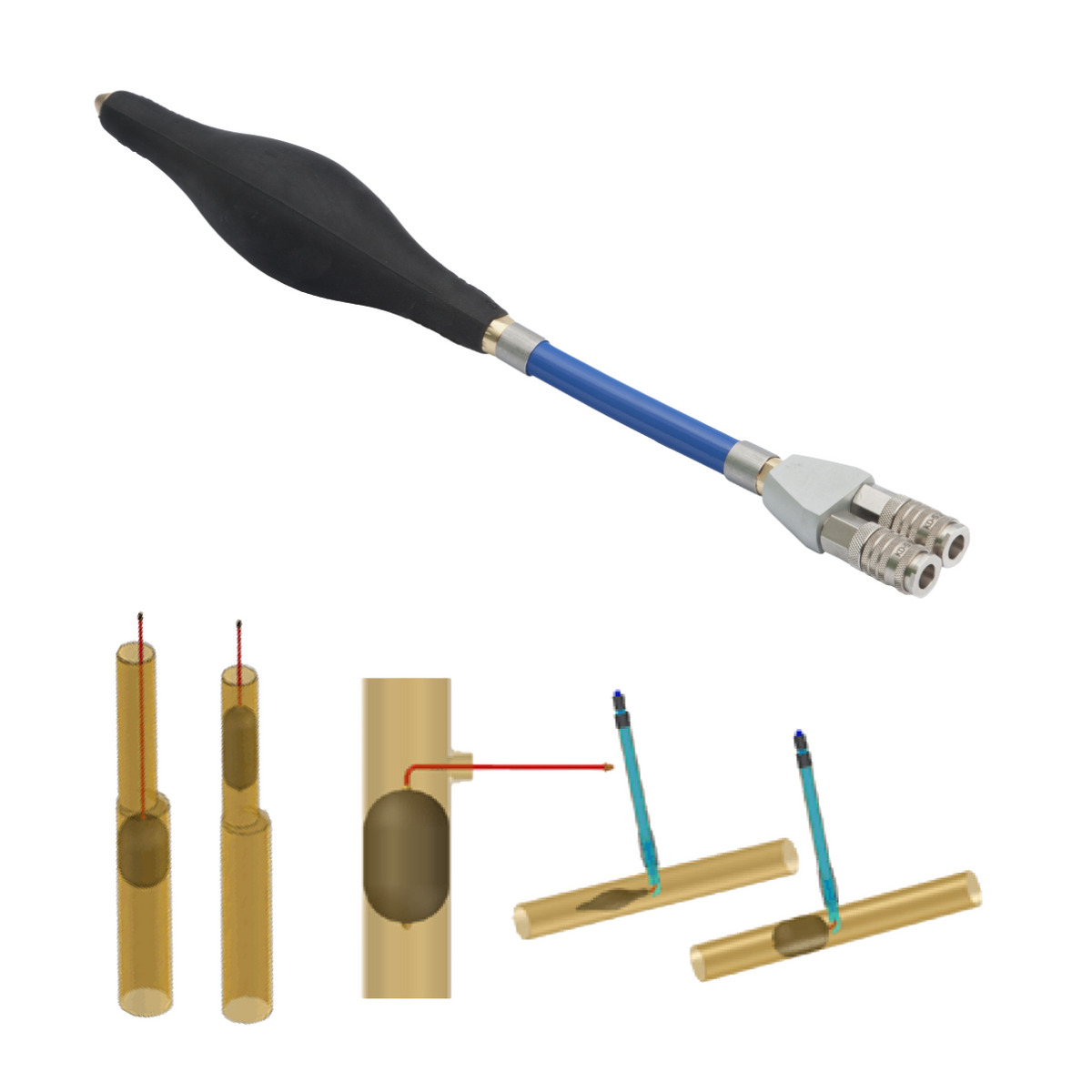

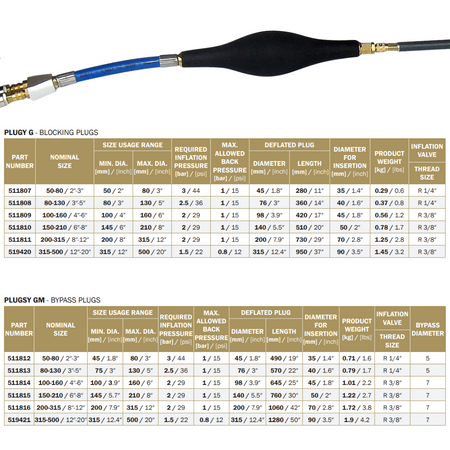

Elliptical pipe plug Plugy G5 - DN 200-315, through plug The multidimensional plugs PLUGY G and PLUGSY GM are suitable for Sealing and testing of pipelines and gas lines with limited entry opening. Their innovative design and flexibility simplify handling and insertion. Elliptical gas Through-hole bladders are available for pipe diameters from 45mm to 500mm. The attached steel cap and a short and flexible design facilitate the introduction in the house connection area. A short installation length with the smallest Diameters increase the arching capability of this bladder. Two separate Compressed air connections with quick coupling enable quick connection the filling and measuring devices. - Special elliptical shape - Suitable for very small diameters - Pipe diameters from 45mm to 500mm available - Also available in oil-resistant quality - Flexible rubber without wire reinforcement - Compressed air connection with quick coupling - Compressed air connection with quick coupling for measuring devices
