Elliptical pipe bladder Plugy G6, DN 315-500 mm

- Application range: DN 315-500 mm
- Operating pressure: 1.5 bar
- Insertion diameter: 90 mm
- Bladder diameter: 315 mm
- Length: 950 mm
- Connection: 3/8" compressed air coupling
- Weight: 1.45 kg

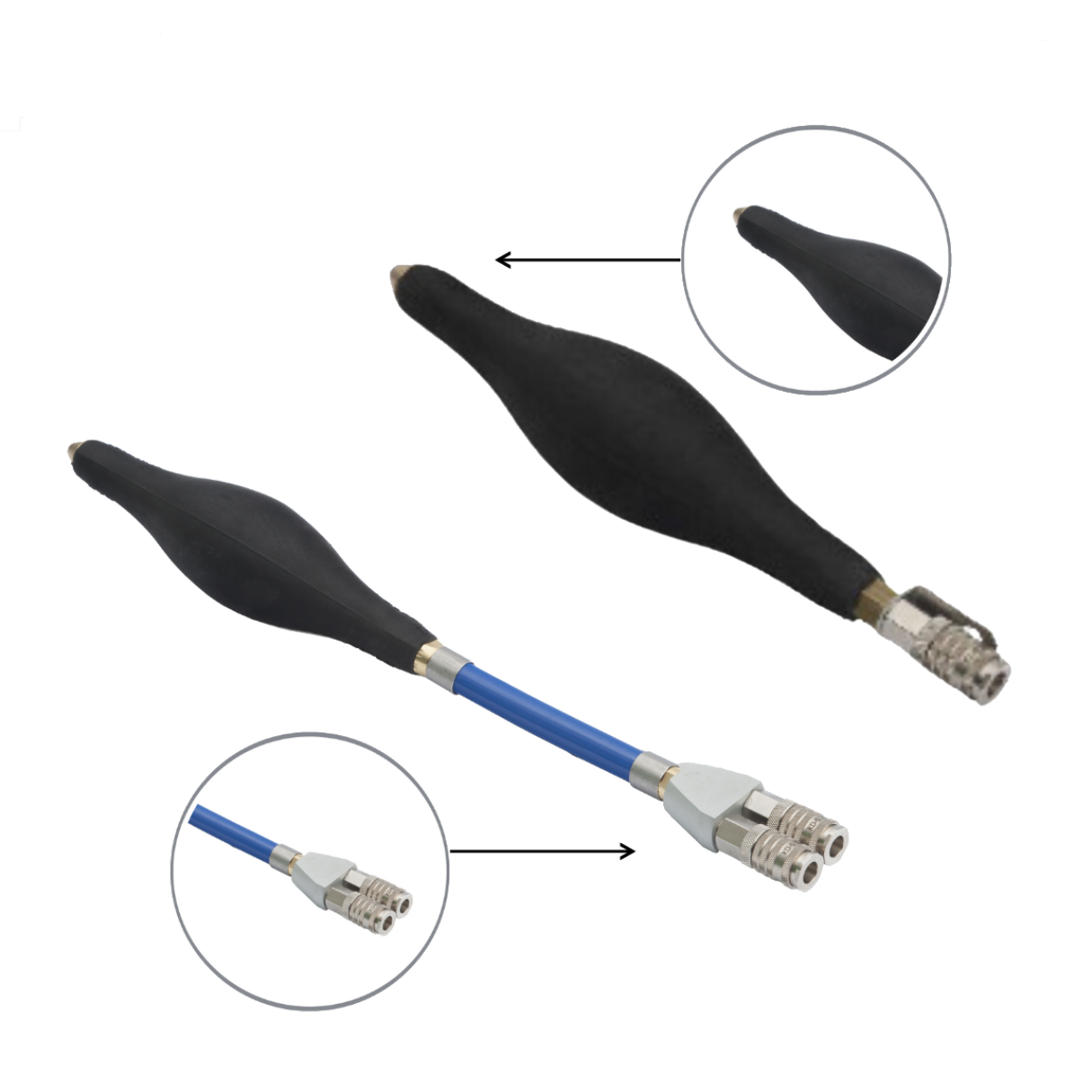

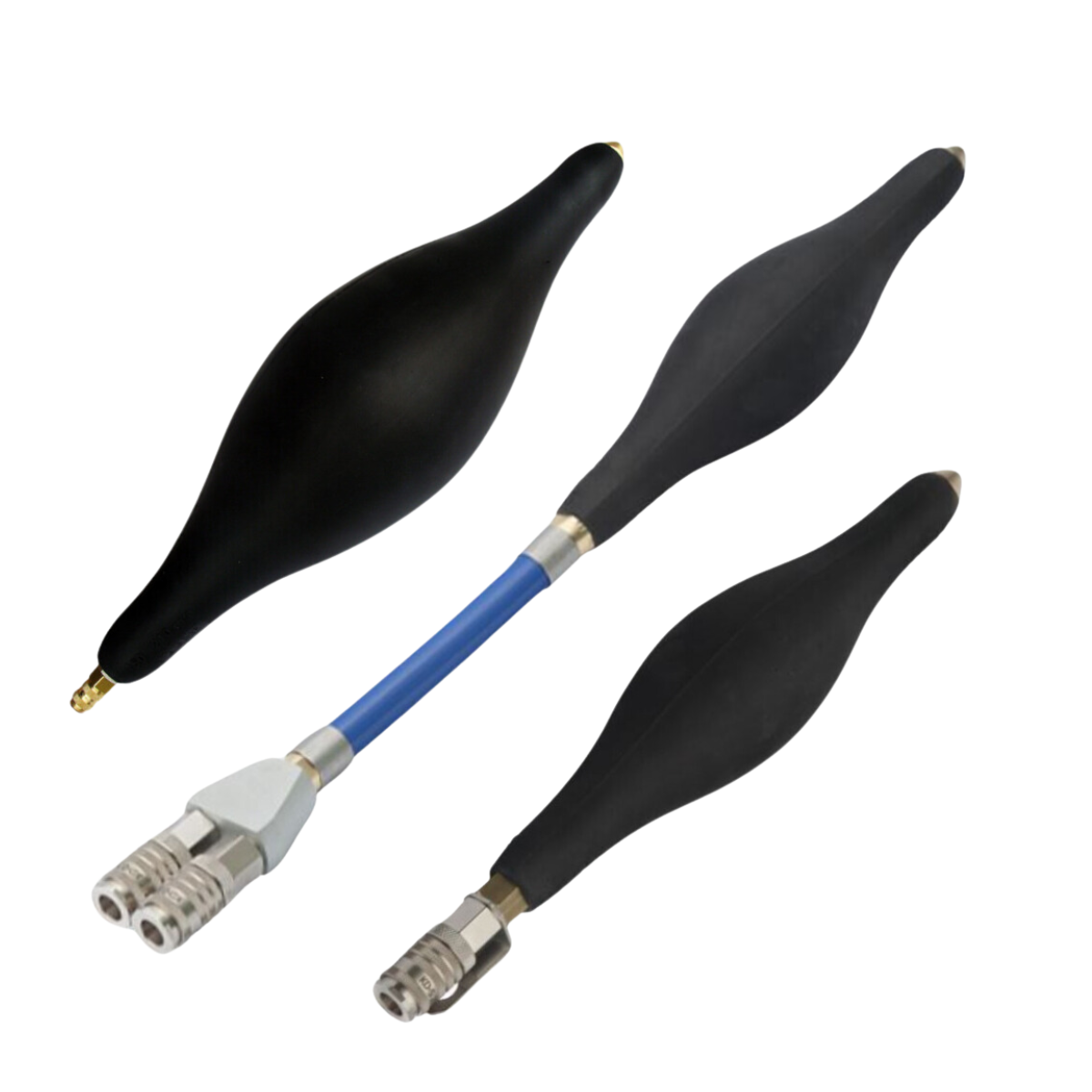

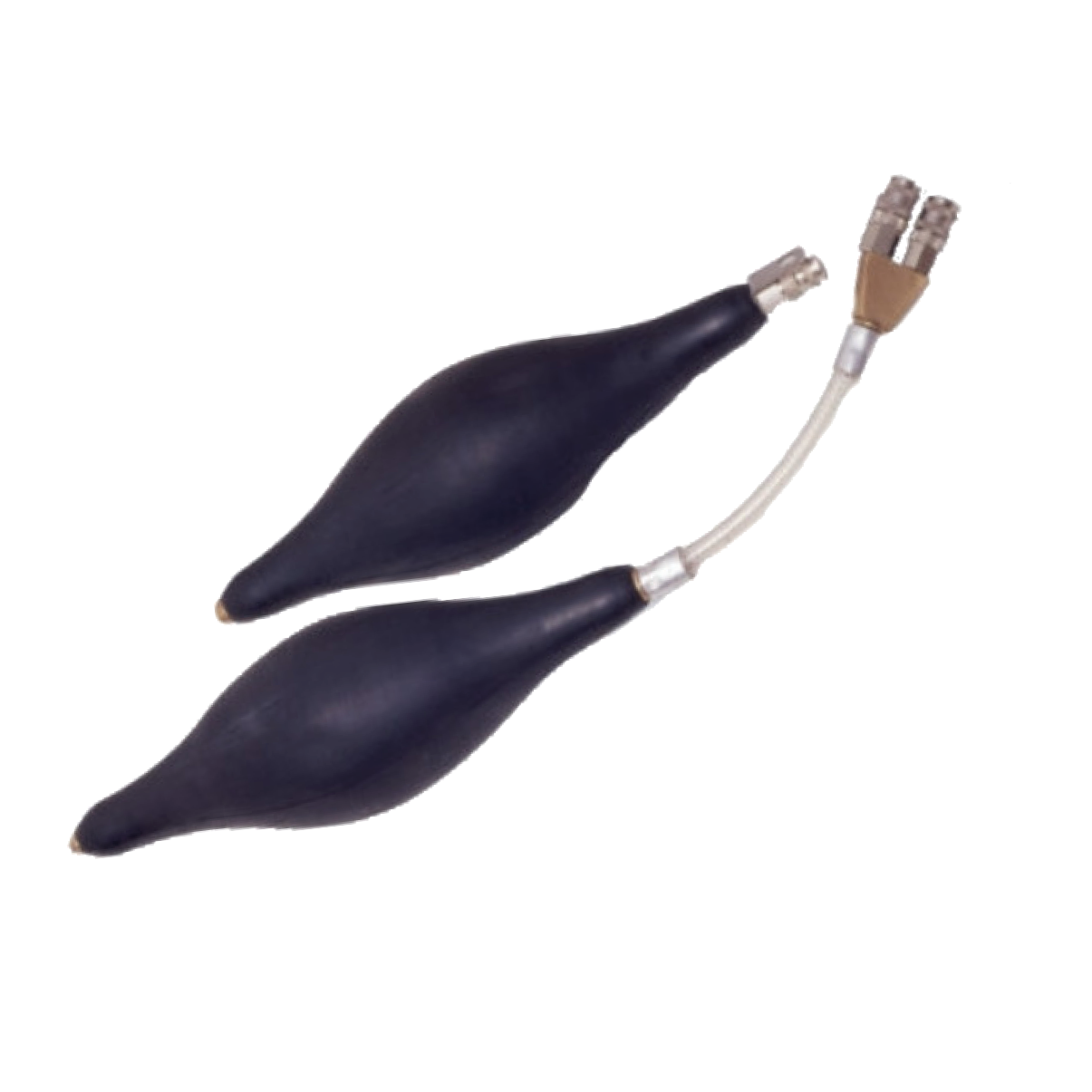

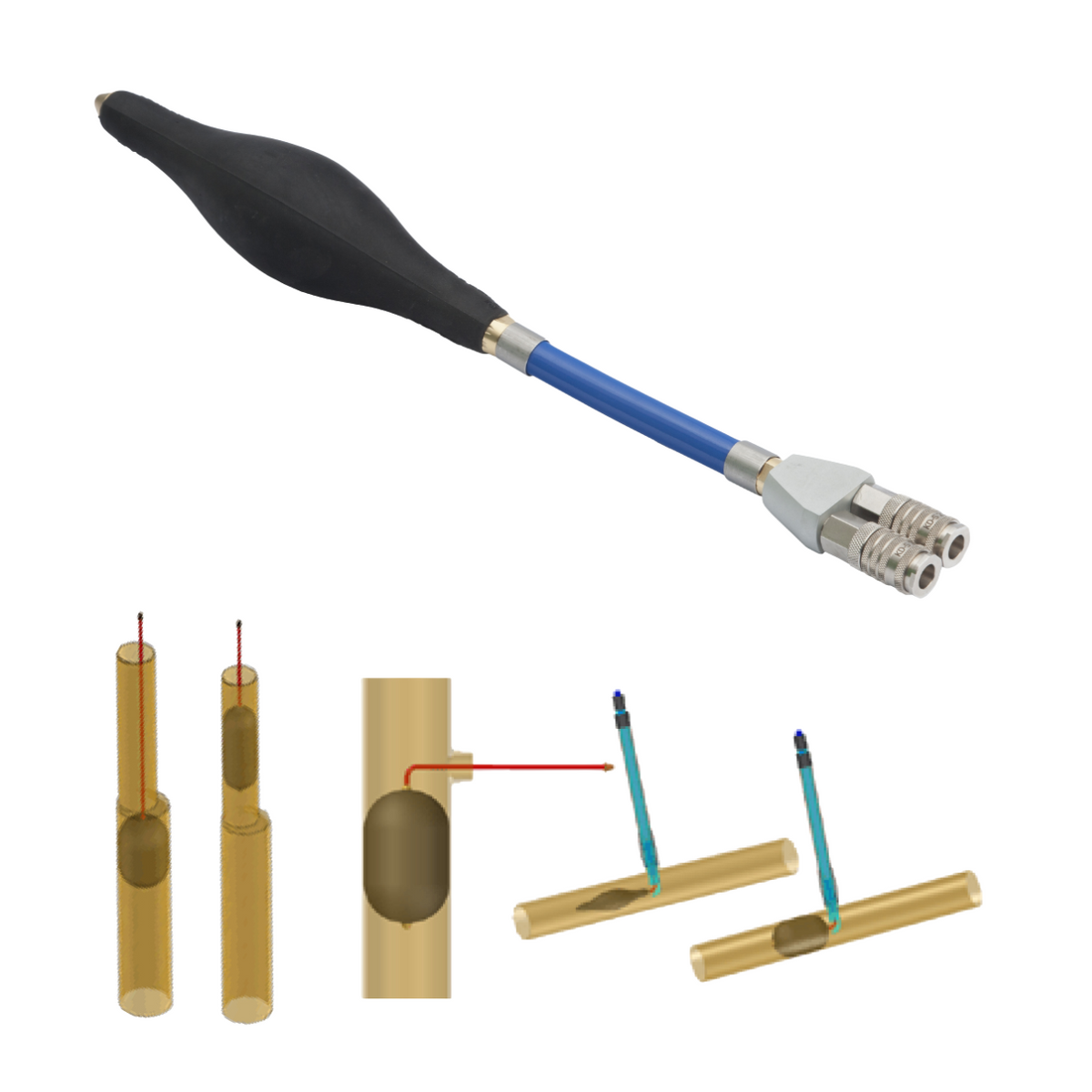

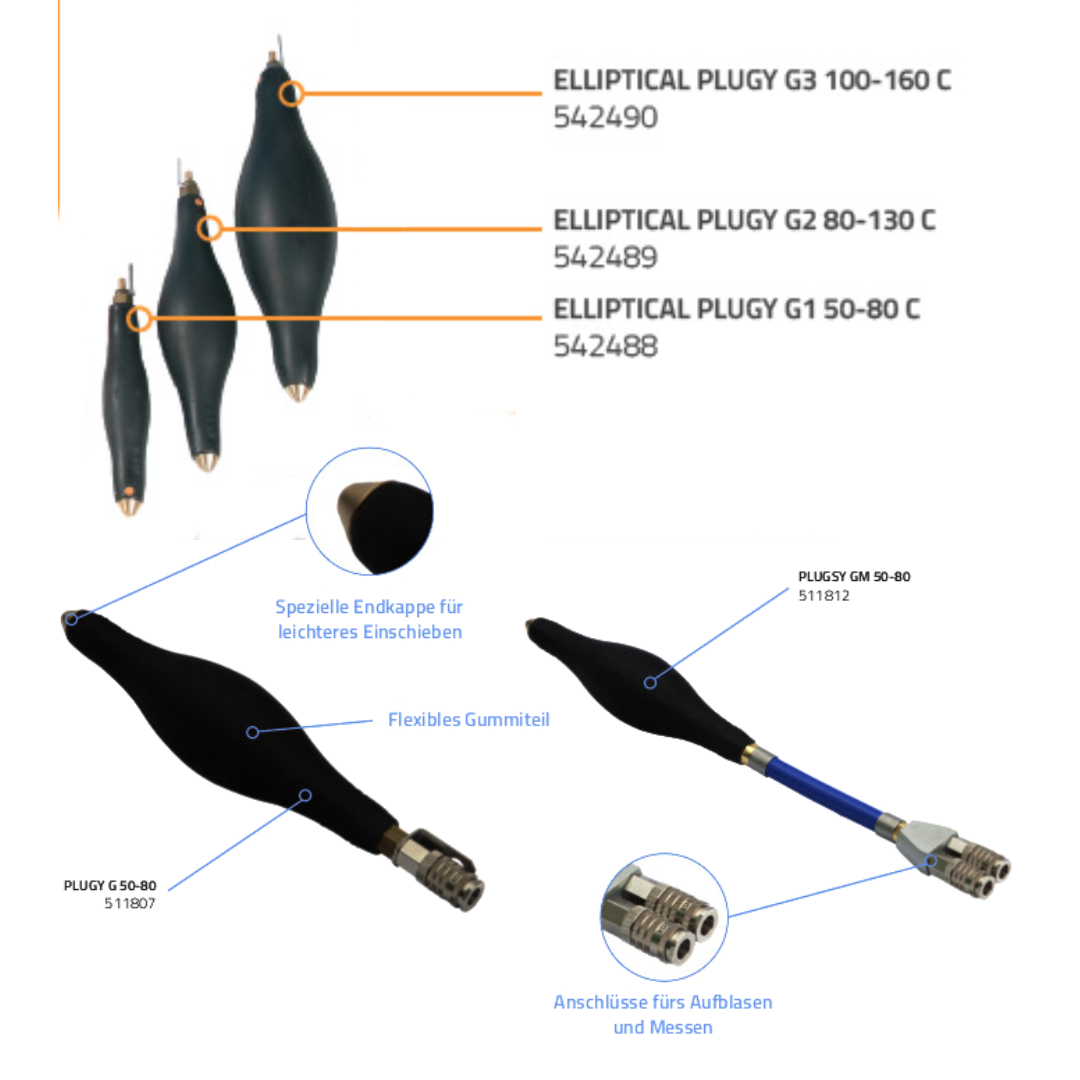

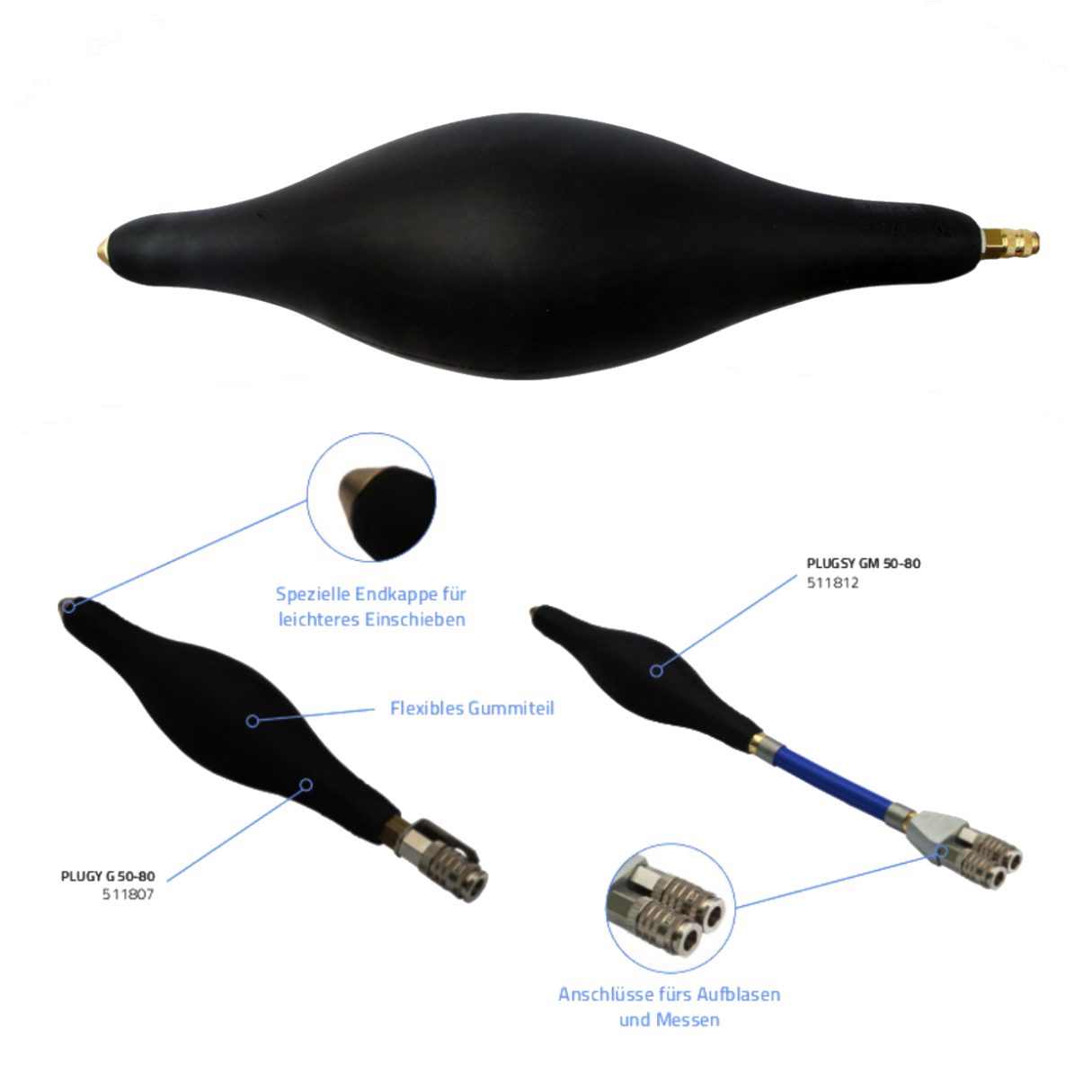

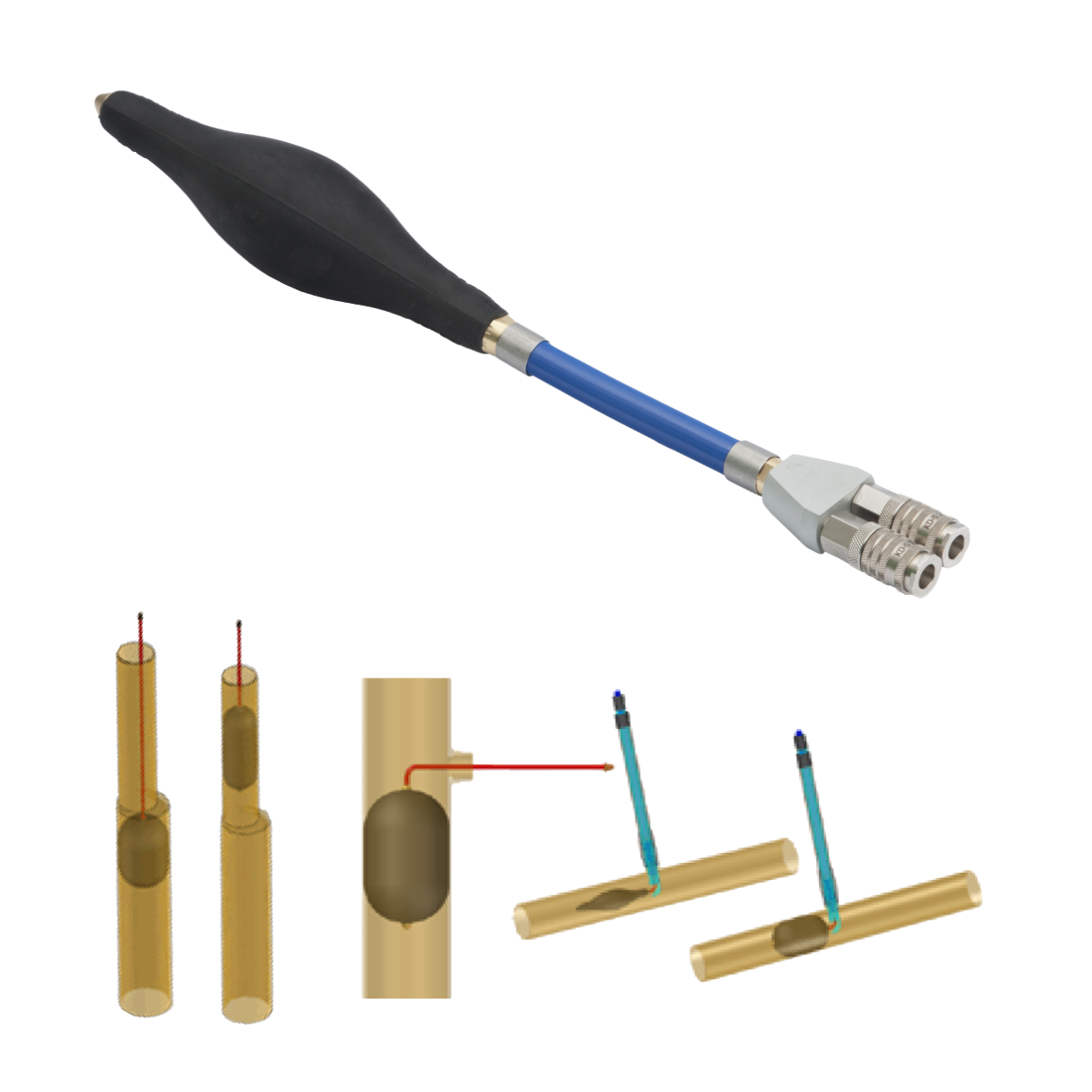

Elliptical pipe plug Plugy G6 - DN 315-500, through plug The multidimensional plugs PLUGY G and PLUGSY GM are suitable for Sealing and testing of pipelines and gas lines with limited entry opening. Their innovative design and flexibility simplify handling and insertion. Elliptical gas Through-hole bladders are available for pipe diameters from 45mm to 500mm. The attached steel cap and a short and flexible design facilitate the introduction in the house connection area. A short installation length with the smallest Diameters increase the arching capability of this bladder. Two separate Compressed air connections with quick coupling enable quick connection the filling and measuring devices. - Special elliptical shape - Suitable for very small diameters - Pipe diameters from 45mm to 500mm available - Also available in oil-resistant quality - Flexible rubber without wire reinforcement - Compressed air connection with quick coupling - Compressed air connection with quick coupling for measuring devices
