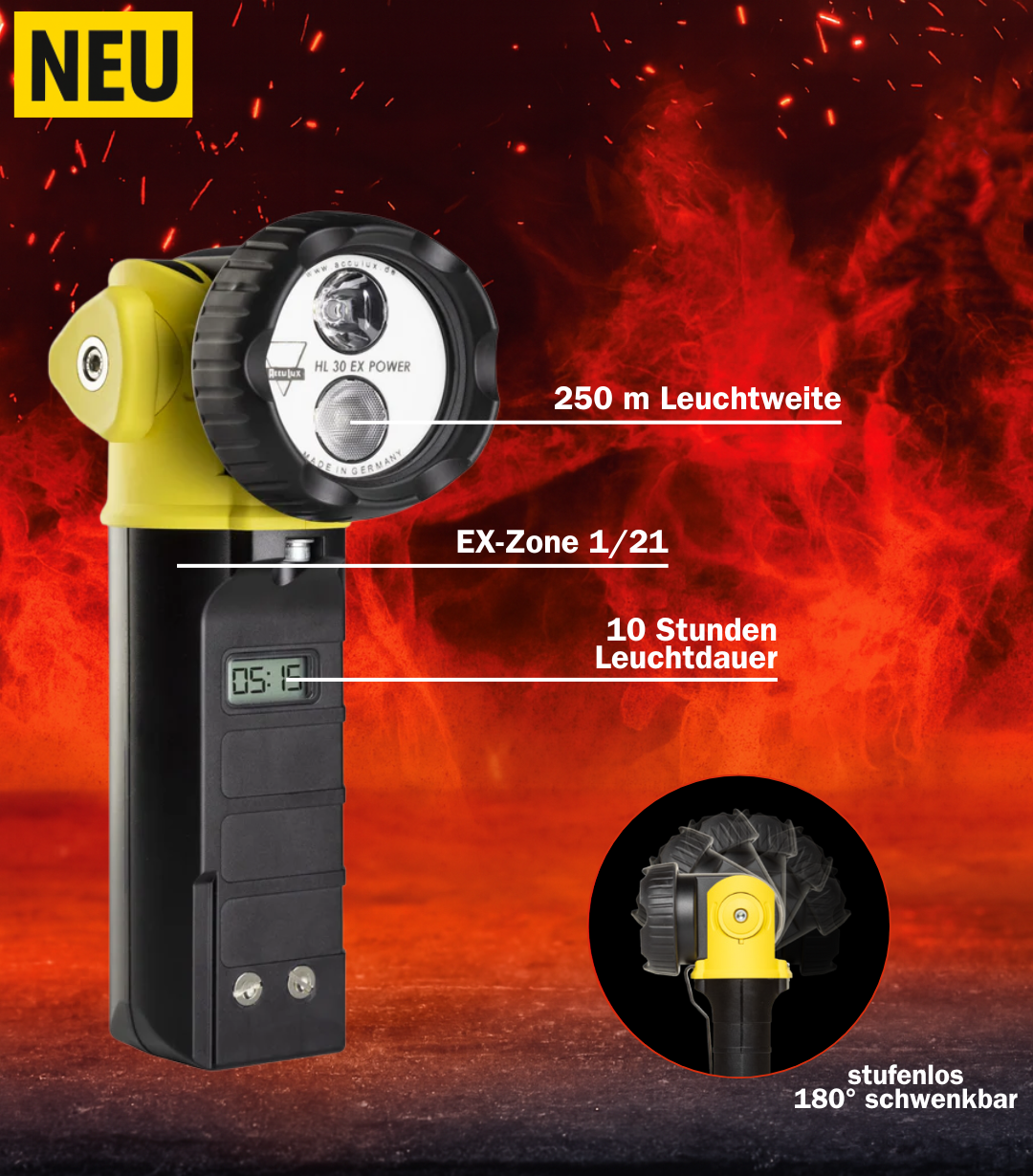

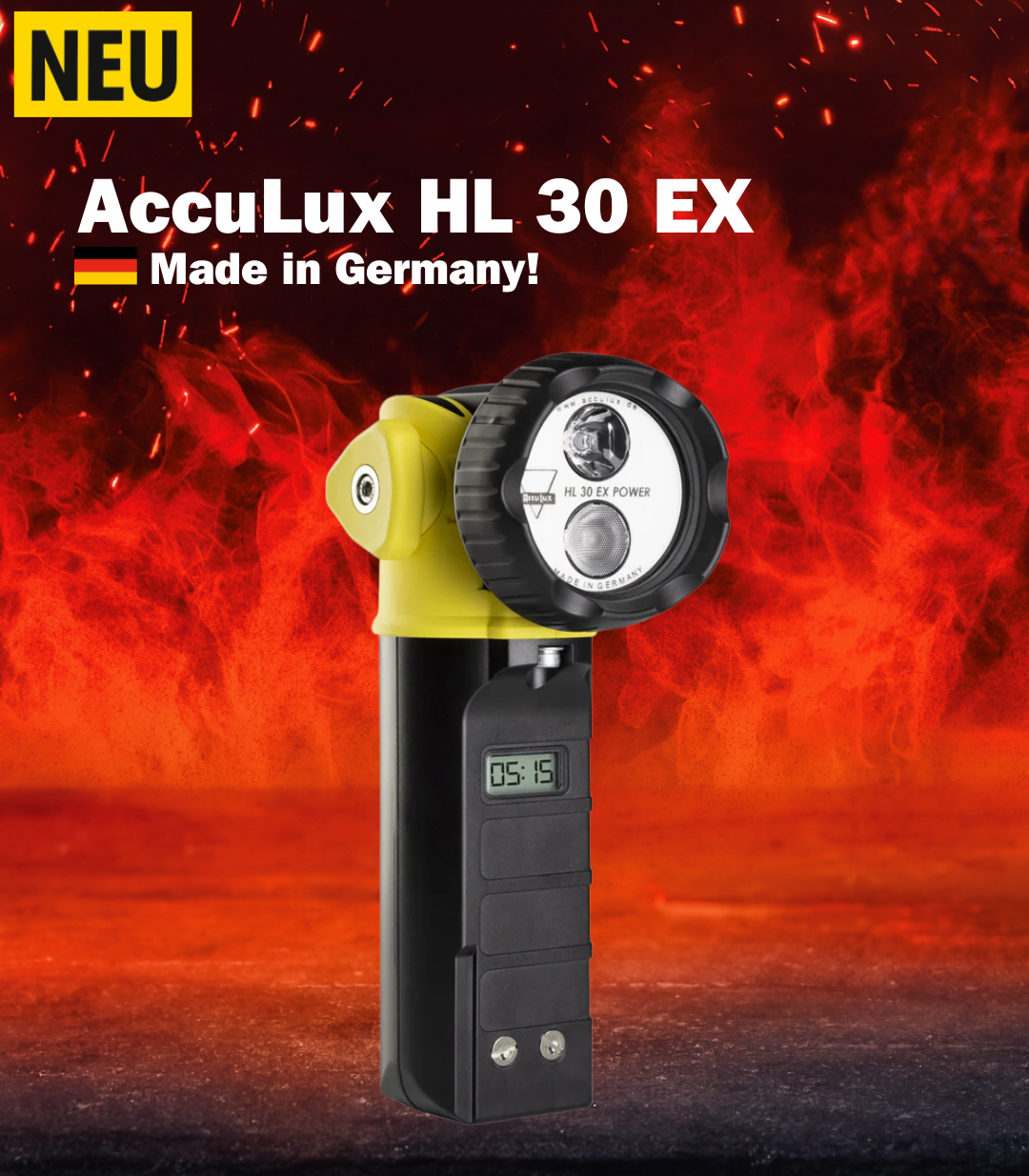

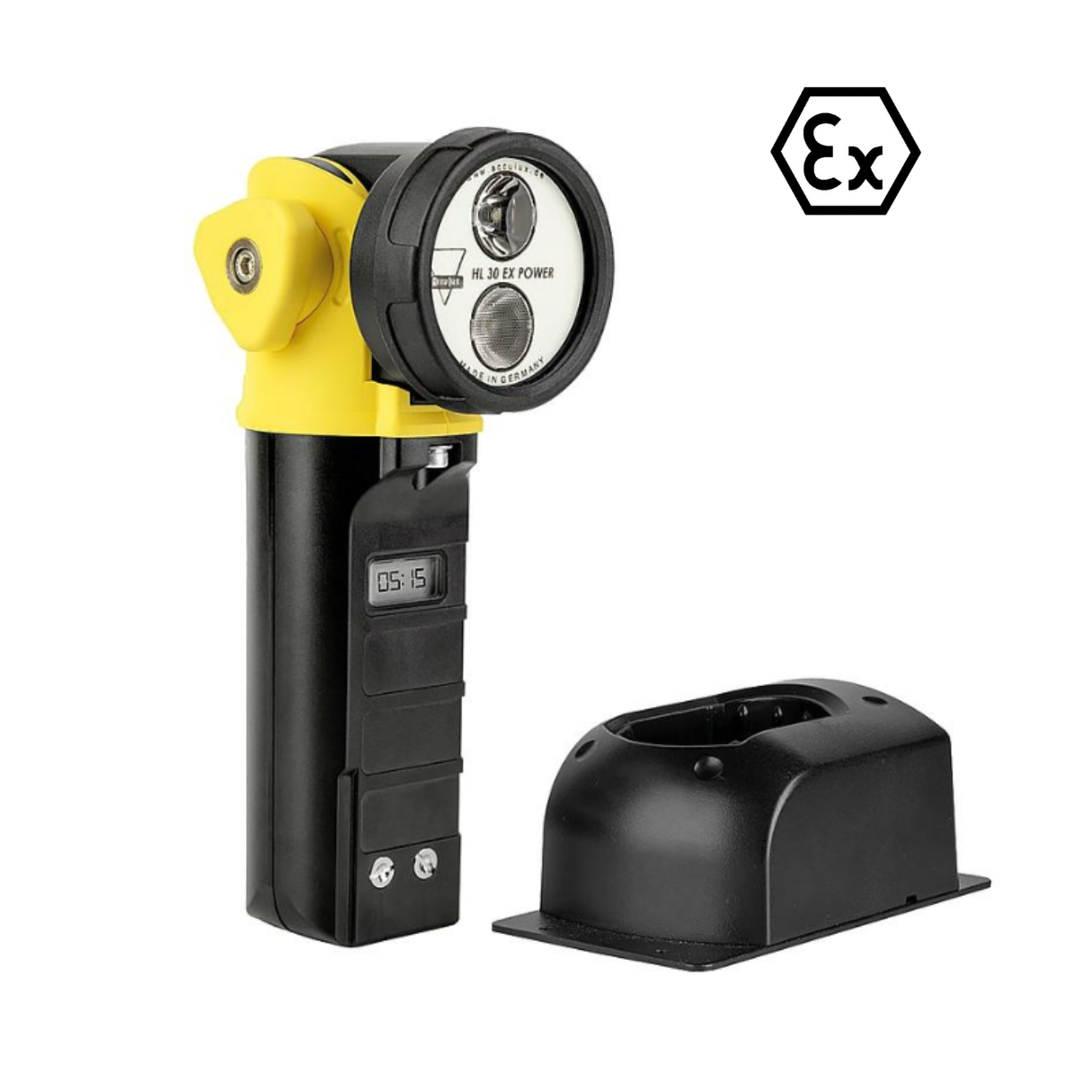

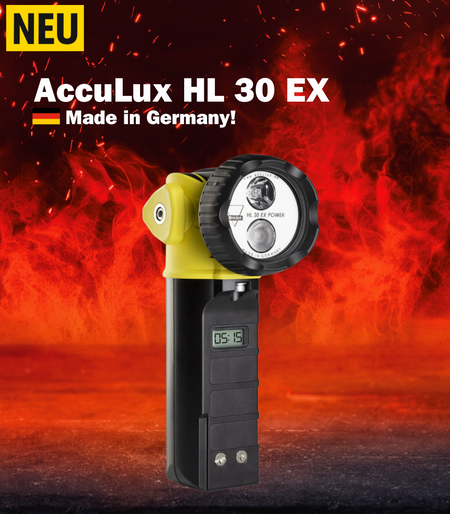

Handheld lamp HL 30 EX POWER, explosion-proof

d

Housing material: plastic, impact-resistant
High beam light source: approx. 420 lumens (burning time approx. 5 h)
Light source close-range light: approx. 300 lumens (burning time approx. 5 h)
Pilot light bulb: approx. 160 lumens (burning time approx. 10 h)
Beam range: approx. 250 m
Protection class of the luminaire: IP 67
Battery: Lithium-ion battery 3.7 V, 5.0 Ah
Weight of the lamp: approx. 0.6 kg
Dimensions in mm: 237 x 105 x 77
Ex zone: 1, 2, 21 and 22
EX marking: II 2 G Ex ib IIC T4 Gb, II 2 D EX ib IIC T 135° C Db

Handheld lamp HL 30 EX POWER, explosion-proof

The microprocessor-controlled, rechargeable bendable head safety hand lamp,
Model HL 30 EX POWER with digital display, ATEX Directive 2014/34/EU and
relevant EMC regulations, has a vehicle approval. The lamp is
equipped with two switchable high-performance LEDs and as a power light
switchable. The environmentally friendly lithium-ion battery without memory
Effect is protected against deep discharge by the intelligent circuit layout and
This can be replaced by the user. Due to the
180° degree swiveling, adjustable light head, the light is flexible
The lamp can also be attached to protective clothing using a clip
The use as a luminaire with emergency lighting function is also
available and can be switched off by the customer. The charging unit for 100-230V
AC, 12V DC and 24V DC can be supplied from 1 to 5 times. With a
With its low weight of approximately 0.6 kg, the HL 30 EX POWER is at the top
comparable hand lamps. The design complies with DIN 14649.

* The HL 30 EX POWER can be used in EX areas 1, 2, 21 and 22.
* Digital display in hours and minutes
* Protective rubber ring on the lamp head, optional
* Adjustable lamp head of 180° (in two directions by
Rotatable 90°)
* Operator-replaceable lithium-ion battery
* Loading units 1-fold to 5-fold
* No need to change the bulb
* Emergency light function can be switched off
* Low weight, only approx. 600 g
* Practical rotary switch, can also be operated with large gloves
* Flashing light can be activated
