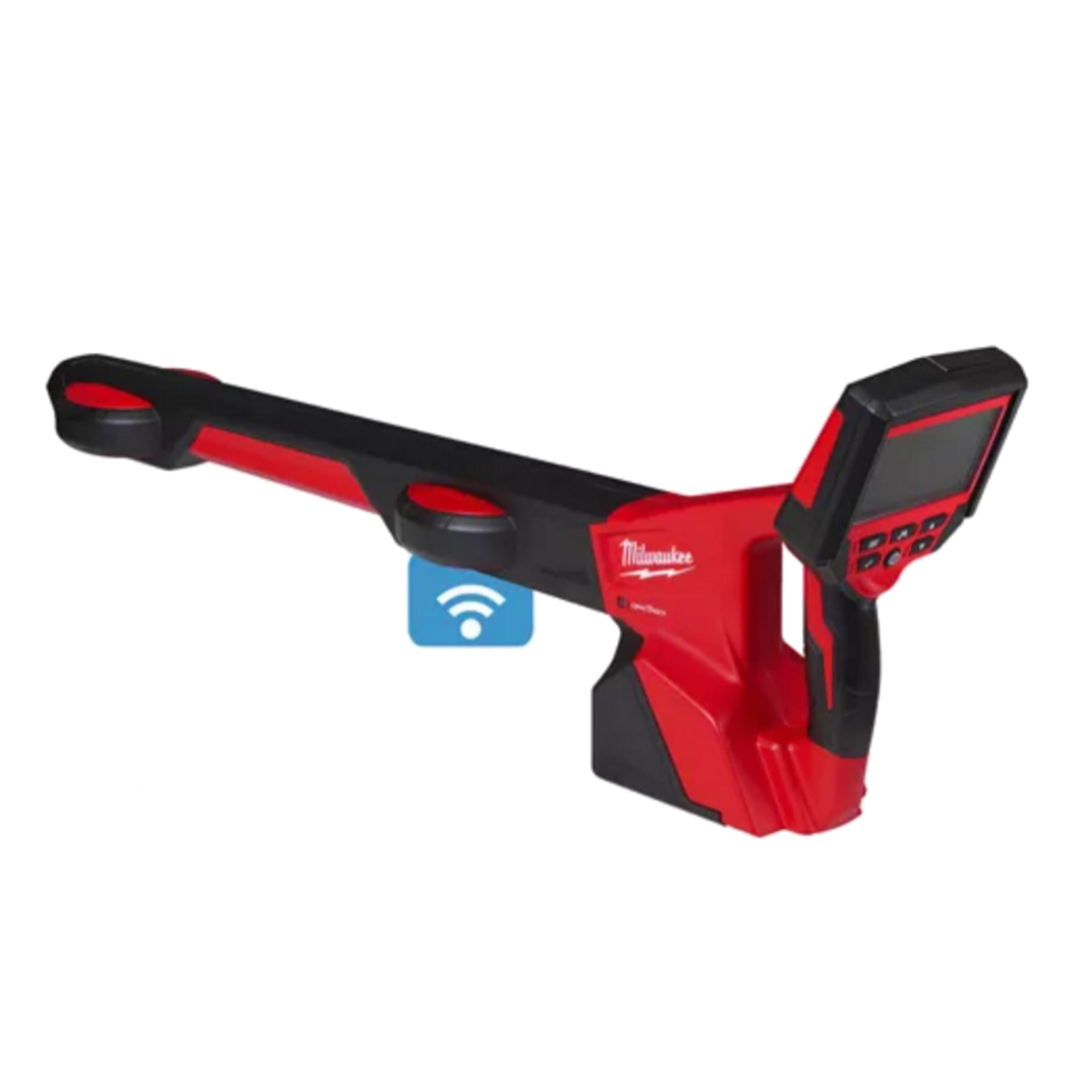

Milwaukee M12 Battery Locator - Precise tracking for professionals
The Milwaukee M12 battery locator is a powerful search device that
Helps you to quickly and accurately locate hidden objects such as cables and pipes
Equipped with advanced technology and
user-friendly features, this tracking device is indispensable for
every craftsman, electrician or construction professional.
Direction arrows and probe symbol: When the device starts, direction arrows
precisely in the direction of the probe, and the probe symbol on the screen
confirms the exact location of the probe. This facilitates precise
Locating pipes and cables.
Ahl tracking with compass symbol: The compass symbol tracks under voltage
standing hole, so that you can precisely determine the course of cables and pipes
This enables fast and precise location of
Live lines.
LED backlight: The LED backlight of the keys ensures
for easy operation, even in poor lighting conditions. This increases
the comfort and user-friendliness of the device.
Tool control and calibration: Quickly switch between the
different location modes and monitor the accuracy of the
Calibration tests. The device offers precise calibration to ensure accurate
to ensure results.

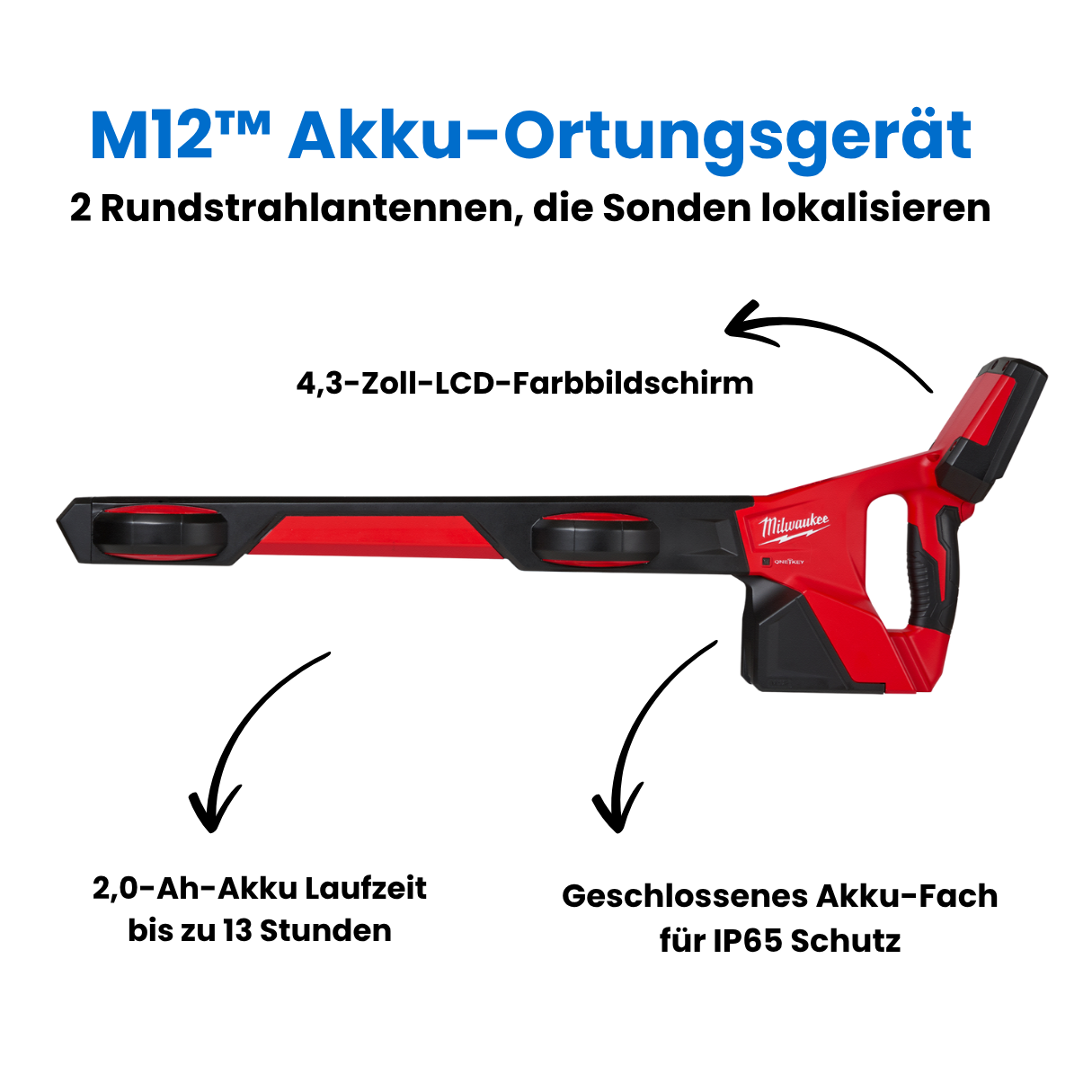

Double antennas for precise positioning: The double omnidirectional antennas increase
the sensitivity and eliminate false alarms, resulting in an accurate
This feature is particularly useful in complex environments.

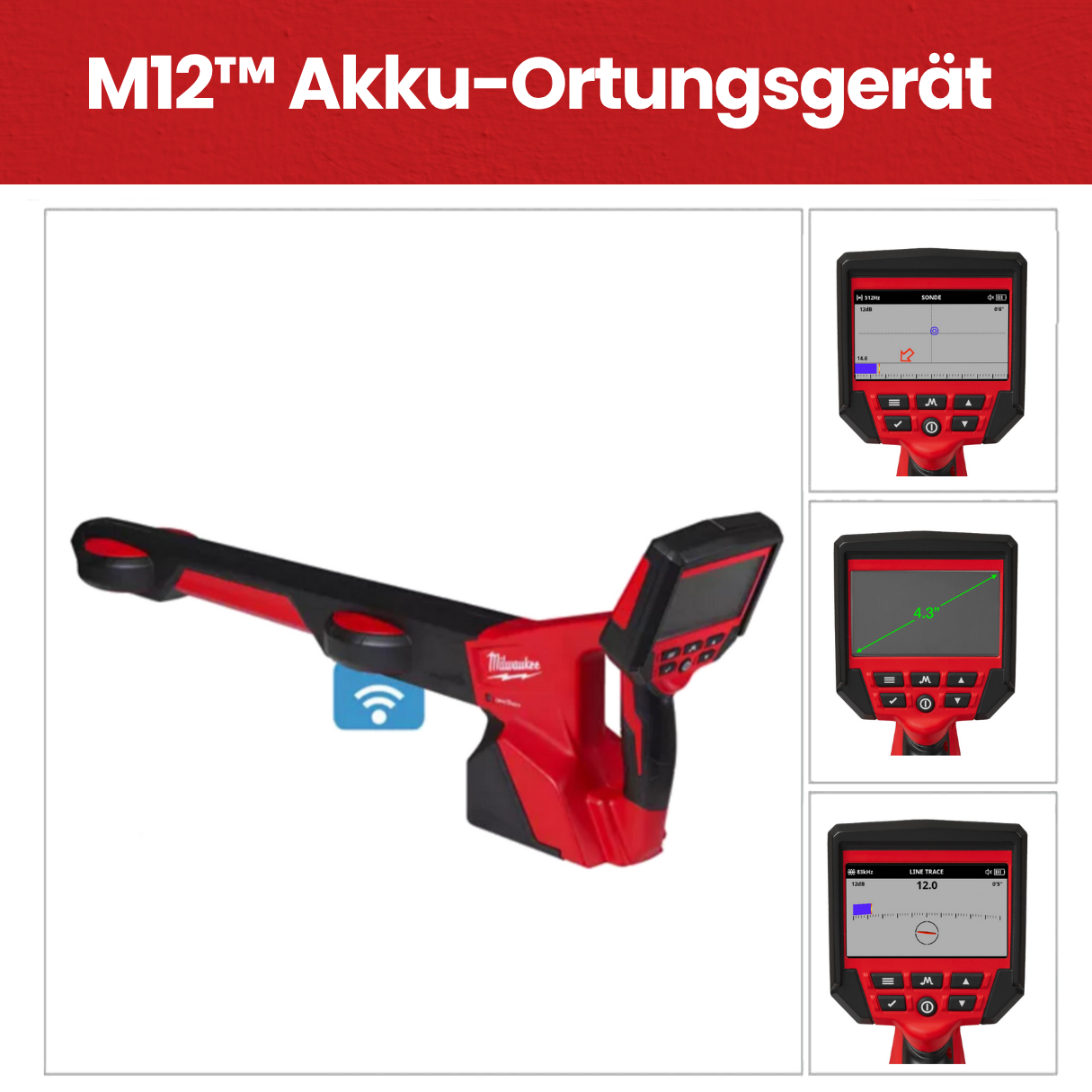

4.3" LCD Screen: The large 4.3-inch LCD display shows the signals clearly and
The daylight-readable screen offers optimal visibility,
even in direct sunlight.
Protection class IP65: The device is certified to IP65, which means that it
protected against dust and splash water. The rubber coating provides
additional protection so that the tracking device can withstand even the toughest conditions on
the construction site.

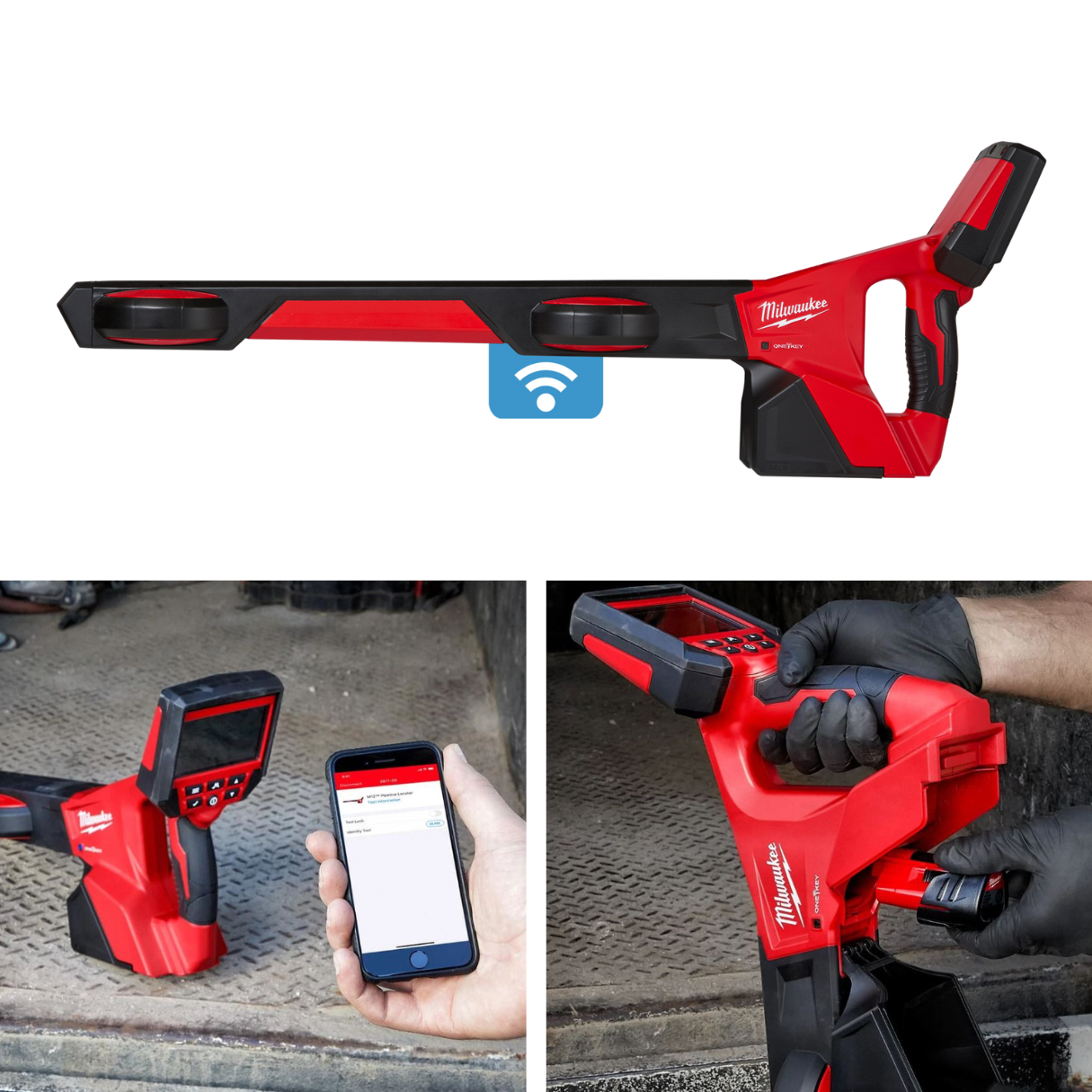

One Key Function: With the One Key function you can easily
manage, lock and locate. This provides additional security and
Protection against loss or theft.
The tracking device offers several modes for different applications:
Probe mode: Supports frequencies of 512 Hz, 640 Hz and 33 kHz.
Ahl tracking: Captures frequencies of 33 kHz and 83 kHz.
Live line: Supports frequencies of 50 Hz and 60 Hz.
Radio frequency range: Covers a band from 10 kHz to 22.7 kHz.
