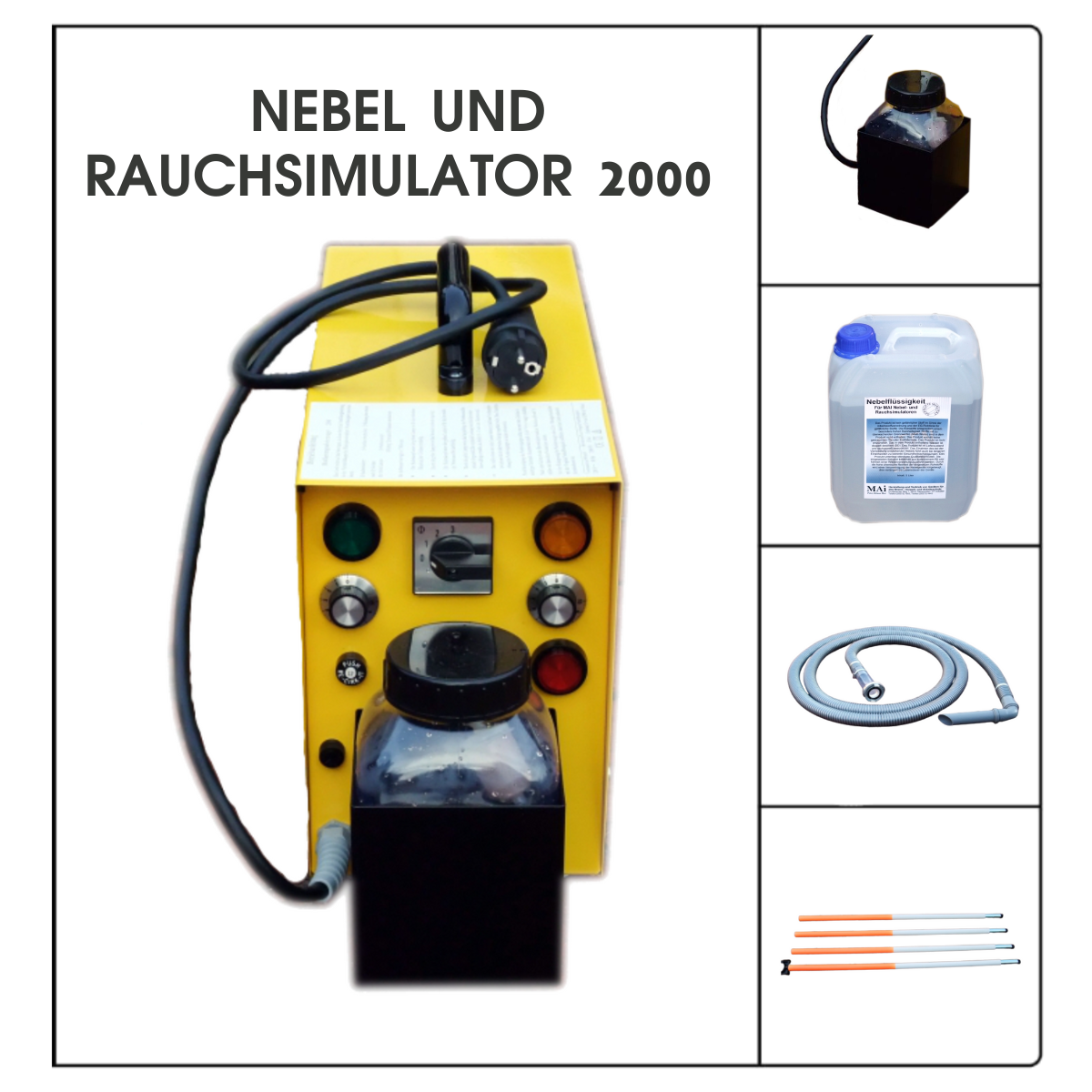

Fog and Smoke Simulator 2000

d

Technical data:
Operating voltage: 230 V 50 HZ
Power consumption: 2200 W
Protection class: IP44
Fuse: 12 AT
Preheating time: 5-6 minutes
Operating fluid: Only original MAI fog fluid!
Consumption/min: approx. 15 ml
Tank capacity: 2 liters
Fog output: 2 liters approx. 125,000 m³
Fan data:
Speed: continuously adjustable up to 24300 min-1
Intake volume flow: max. 203 m³/h
Max. negative pressure: 236 mbar
Service life of carbon brushes: approx. 800-1000 h
Total weight: 19 kg
Dimensions (W x H x D): 605 x 375 x 185 mm

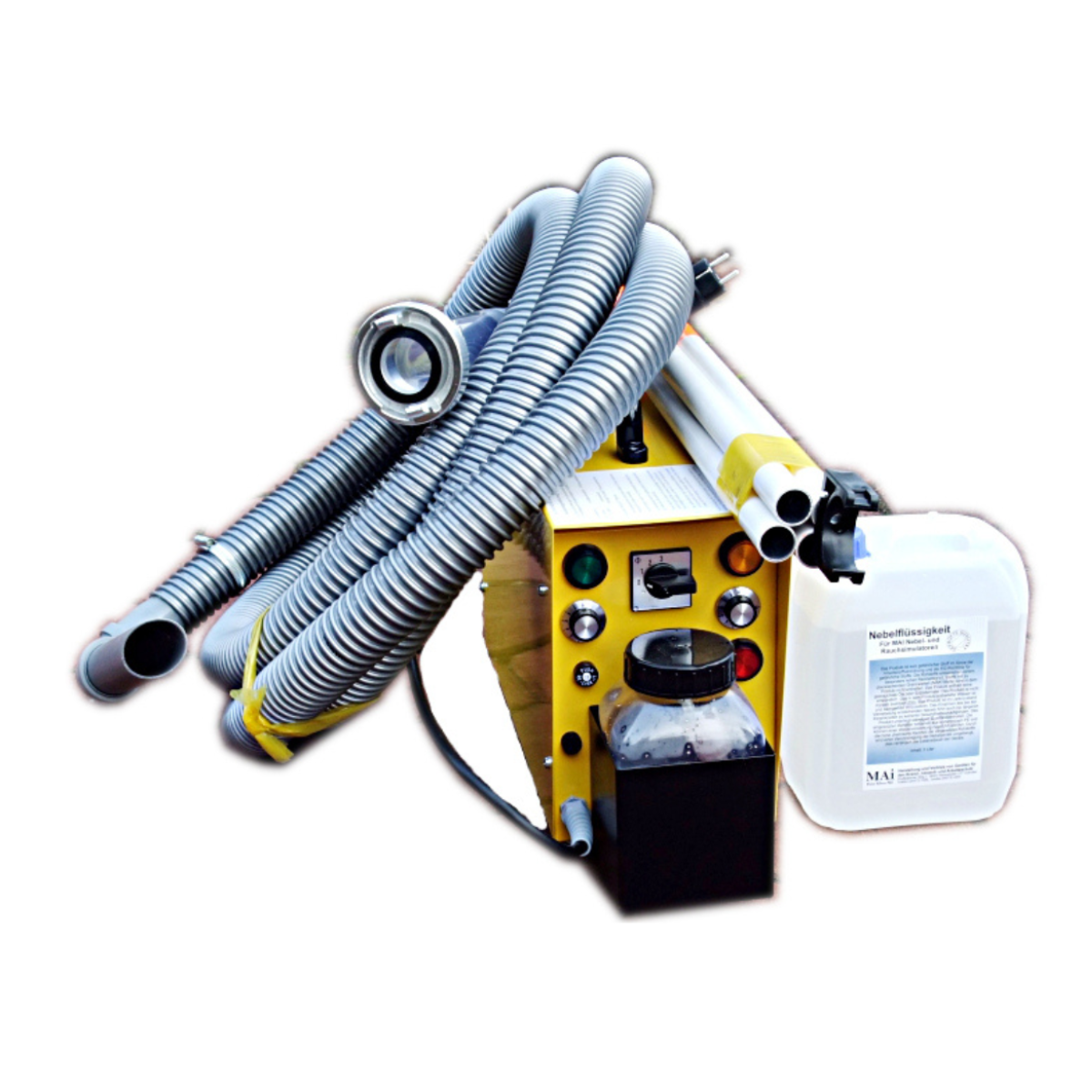

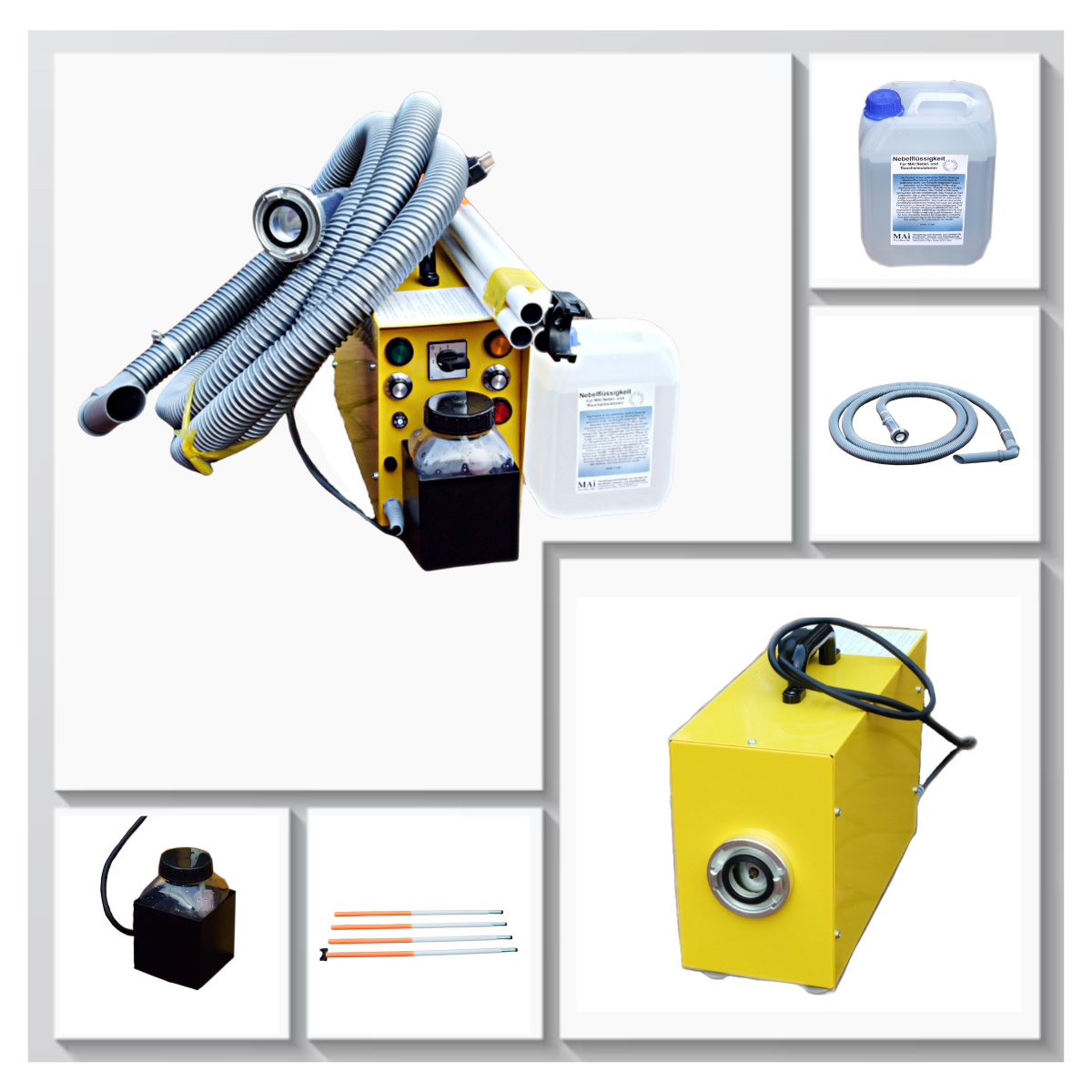

Scope of delivery:
1x device
1x fog fluid 5 liters
1x 6 meter plastic hose
4x 1 meter guide rods

MAY - Fog and Smoke Simulators 2000

The fog and smoke simulator is used:
the inspection of property drainage systems and drains
on false discharges into the public sewer system, water bodies or groundwater
for smoke simulation during fire drills inside or outside buildings
the inspection of waste disposal lines in industry and commerce, which
Discharge pollutants into the sewer system, groundwater and public waters
(Exposing environmental offenders)
as a supplement to the TV channel inspection vehicle, since this TV vehicle is not in
Secondary lines can be fully used
the testing of various pipe and piping systems, the course of which is not
known or cannot be visually detected by the TV car
the optical representation of air flow, e.g. wind tunnel or loading and
vents
Leakage tests of chimneys
the introduction of fresh air into containers and shafts
Finding leaks in case of odor problems
the detection of heat losses during building inspections

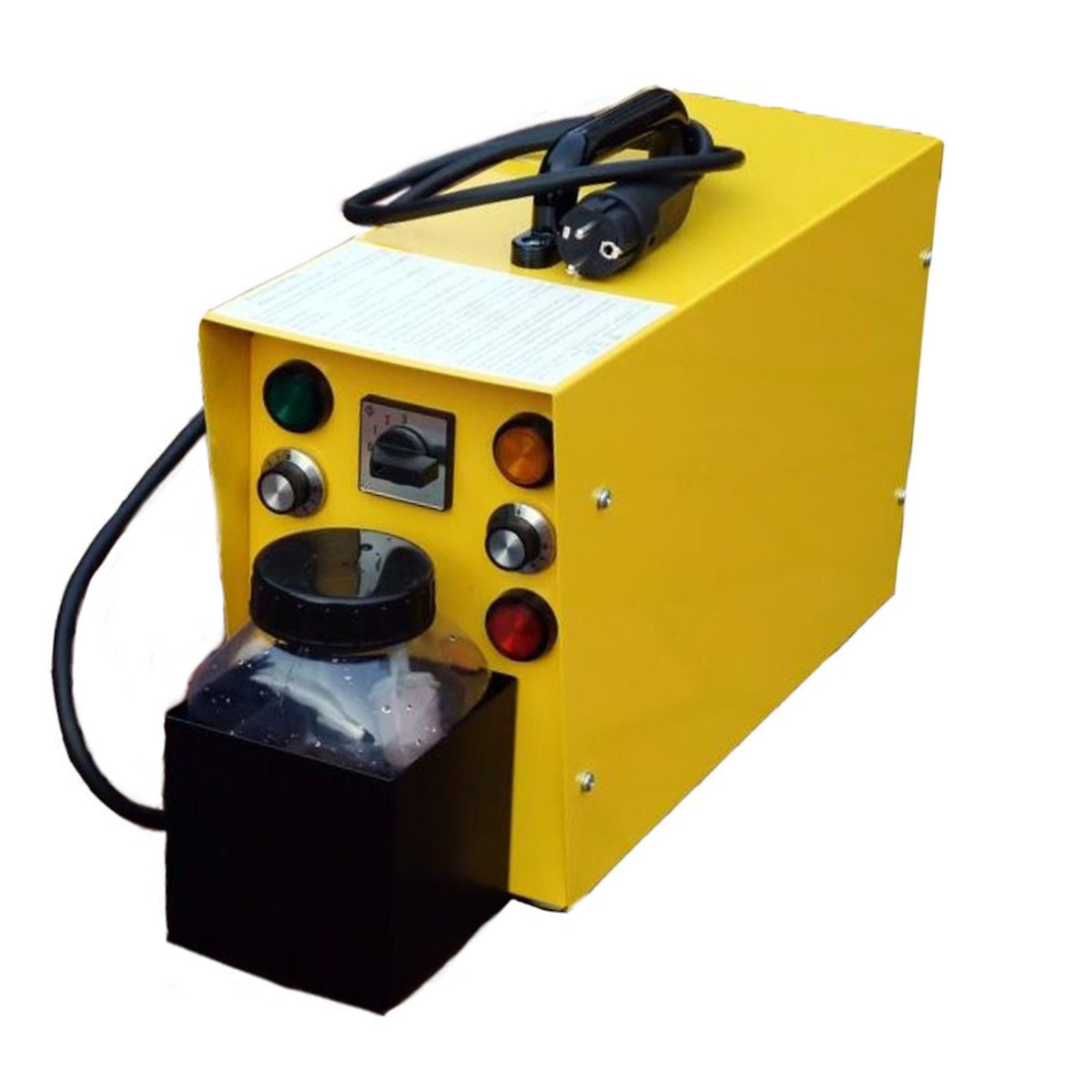

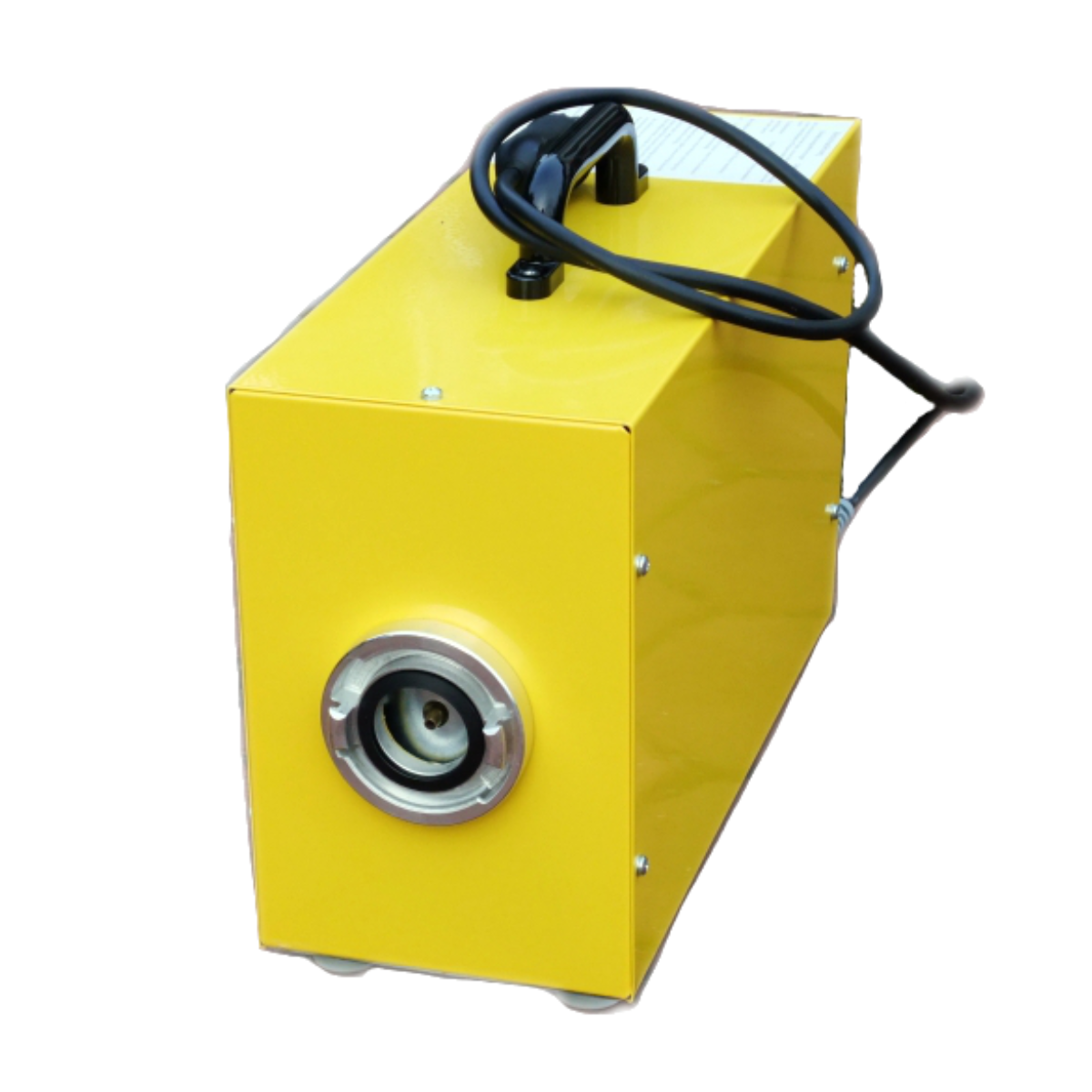

Compact and robust design in a sturdy sheet steel housing
Clear front panel with indicators for operational readiness, fan
as well as power indicator light, controller for continuously adjustable fan speed,
Fog intensity control
Step switch: Level 1 without evaporator, allows operation of the device without
Evaporator e.g. for pure fresh air supply in containers and shafts, stage 2
and 3 to switch on the evaporator

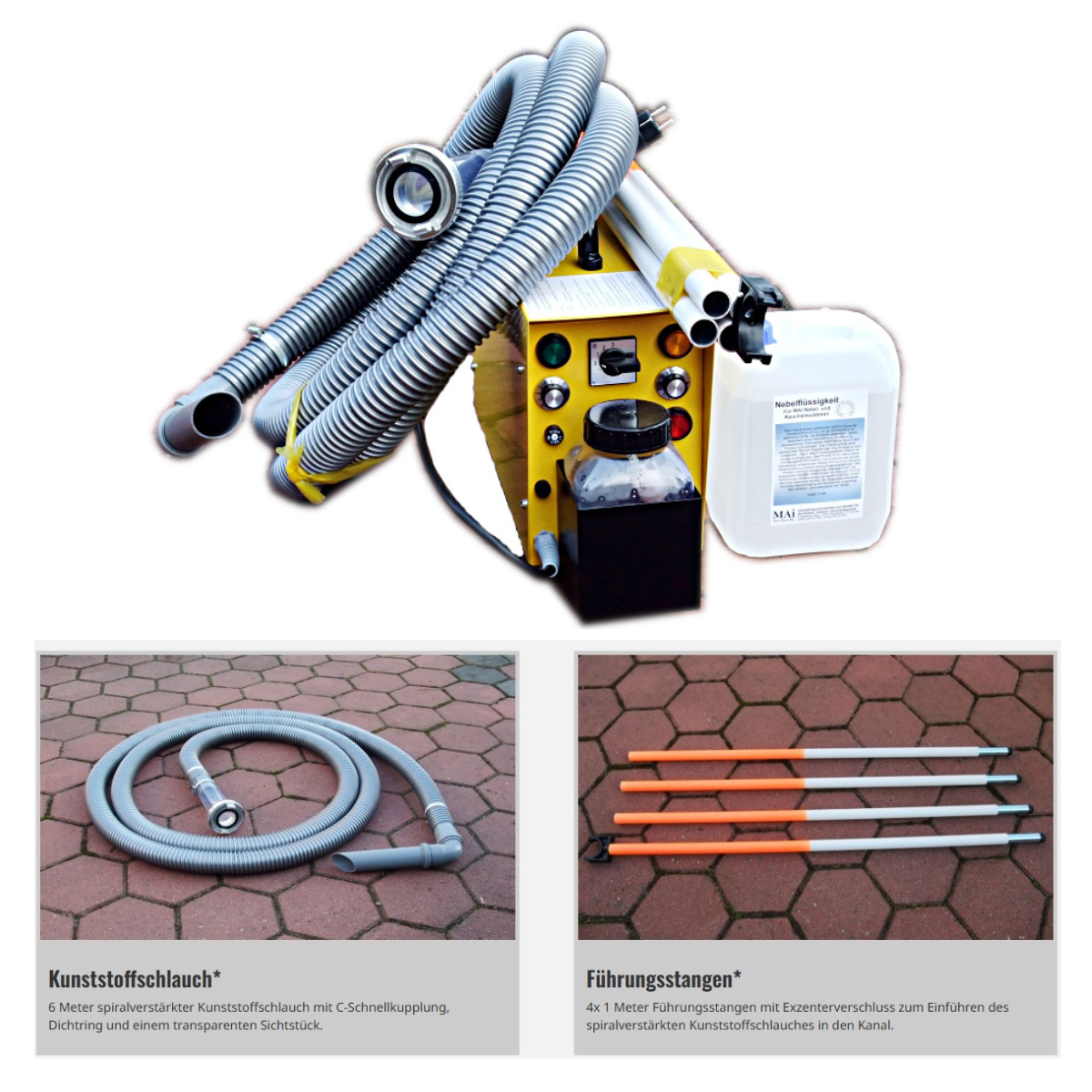

Spiral reinforced plastic hose 6 m with C-quick coupling and
transparent viewing piece
