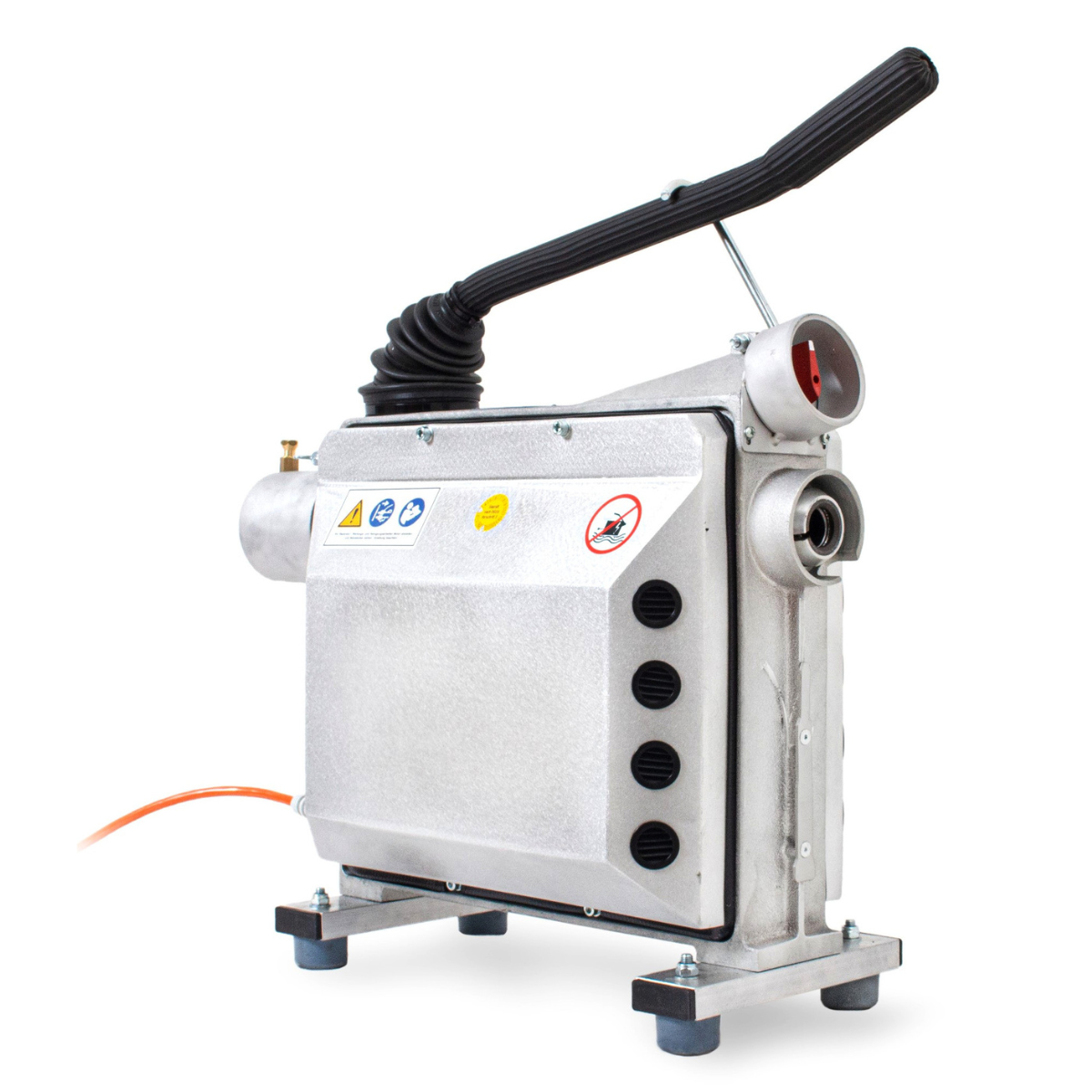

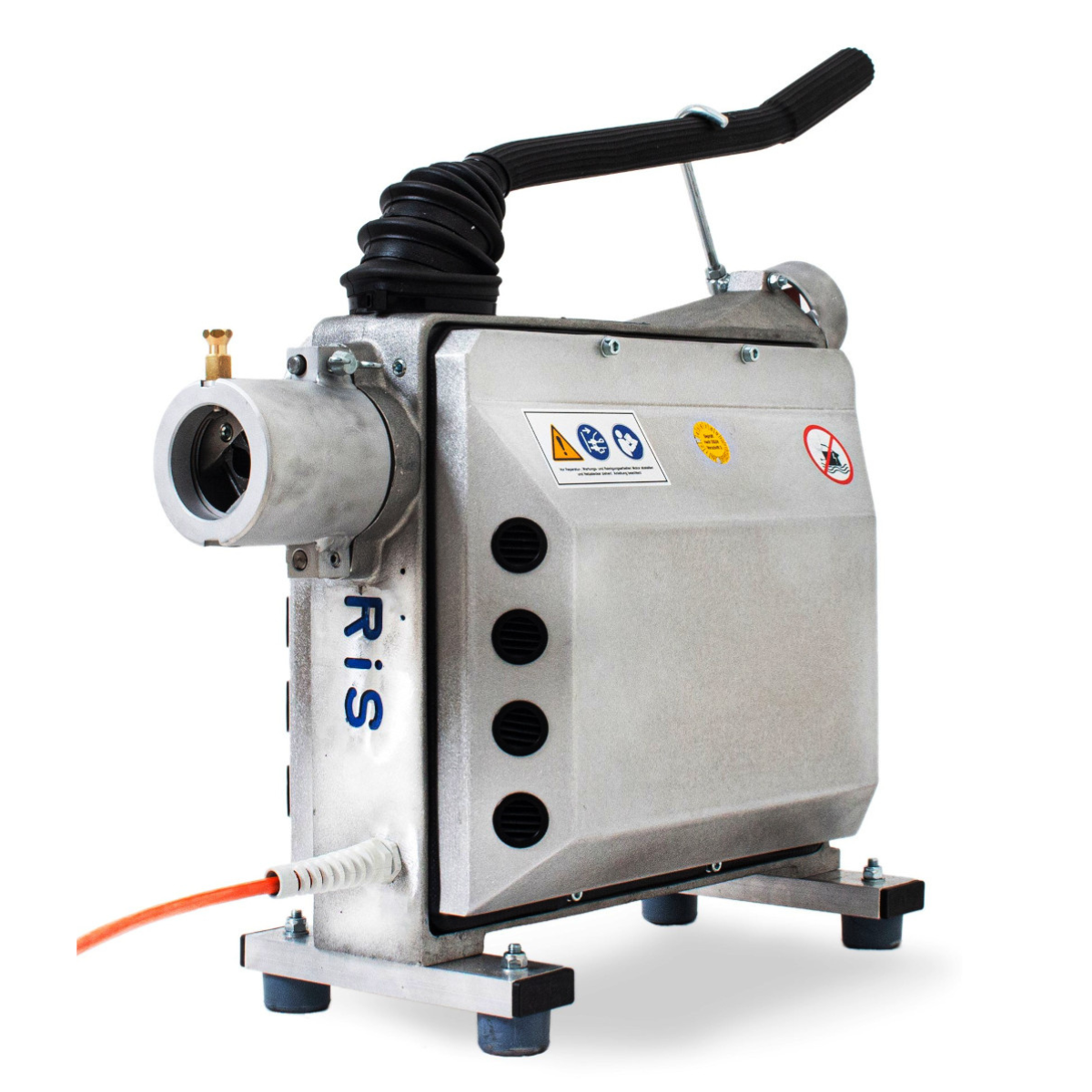

RIS-22 professional drain cleaning machine
Robust and reliable for efficient pipe cleaning
The RIS-22 pipe and sewer cleaning machine is the result of years of
Experience in pipe cleaning technology and combines a robust, durable
Designed with a user-friendly quick-change clamping jaw system.
Ideal for craftsmen, sewer workers and specialists in the field of building services.
Technical highlights of the RIS-22
Versatile applications: Designed for pipes with a diameter
from DN 30 to 200 mm. The maximum working length is 80 m, so you can
can work effectively in larger pipe systems.
Compatibility with different spirals: Operate the machine with 6,
8, 10, 16 and 22 mm spirals. The use of an adapter magazine enables
easy adaptation to different spiral sizes to meet the specific
to meet the requirements of the respective application.
Stable and durable design: The sturdy cast aluminum frame and the
Robust aluminum covers protect the hermetically sealed electronics as well as the
Drive mechanism. This design ensures that the inner workings of the
Machine stays clean for years and minimizes maintenance effort.
User-friendly clamping jaw system
Quick-change clamping jaw system: The user-friendly mechanism
enables quick and easy changing of the clamping jaws without
Special tools. Save valuable time when maintaining and adjusting the
Machine.
Reinforced spiral clamping lever: The plastic-coated and additionally
Reinforced clamping lever ensures safe working and reliable hold of the
Spirals during operation.

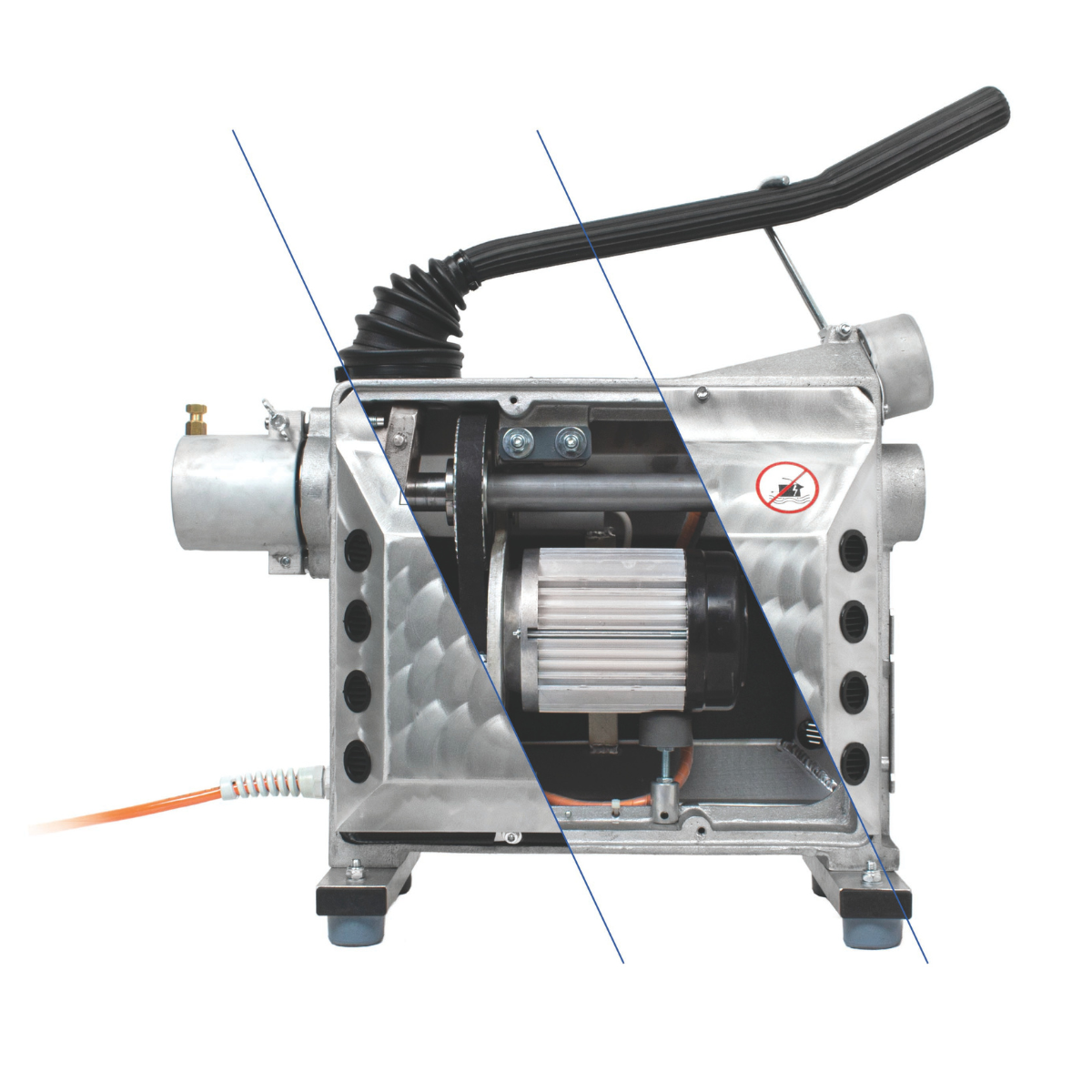

Powerful engine
Powerful motor: With an input power of 750 W (1 HP) and a
With a speed of 670 rpm (clockwise/anticlockwise rotation), the motor is specially designed for
requirements of our machines to meet even the most difficult
Efficiently remove pipe blockages. Overheating protection: Side
Ventilation plugs prevent the engine from overheating, which
Extends the life of the machine.
Safety featuresPRCD-S adapter: The integrated personal protection switch
(FI adapter) detects fault currents and interrupts the power supply quickly,
to prevent life-threatening accidents. With a tripping current of 10 mA
The PRCD-S adapter offers additional protection and can also be used for other
machines are used.

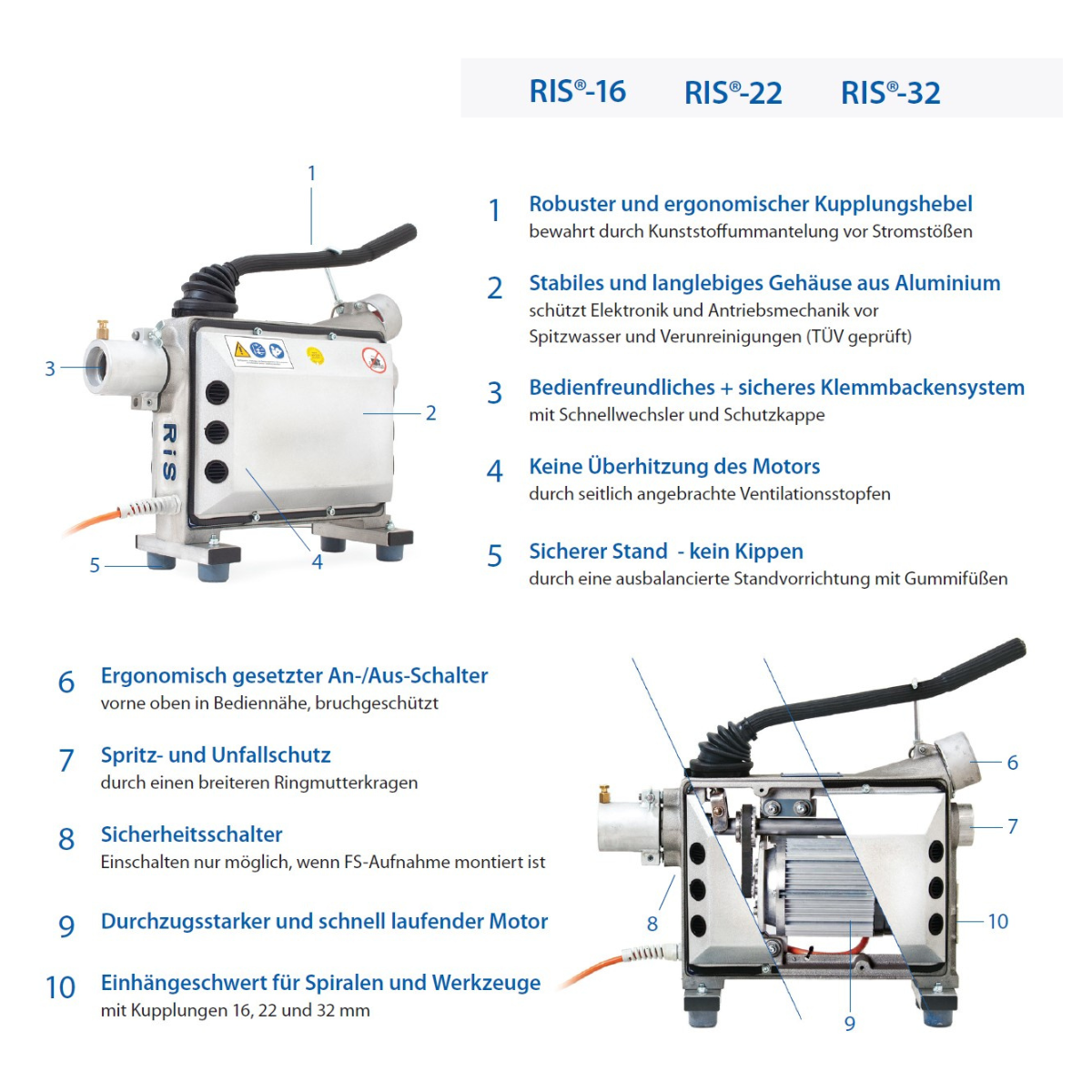

Robust spiral drive device for mobile use in the field of building services
- Developed for special requirements through many years of experience
- Powerful and fast-running engine, especially for our machines
developed
- Stable and durable aluminum housing
- User-friendly clamping jaw system with quick change
- Protection against overheating through ventilation plugs mounted on the side
- tested safety - the personal protection switch (PRCD-S adapter) detects
Fault currents and thus prevents life-threatening accidents (sold separately)
Technical data: 0.75 KW (=1 HP); 670 rpm; 230 volts; 24 kg, 5 meters
Power cable; 70 meters working capacity with 22 mm spirals
