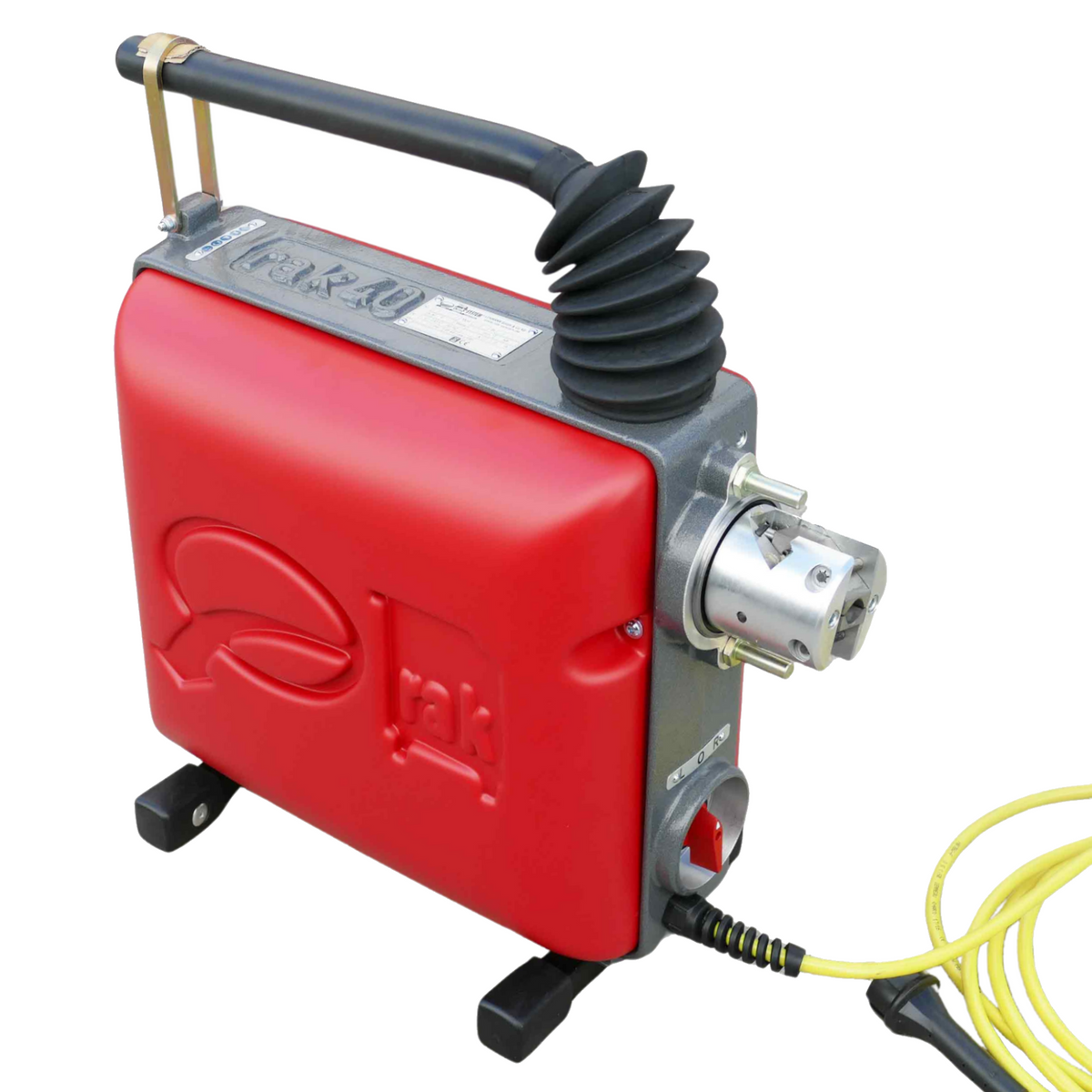

RAK-40 pipe cleaning machine for all applications

for pipe diameter: ø 30-150 mm
Spirals: ø 6/8/10/16/22 mm
Engine: 0.75 kW / 1 HP, right/left
Power supply: 230 V AC / 50 Hz
Speed: 690 min-1
Working length: up to 60 m with 22 mm spiral
LxWxH: 530x200x500 mm
Power cable: 5m length, with PRCD, oil and acid resistant
Weight: approx. 24 kg

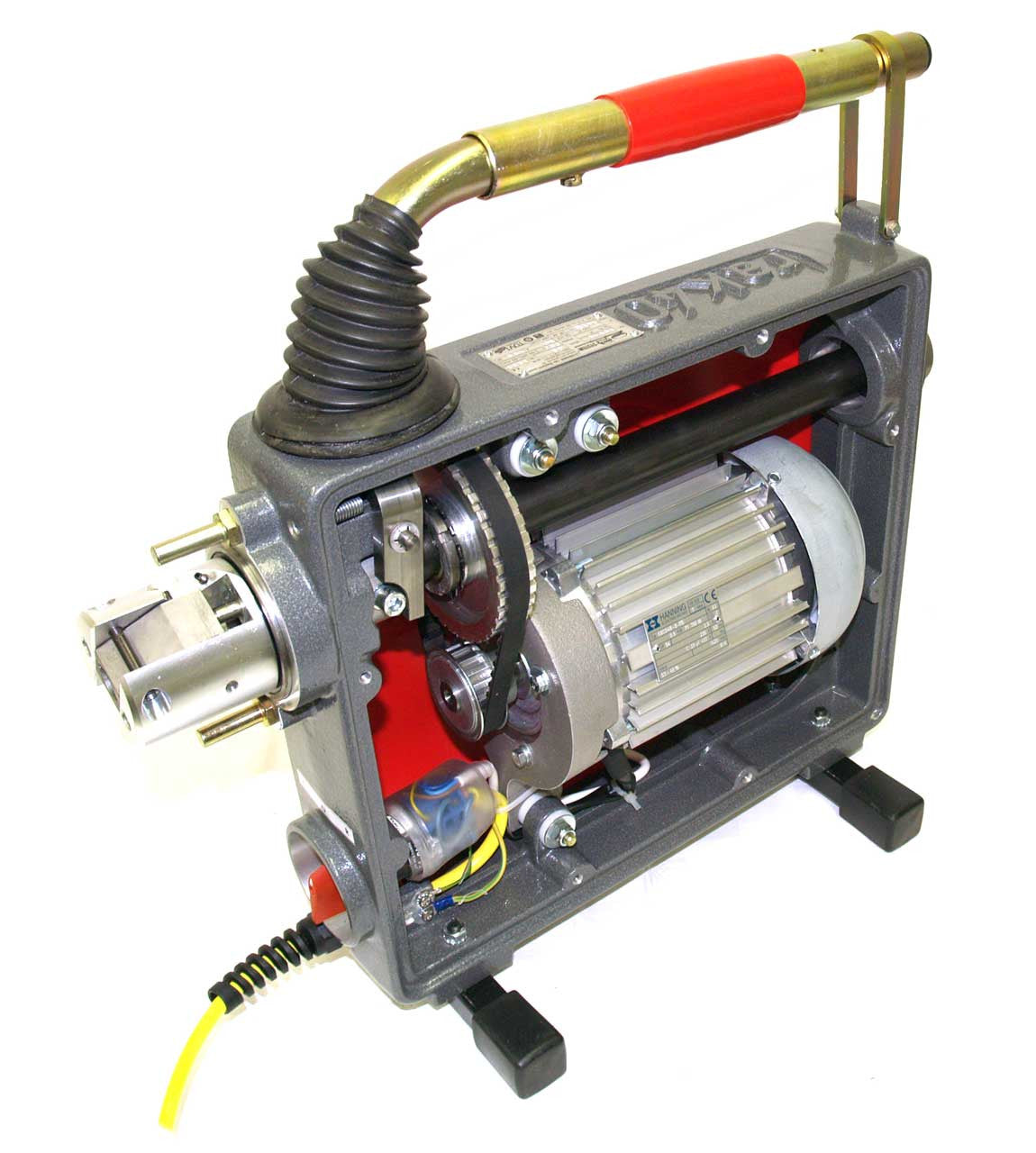

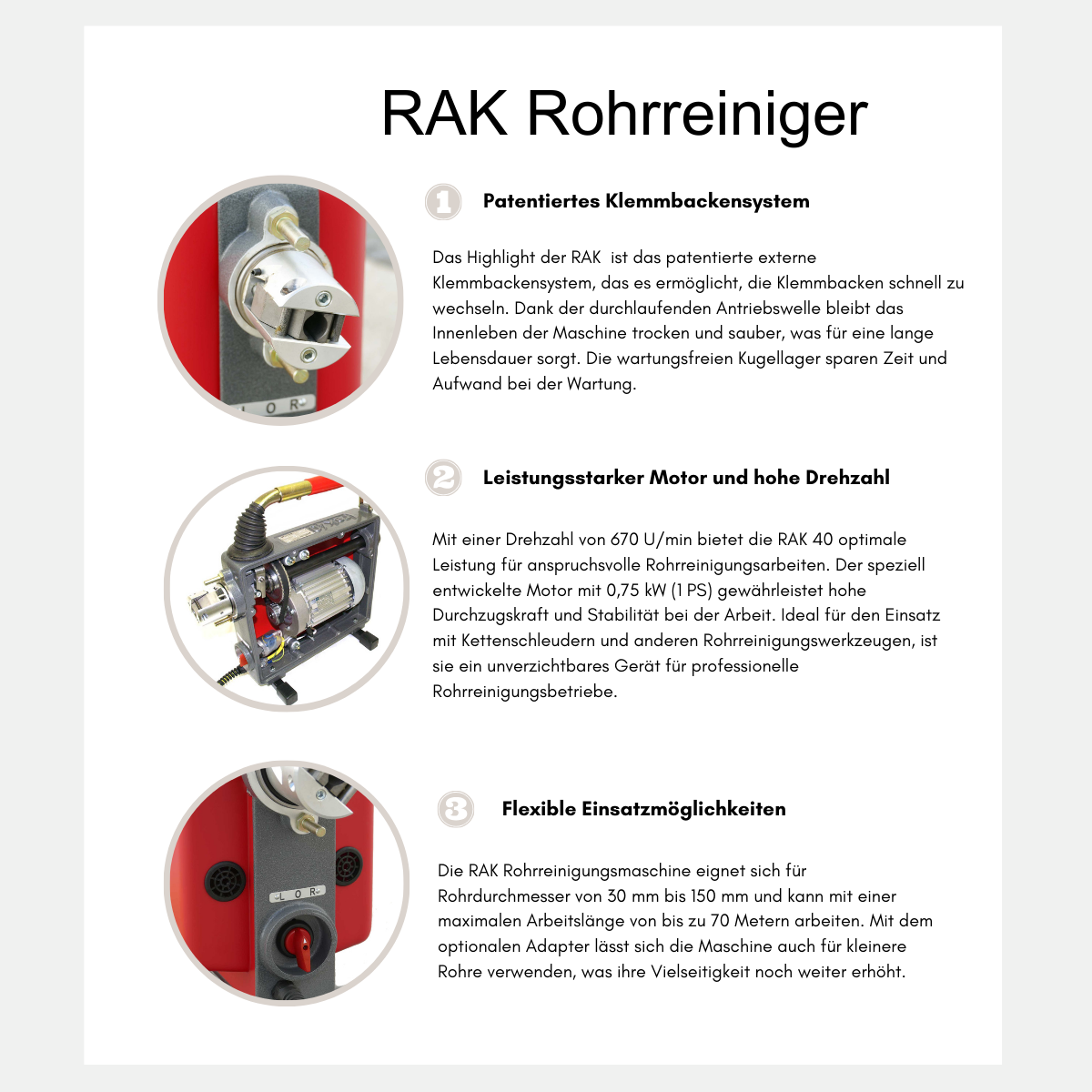

RAK 40 drain cleaning machine – compact, powerful, and versatile Versatile drain cleaning solution for professional applications The RAK 40 pipe cleaning machine is the universal workhorse among the Drain cleaning devices. With their robust construction and high performance It offers versatile application possibilities for service and industrial applications. It is compatible with 16mm and 22mm spirals and can optionally be used with smaller Spirals (6.4mm, 8mm, 10mm) can be used. Patented clamping jaw system The highlight of the RAK 40 is the patented external clamping jaw system, which allows allows the clamping jaws to be changed quickly. Thanks to the continuous Drive shaft, the inside of the machine remains dry and clean, which is a long service life. The maintenance-free ball bearings save time and Maintenance effort. Powerful engine and high speed With a speed of 670 rpm, the RAK 40 offers optimal performance for demanding pipe cleaning work. The specially developed motor with 0.75 kW (1 HP) ensures high pulling power and stability when working. Ideal for use with chain knockers and other Pipe cleaning tools, it is an indispensable device for professional Drain cleaning companies. Maximum efficiency and safety The machine has an ergonomic drive lever, which also serves as Carrying handle, which makes transport easier. The power cable integrated PRCD safety switch protects against electrical hazards. In addition, The splash-proof aluminum housing ensures durability and Robustness. Flexible application options The RAK 40 is suitable for pipe diameters from 30 mm to 150 mm and can be used with a maximum working length of up to 70 meters. With the optional Adapter allows the machine to be used for smaller pipes, which makes its Versatility increased even further.
