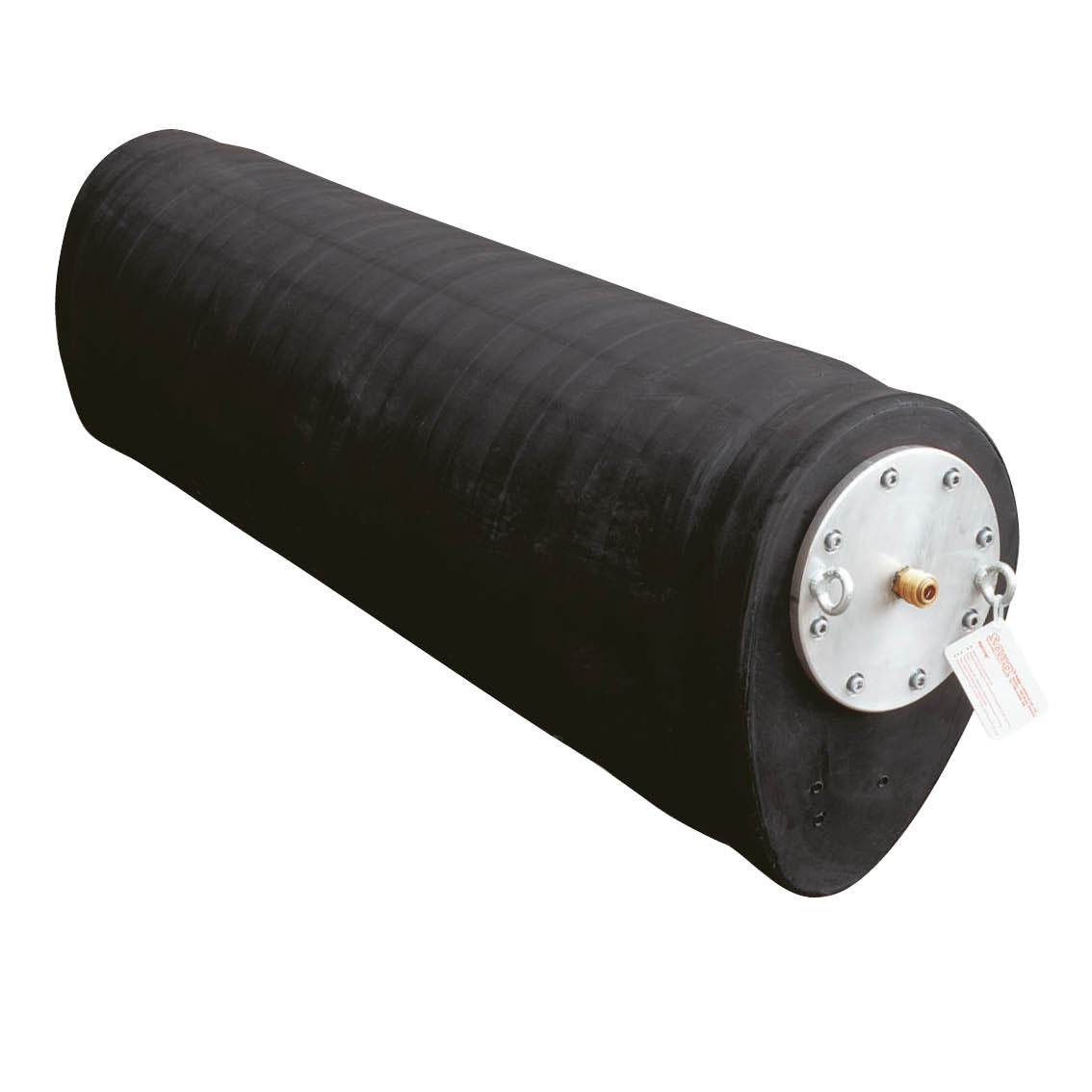

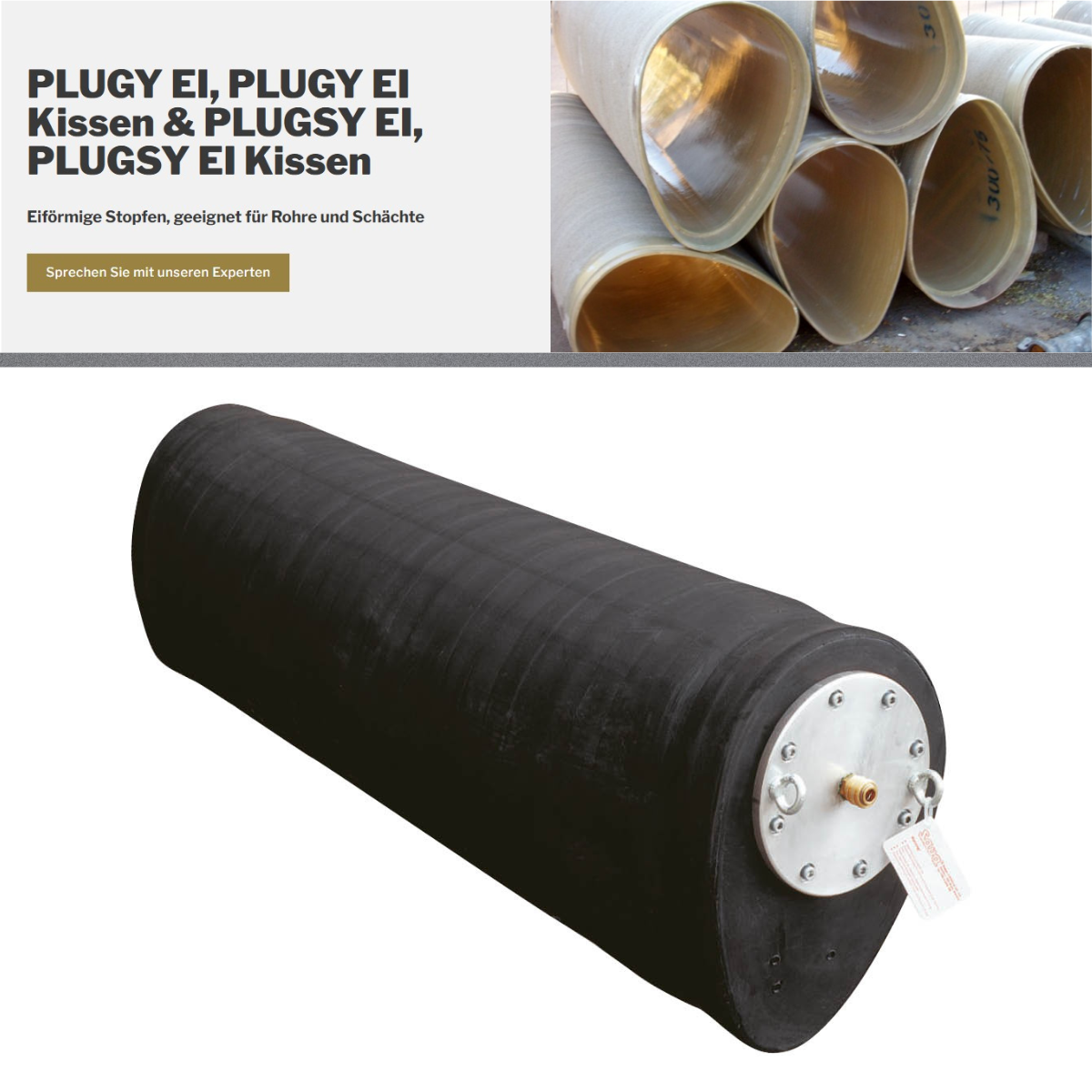

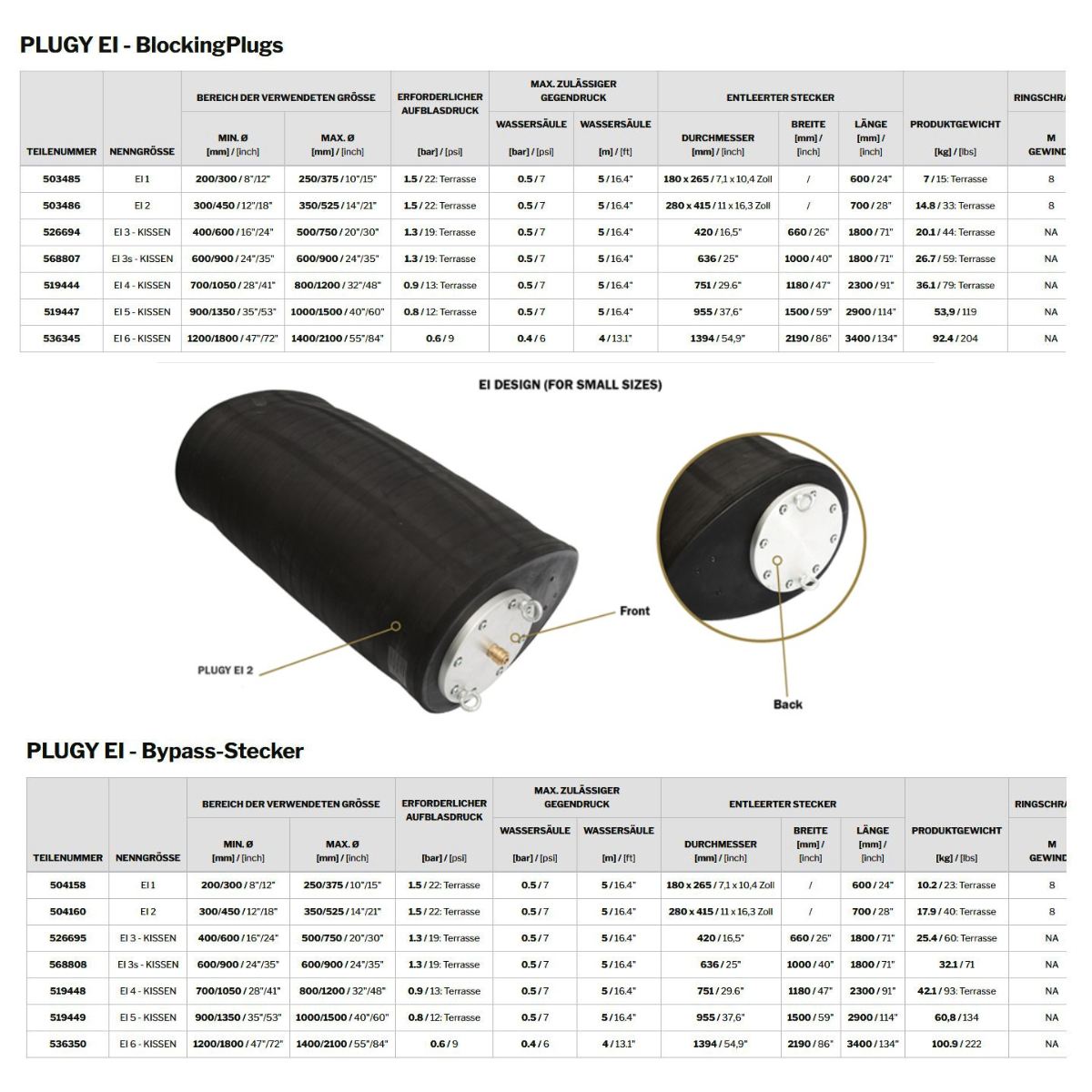

Pipe shut-off bladder Plugy EI 3s, 600/900, egg-shaped

d

- Pipe diameter: Ø: 600/900 mm
- Operating pressure: 1.3 bar
- Diameter: 636 mm
- Length: 1000 mm
- Weight: 26.7 kg
- Bubbles: quick coupling
- Cushion: Geka coupling
- Internal thread on both sides

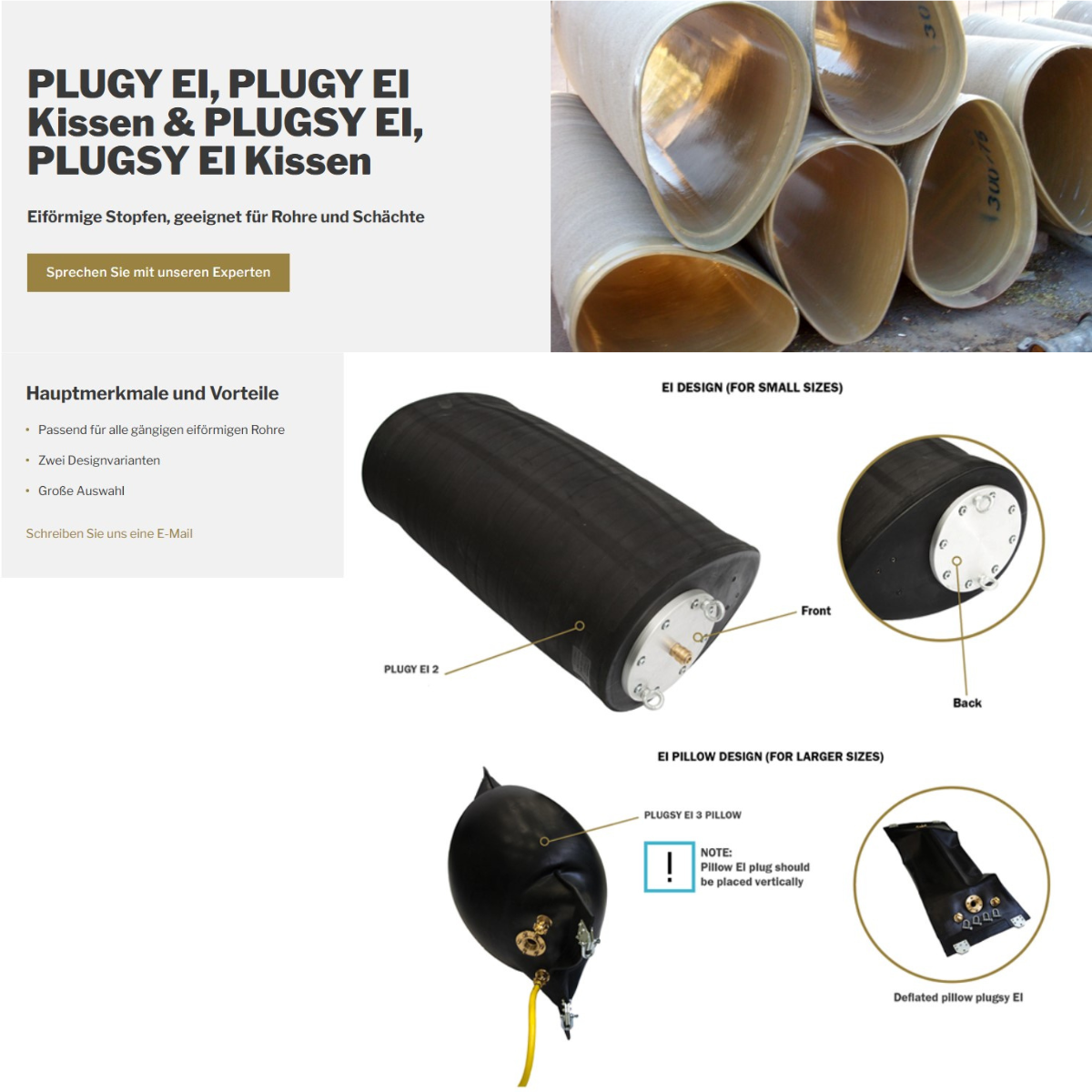

Egg-shaped through-hole bubbles & through-hole cushions - Flexible & efficient for
small dimensions
Our egg-shaped through-bubbles and through-cushions are the ideal
Solution to temporarily block pipes with wastewater flow safely.

Perfect fit for different pipe diameters:
DN 200 - 525 mm: Specially shaped egg-shaped through-holes
DN 400 - 2100 mm: Robust passage cushions for larger dimensions

The flexible material allows folding to a minimum, so that the
Installation is even possible through a 600 mm rehabilitation shaft.

The first two sizes are specially adapted to the pipe shape.
Larger dimensions are pillow-shaped, which makes installation in drains easier.

Equipment bladders:
-Only suitable for egg-shaped pipes
-Compressed air connection with quick coupling
-Towing eyes on both sides

Pillow features:
-Highly flexible and completely foldable
-Compressed air connection with Geka coupling
-Towing eyes on both sides
