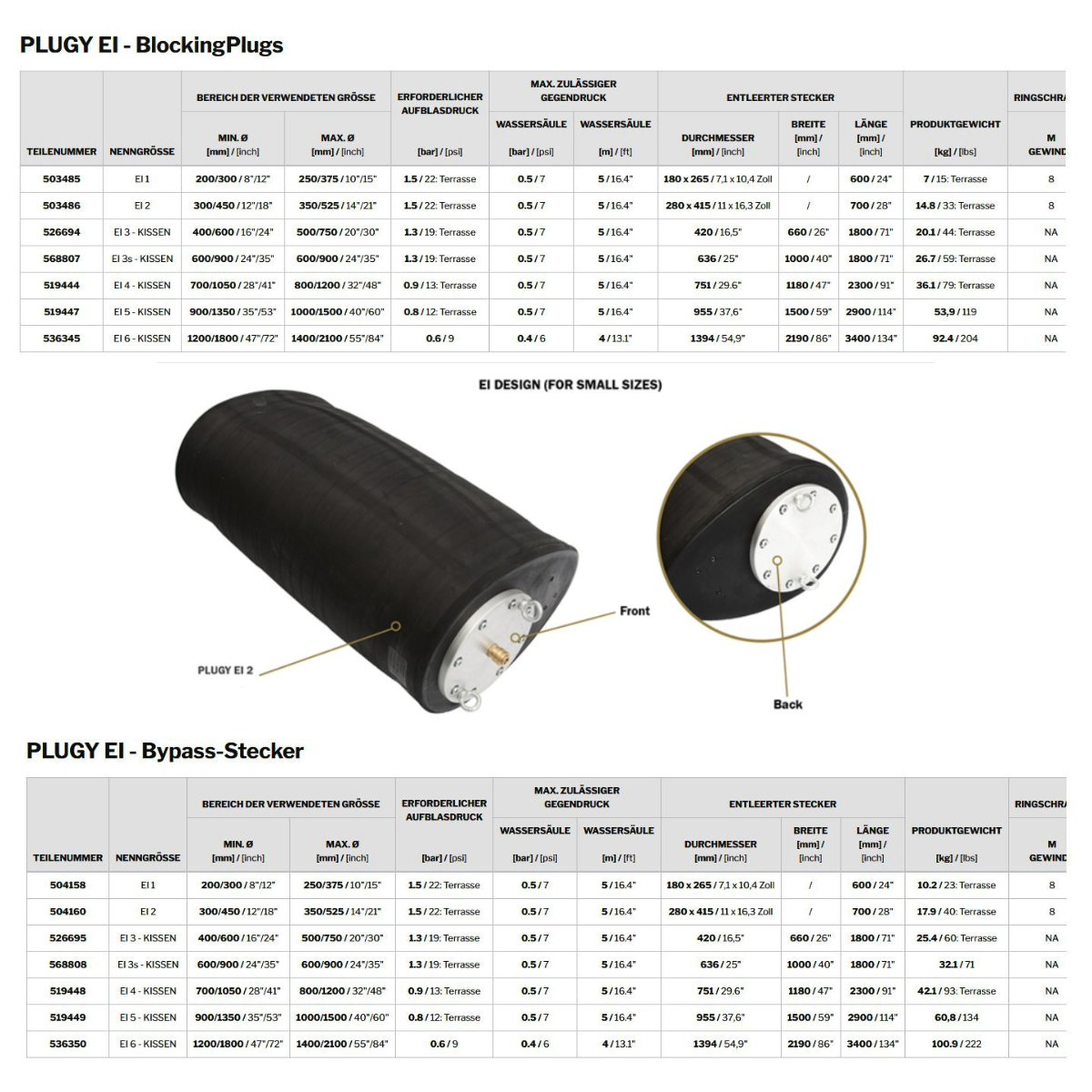

Pipe test bladder Plugsy type EI5, 900/1350, 1000/1500, egg-shaped

- Pipe diameter: Min Ø: 900/1350 mm
- Pipe diameter: Max Ø: 1000/1500 mm
- Operating pressure: 0.5 bar
- Diameter: 955 mm
- Width: 1500 mm
- Length: 2900 mm
- Weight: 60.8 kg
- Bubbles: quick coupling
- Cushion: Geka coupling
- Internal thread on both sides

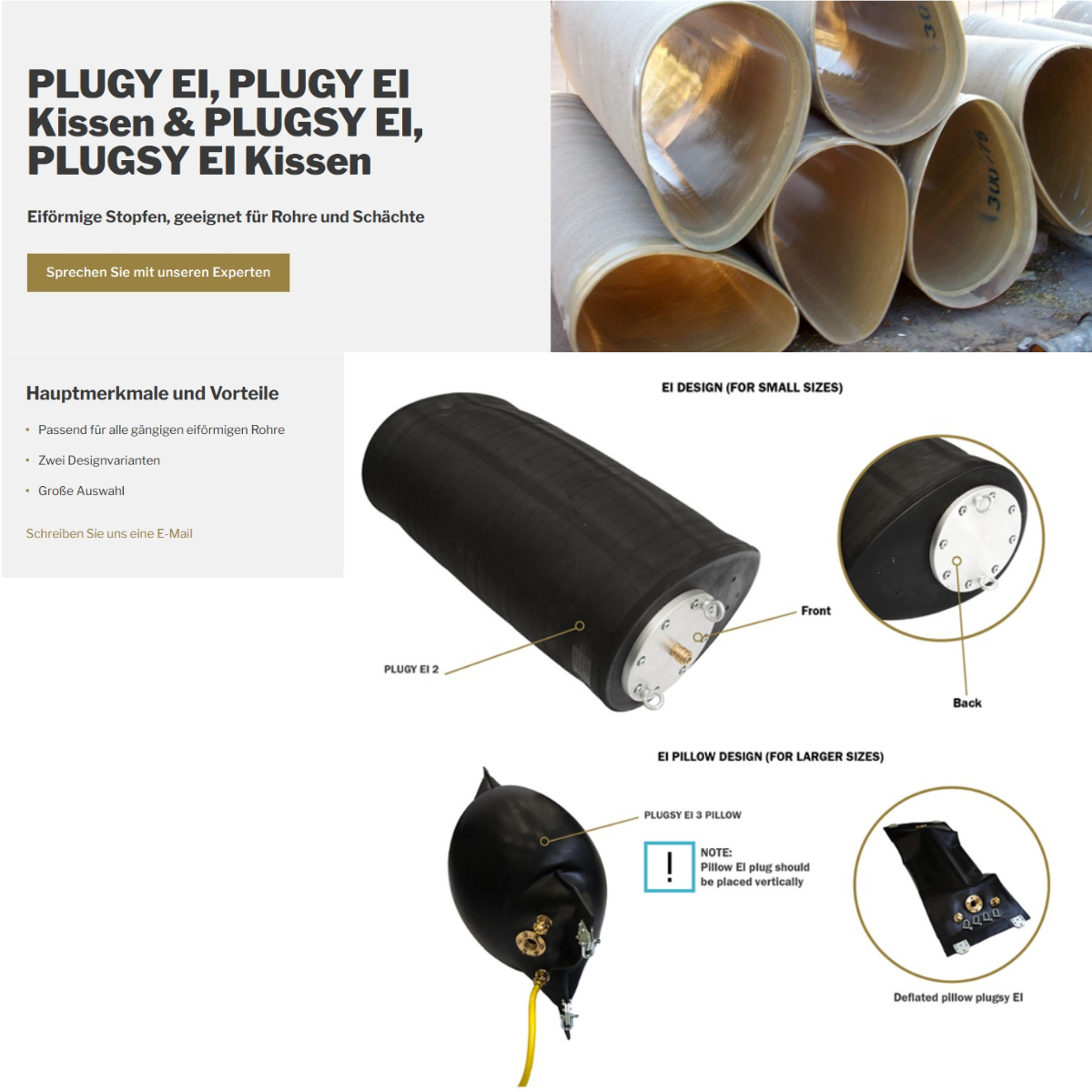

Egg-shaped through-hole bubbles & through-hole cushions - Flexible & efficient for
small dimensions

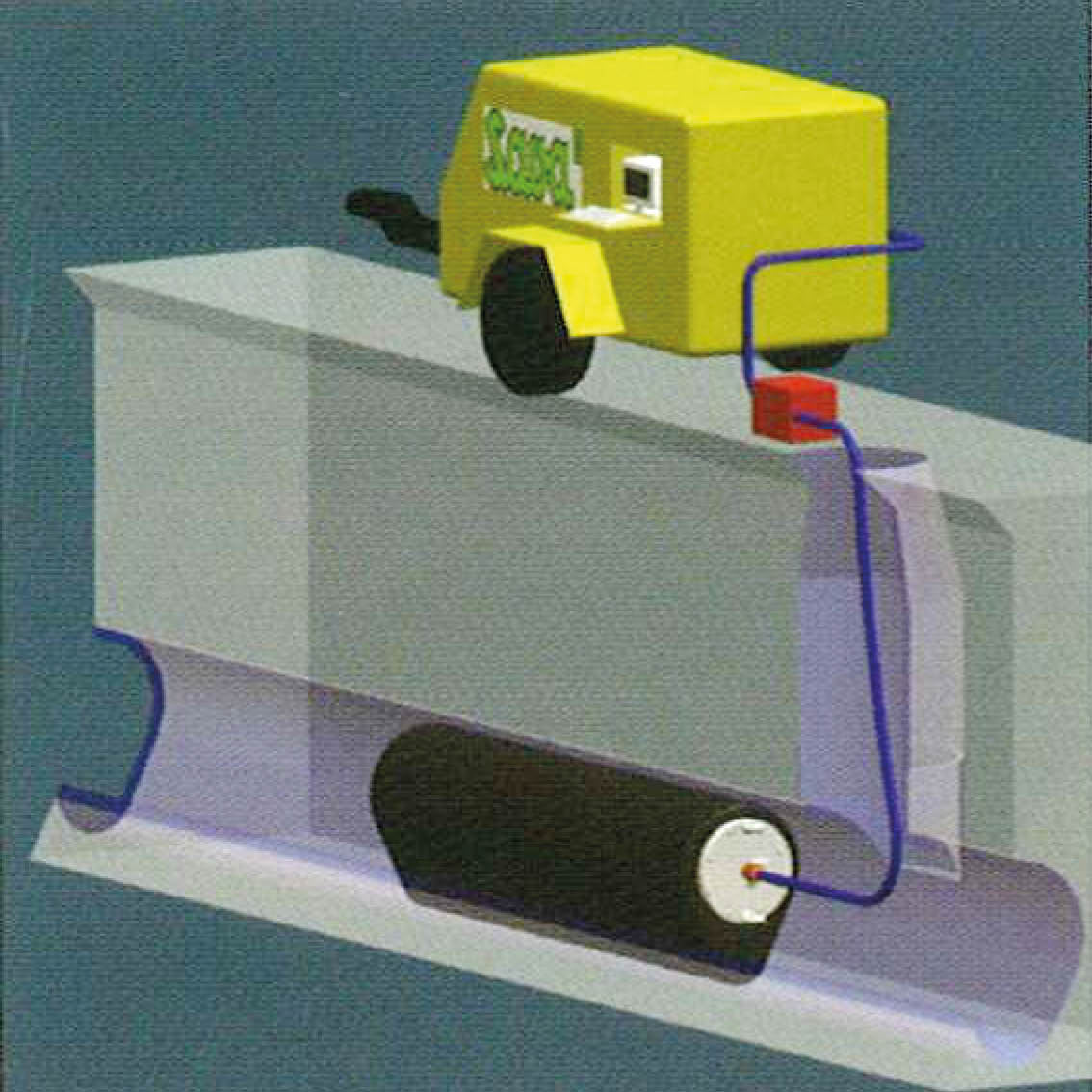

Our egg-shaped through-bubbles and through-cushions are the ideal
Solution to temporarily block pipes with wastewater flow safely.

Perfect fit for different pipe diameters:
DN 200 - 525 mm: Specially shaped egg-shaped through-holes
DN 400 - 2100 mm: Robust passage cushions for larger dimensions

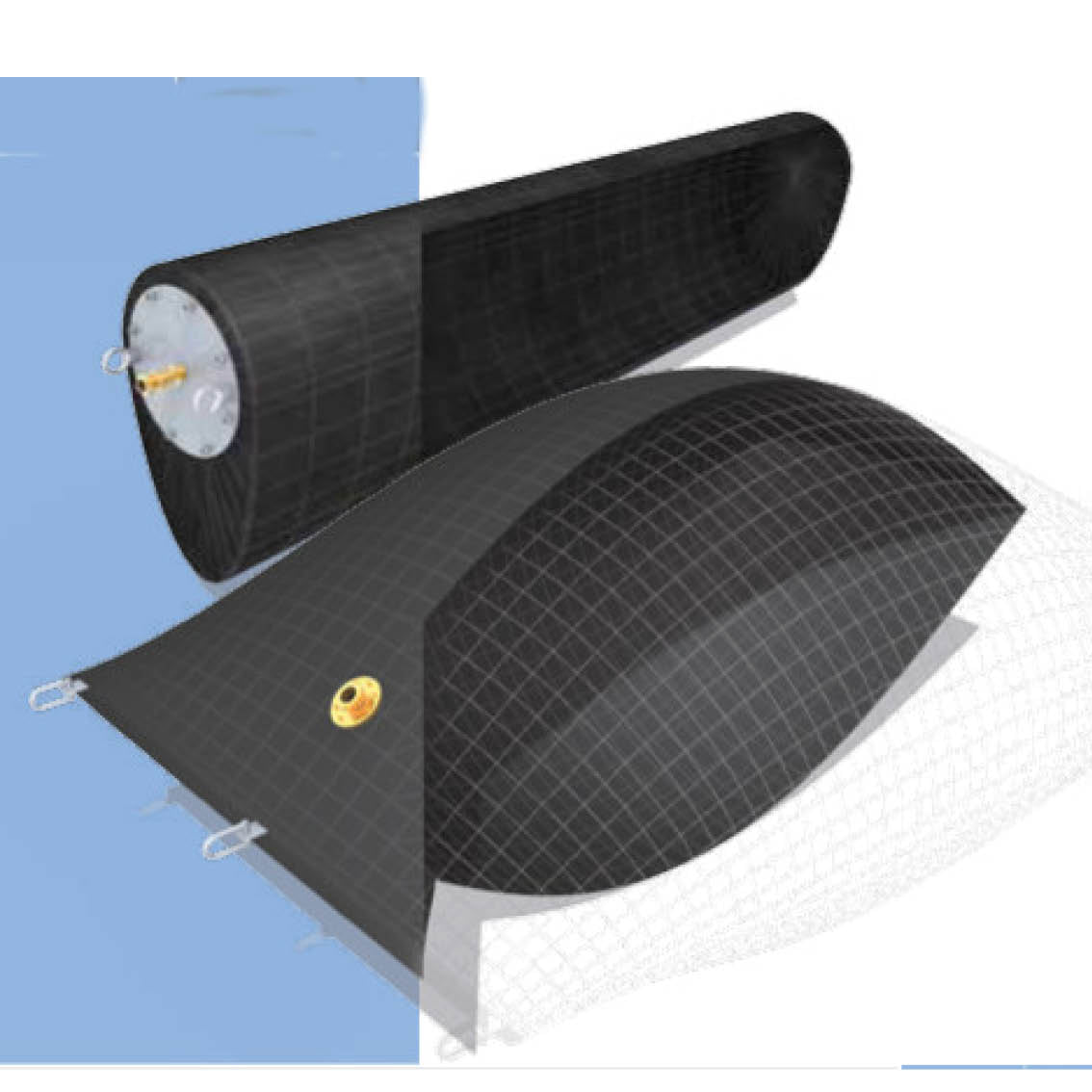

The flexible material allows folding to a minimum, so that the
Installation is even possible through a 600 mm rehabilitation shaft.

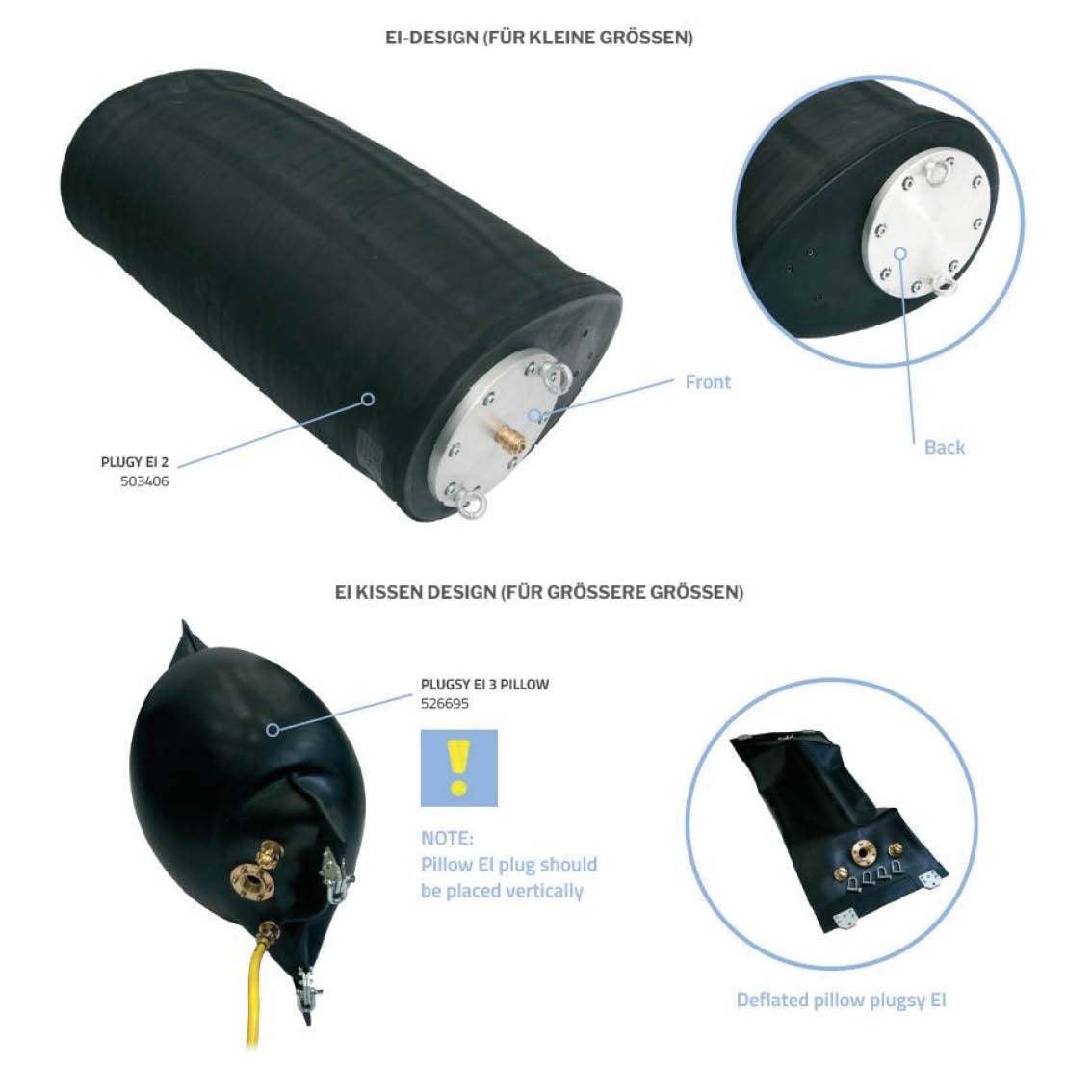

The first two sizes are specially adapted to the pipe shape.

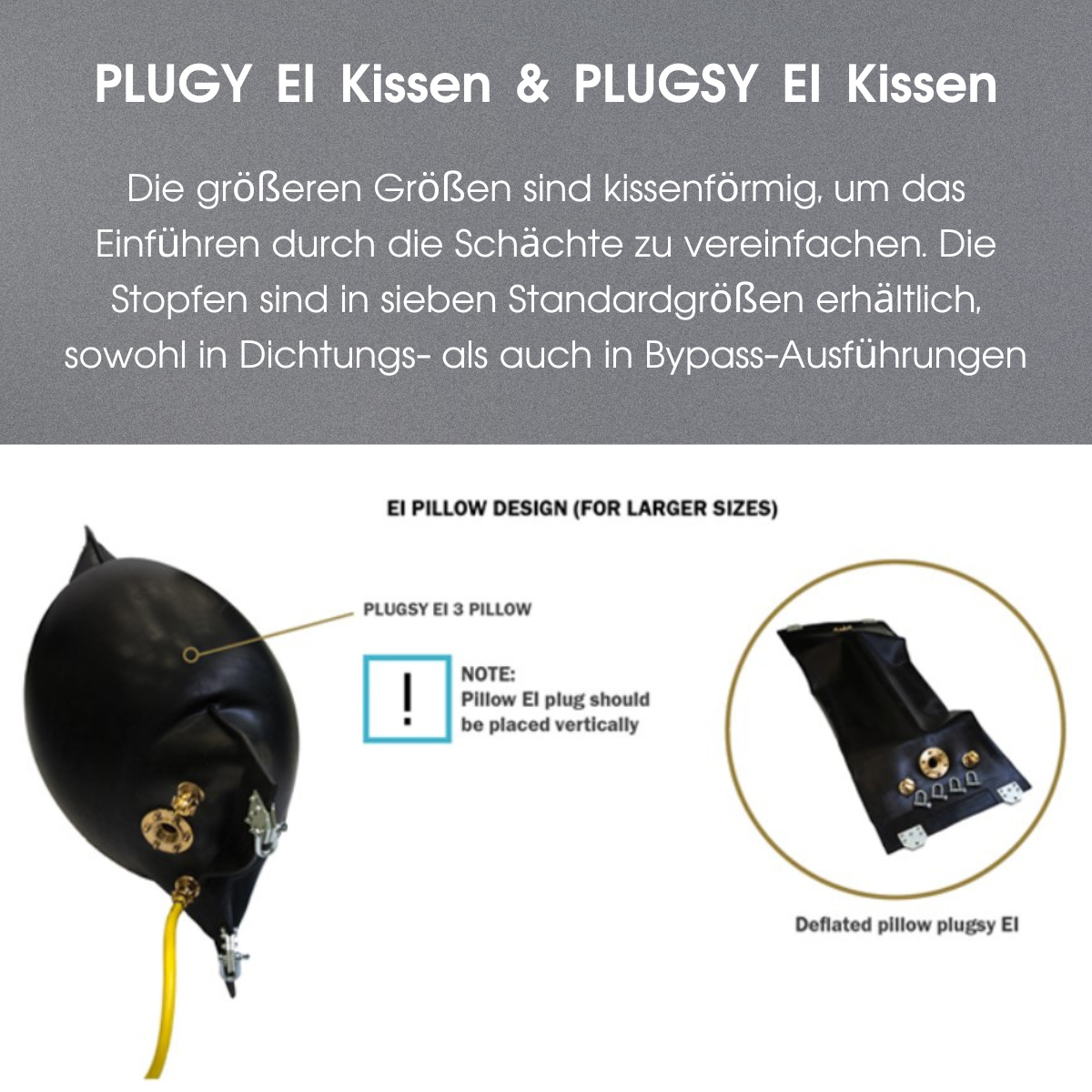

Larger dimensions are pillow-shaped, which makes installation in drains easier.

Equipment bladders:
-Only suitable for egg-shaped pipes
-Compressed air connection with quick coupling
-Towing eyes on both sides

Pillow features:
-Highly flexible and completely foldable
-Compressed air connection with Geka coupling
-Towing eyes on both sides
