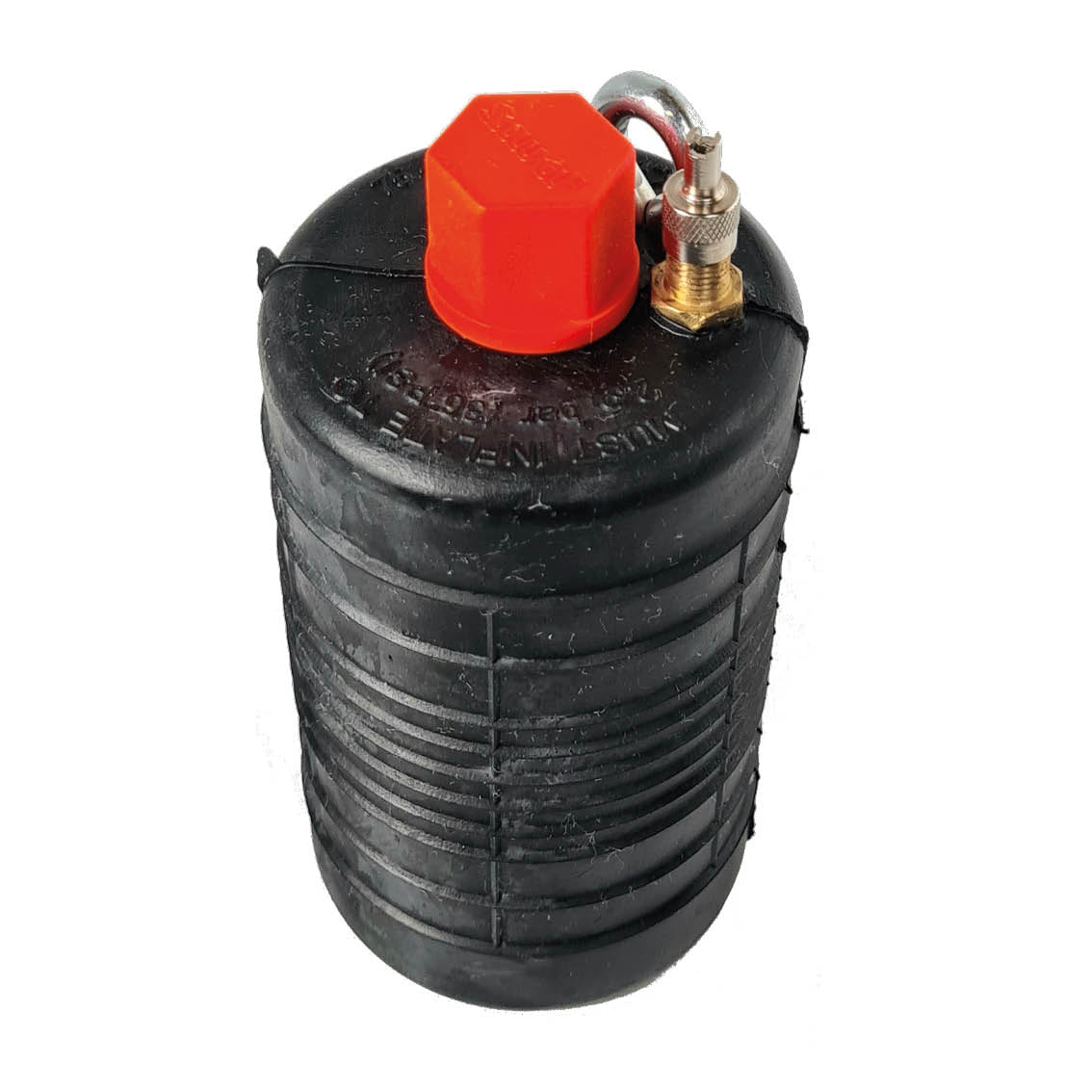

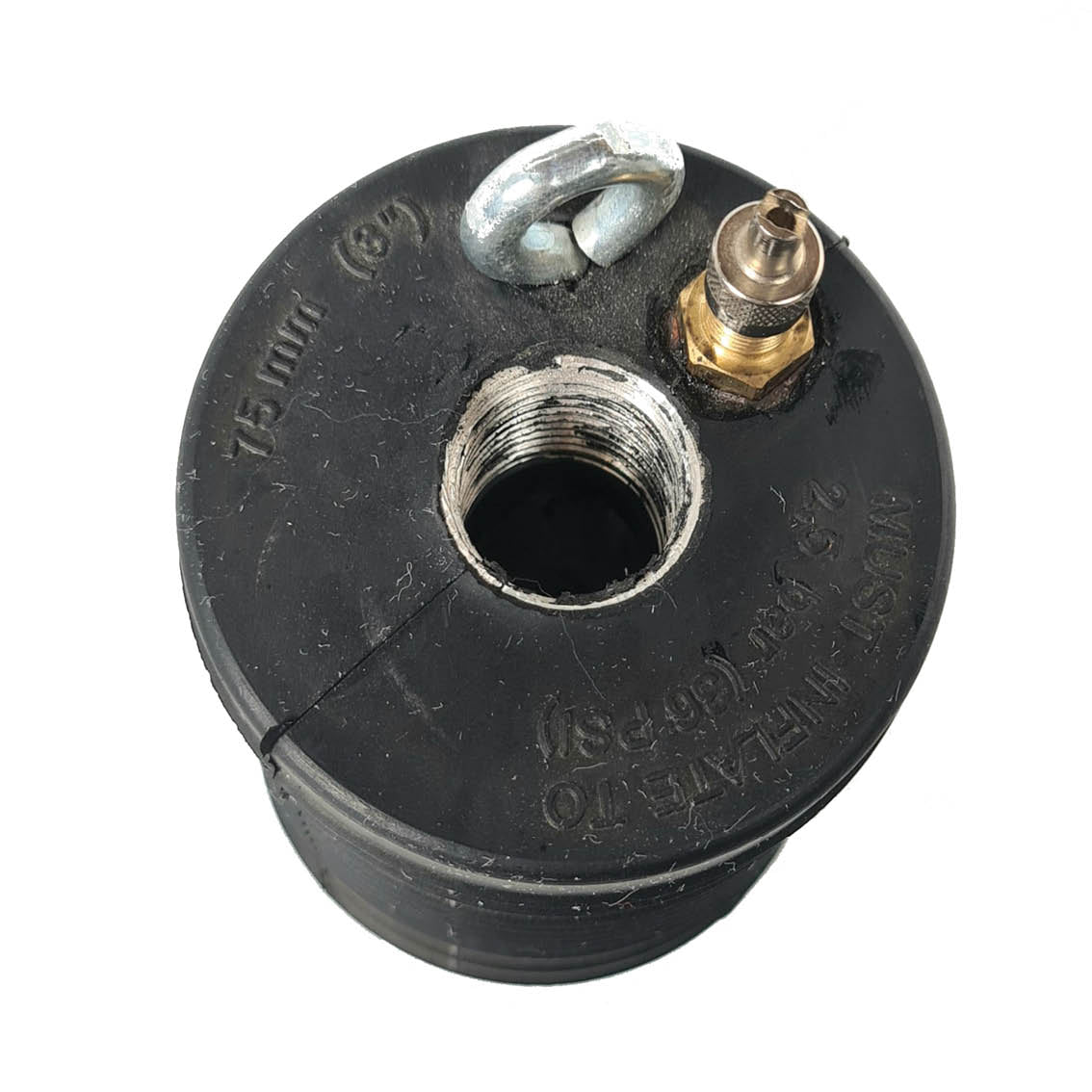

Pipe test bladder Plugsy S3-4 Ø 75-100 mm, passage 1/2"

- Pipe diameter: DN 71-102 mm
- Passage: 1/2"
- Length: 100 mm
- Operating pressure: 2.5 bar
- Filling valve: tire valve
- Diameter: 70 mm

SAVA PLUGSY S short test bladders (bypass bladders) for testing piping systems Since they are not reinforced with cord, they are highly flexible and dense Pipelines perfectly. The pipe bladders are equipped with a tire valve and can therefore be inflated with a standard tire inflator The eyebolt with chain and special handle allow for easy operation of the pipe bladder. Our test bladder/test cushion is an indispensable tool for Leak testing with air or water of pipelines in various areas. This passage bladder was specially designed to to enable reliable and efficient testing. Equipped with a Bypass system and practical quick couplings, this product offers everything what you need for precise and safe leak testing. Advantages and applications: - Carrying out leak tests in pipe systems according to DIN EN 1610, DWA etc. - Can also be used to shut off pipes Product highlights: - High quality and easy handling - Equipped with tire valve and eyelets - Optionally available in oil and chemical resistant version (on request) - available from 50 mm to 305 mm diameter - Made in the EU
