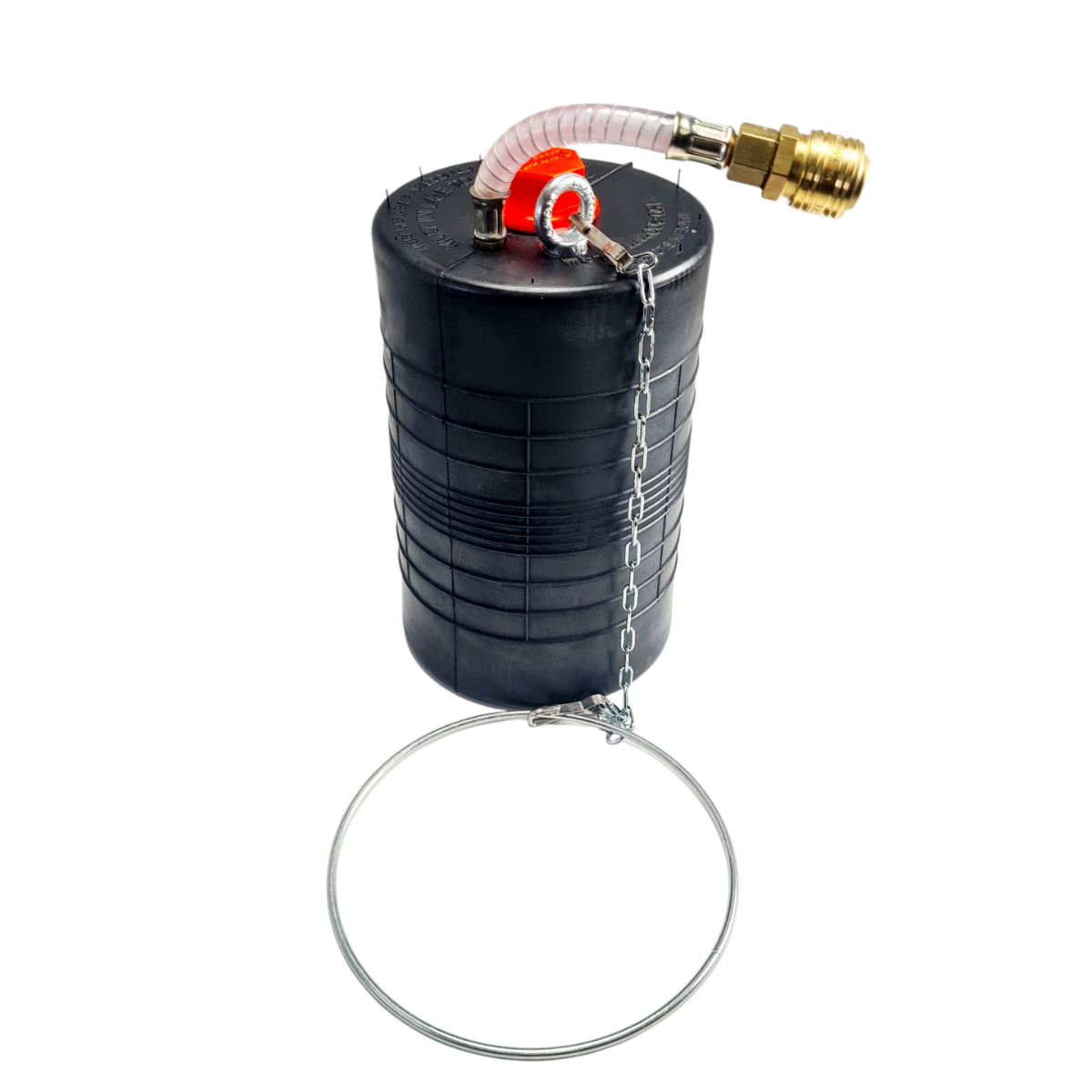

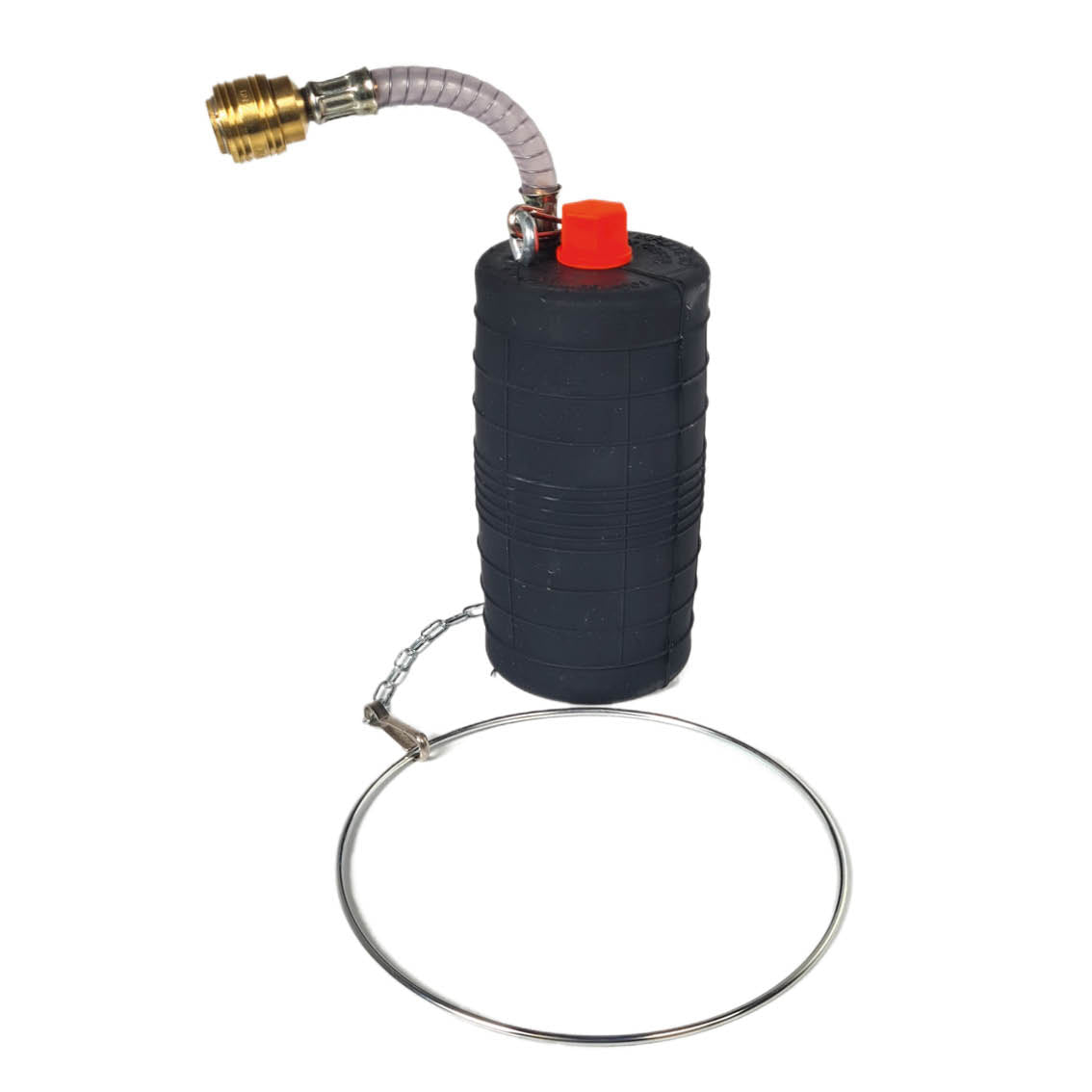

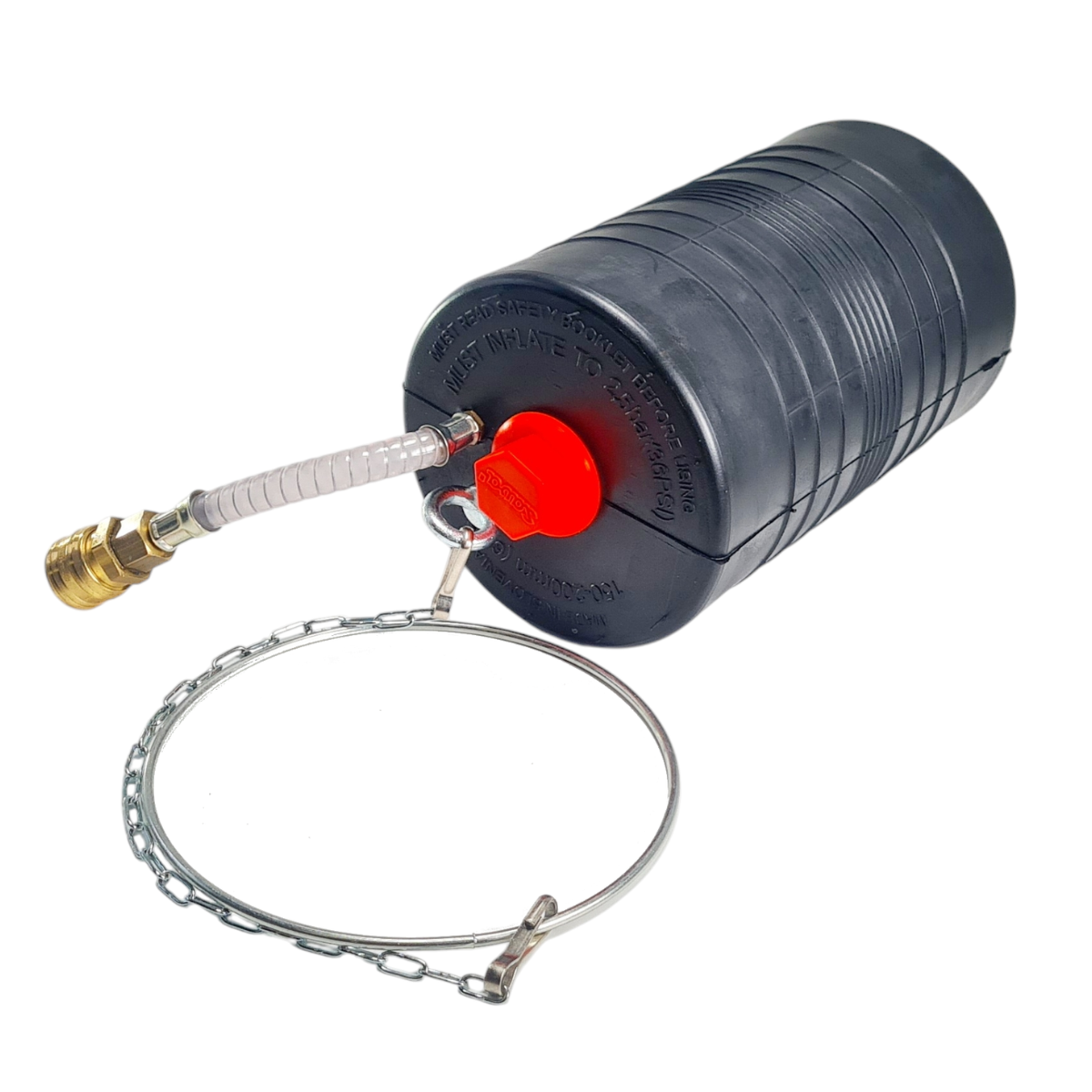

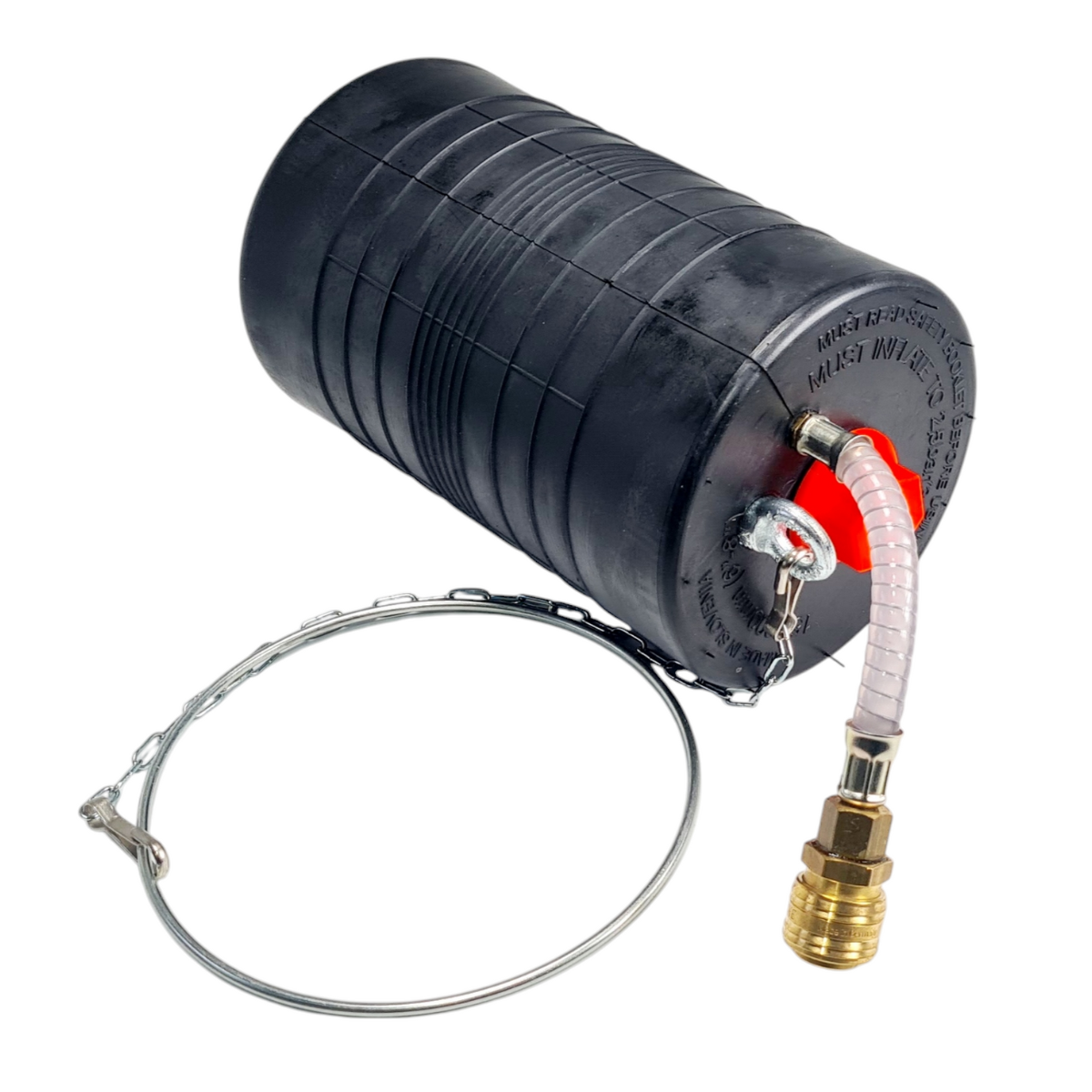

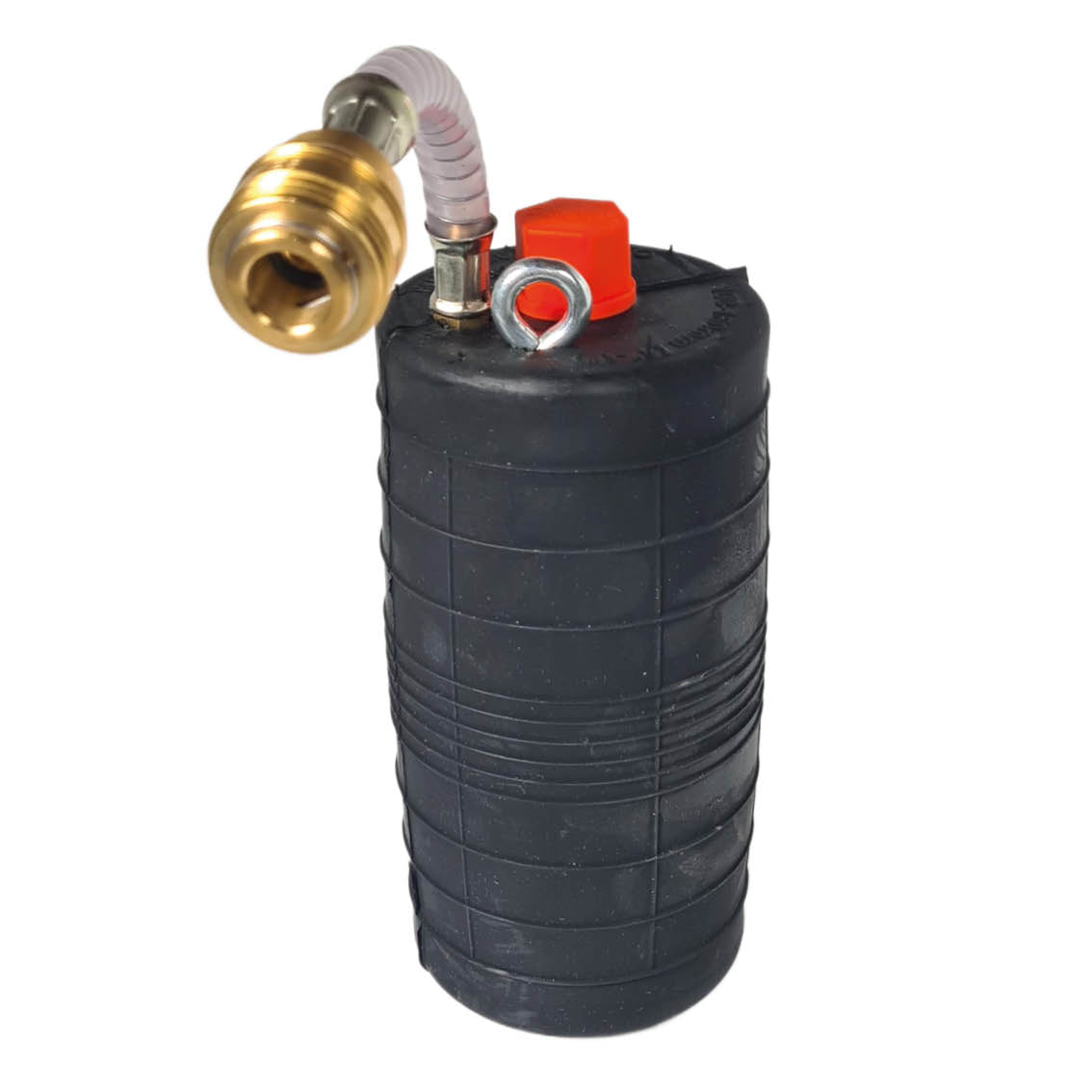

Pipe test bladder Plugsy S6-8 Ø 150-200 mm, with hose piece and compressed air coupling

- Pipe diameter: DN 143-204 mm
- Passage: 1"
- Length: 220 mm
- Operating pressure: 2.5 bar
- Filling valve: compressed air coupling (attached to a short piece of hose)
- Diameter: 142 mm

SAVA PLUGSY S short test bladders (bypass bladders) for testing piping systems Since they are not reinforced with cord, they are highly flexible and dense Pipelines perfectly. Equipped with a compressed air valve, the Test bladder allows quick and easy inflation and deflation. The eyebolt with chain and special handle allow easy operation of the Pipe bladder. Our test bladder/test cushion is an indispensable tool for Leak testing with air or water of pipelines in various areas. This passage bladder was specially designed to to enable reliable and efficient testing. Equipped with a Bypass system and practical quick couplings, this product offers everything what you need for precise and safe leak testing. Advantages and applications: - Carrying out leak tests in pipe systems according to DIN EN 1610, DWA etc. - Can also be used to shut off pipes Product highlights: - High quality and easy handling - Equipped with pneumatic coupling and eyelets - Optionally available in oil and chemical resistant version (on request) - available from 50 mm to 305 mm diameter - Made in the EU
