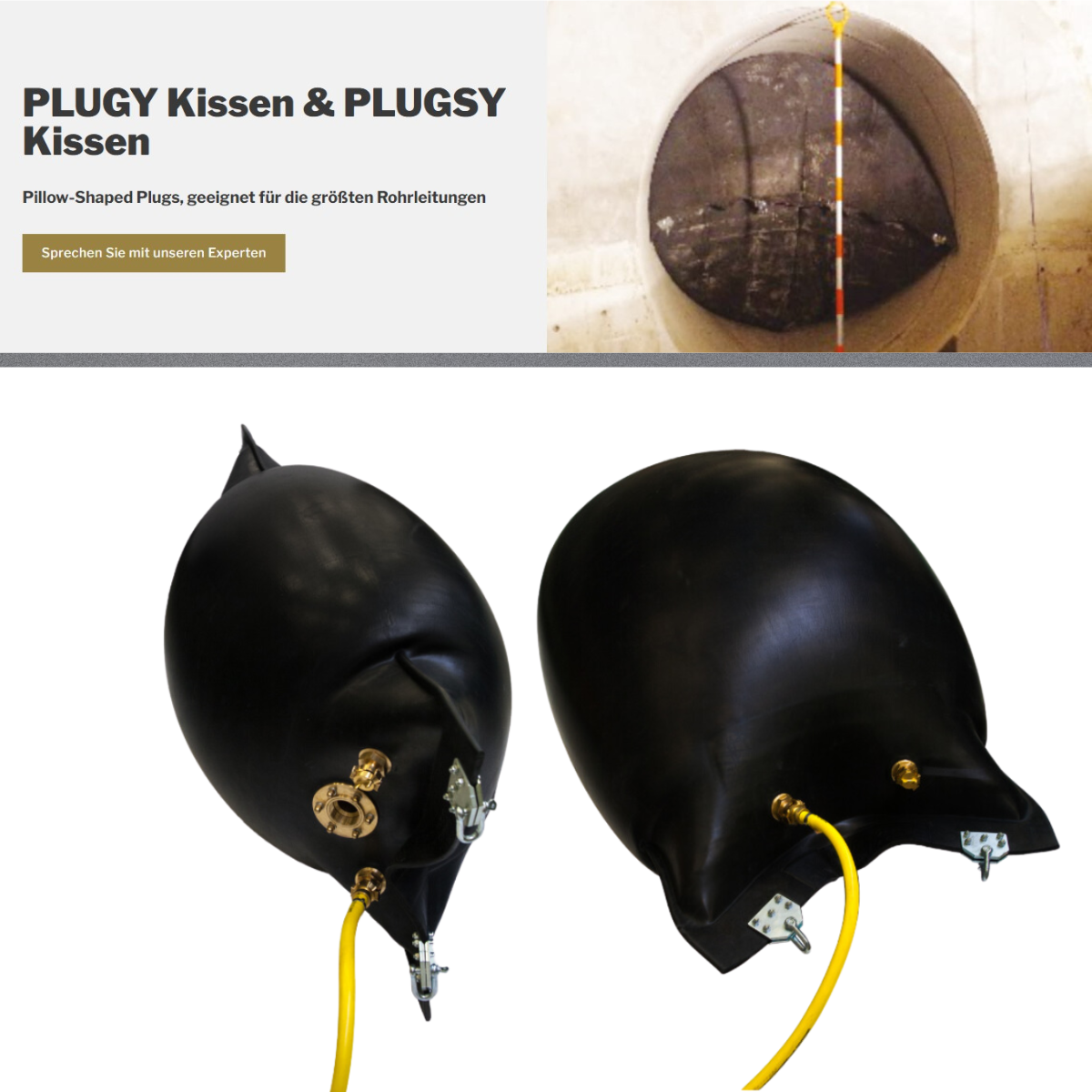

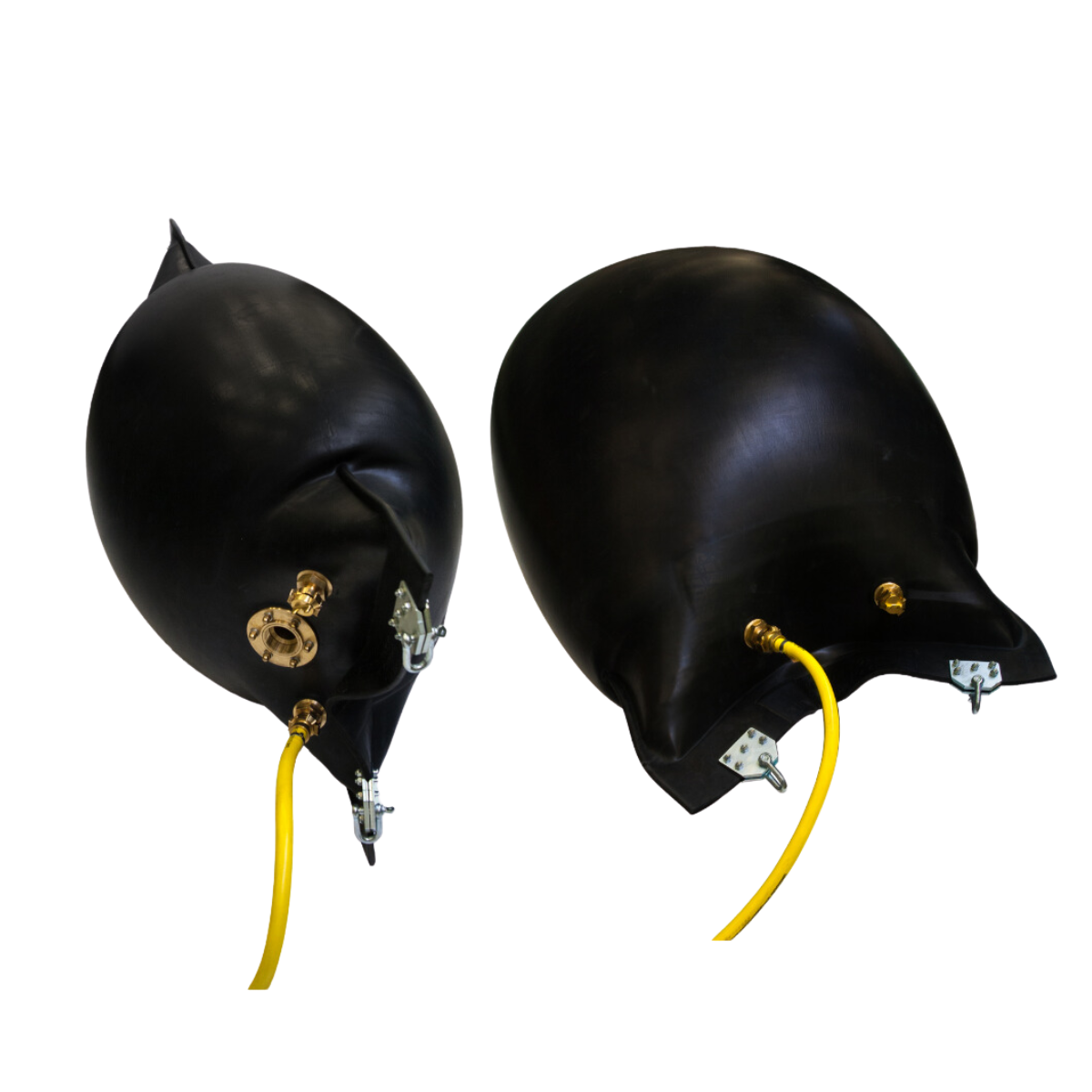

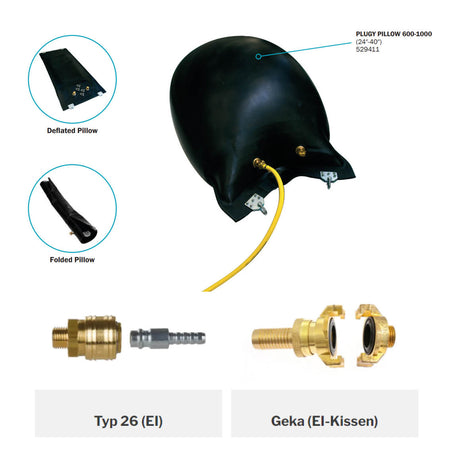

Pipe test bladder type Plugsy Pillow 800-1200, pillow-shaped

- Fits through a 600 mm (24") rehabilitation shaft

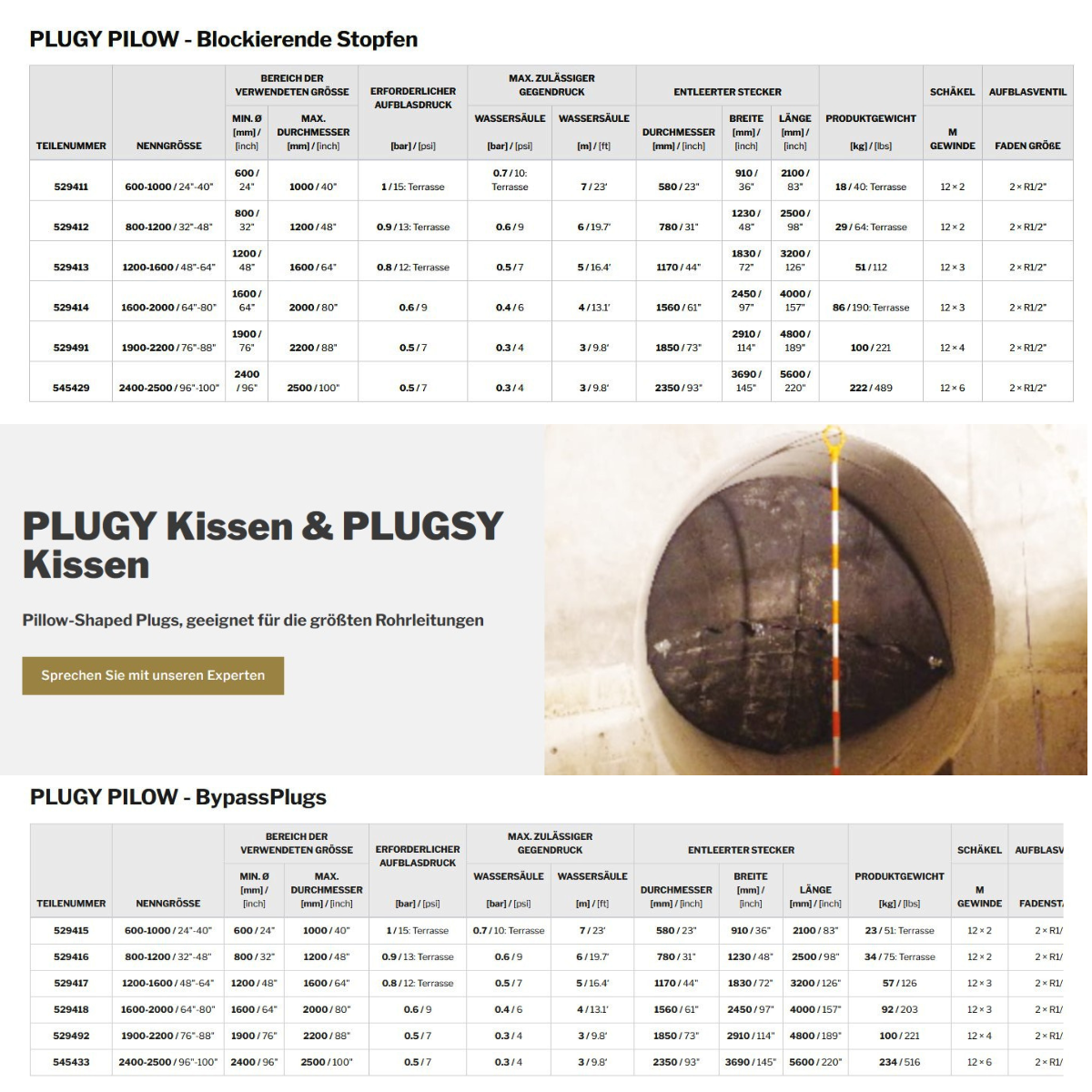

- Pipe diameter: 800-1200 mm
- Inflation pressure: 1 bar
- Diameter: 780 mm
- Width & Length: 1230 mm, 2500 mm
- Weight: 34 kg

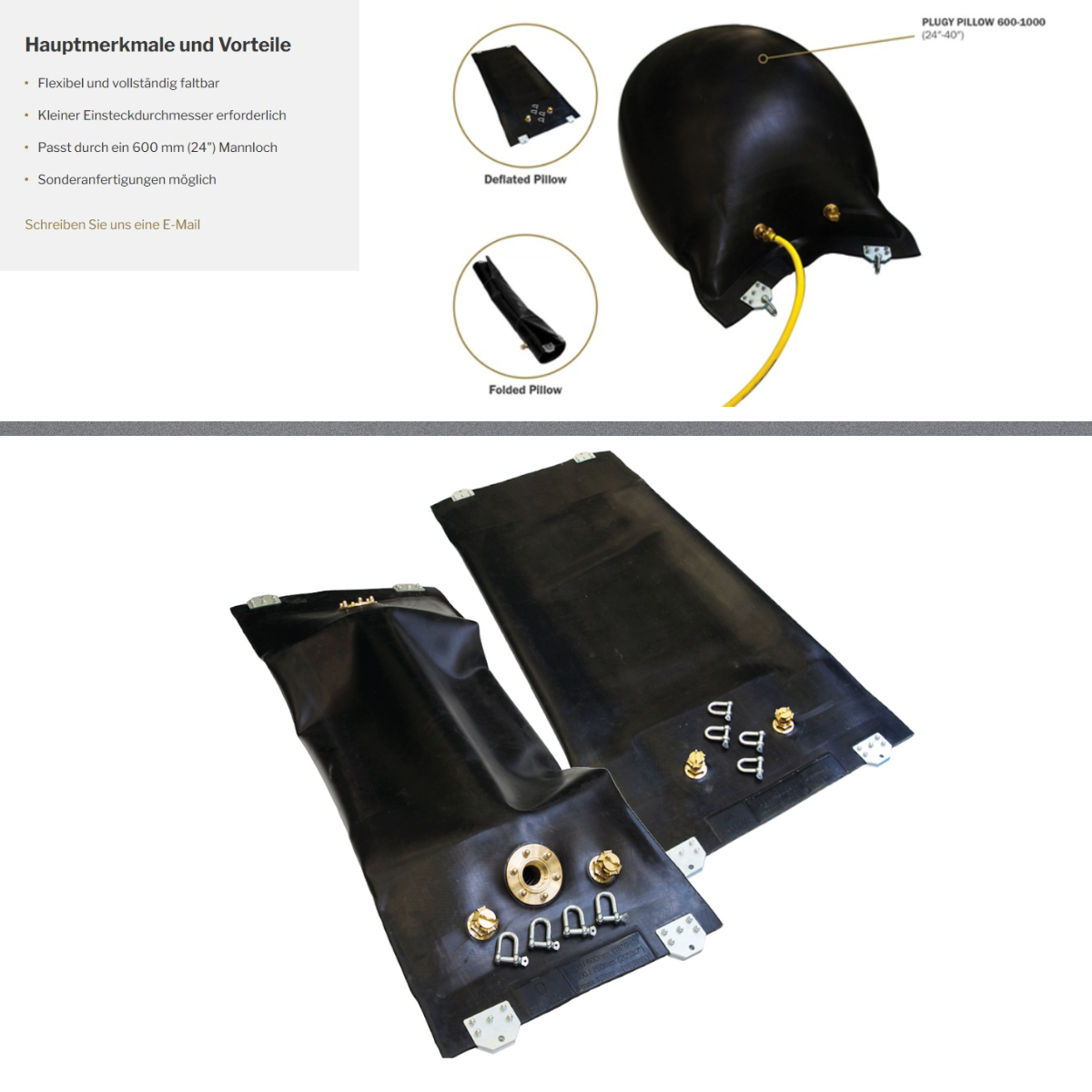

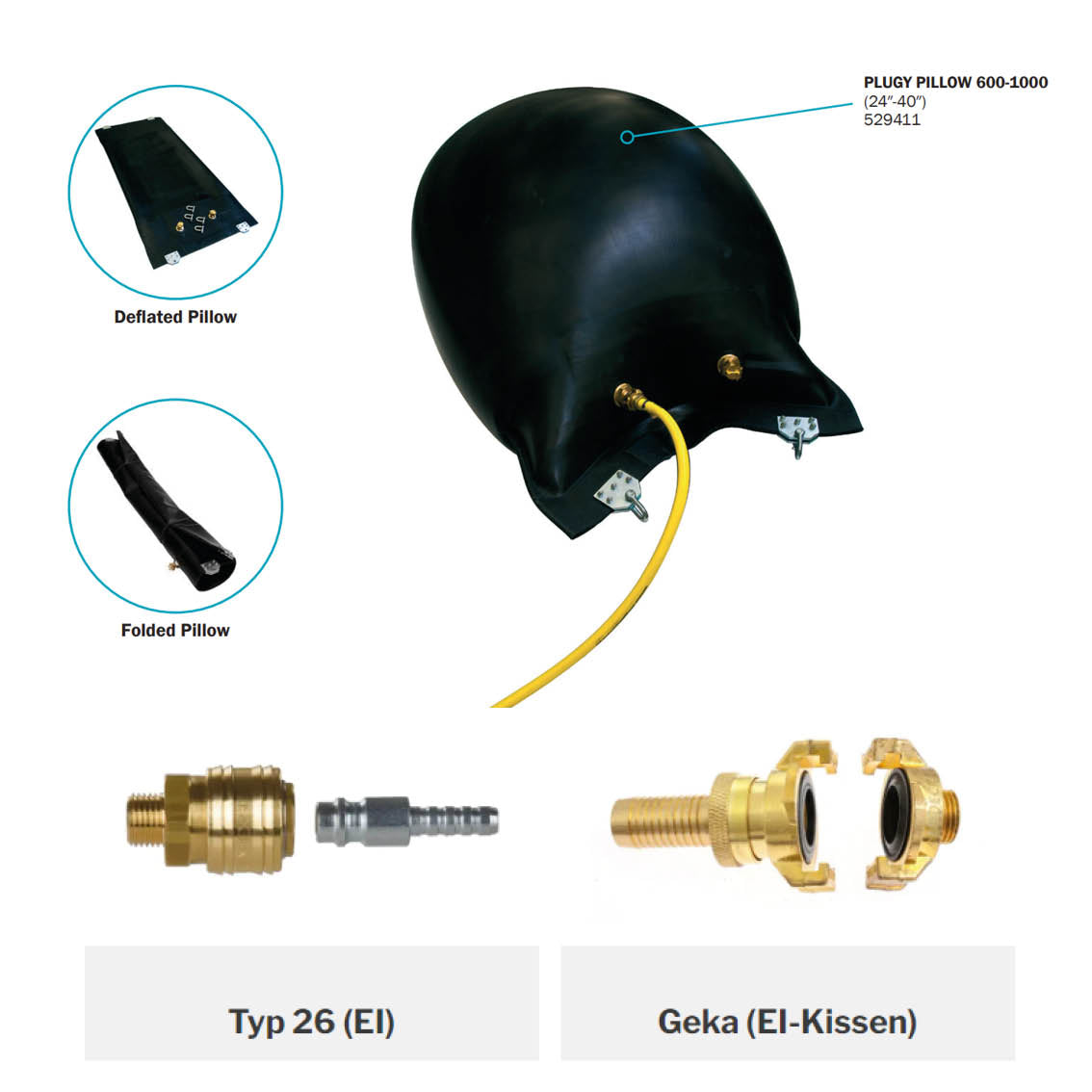

Cushion-shaped shut-off bladders are used for large pipe dimensions from 600 to 3000mm where the access to the pipe has a small diameter. Due to the design and use of flexible materials, the bladder folds down to a minimum and can be replaced by a 600mm (24") Compressed air supply via Geka coupling and Screwed-on fastening eyelets complete the robustness of these cushions. unique construction and the high-quality materials of Trelleborg pillow-shaped PLUGY PILLOW and PLUGSY PILLOW plugs ensure a low Weight and high flexibility in use and storage. These pillow-shaped shut-off bladders are suitable for the largest pipelines and can be individually adapted to any pipe diameter. -Fits through a 600 mm (24") rehabilitation shaft -Flexible and fully foldable -Compressed air connection with Geka coupling -Custom-made products possible
