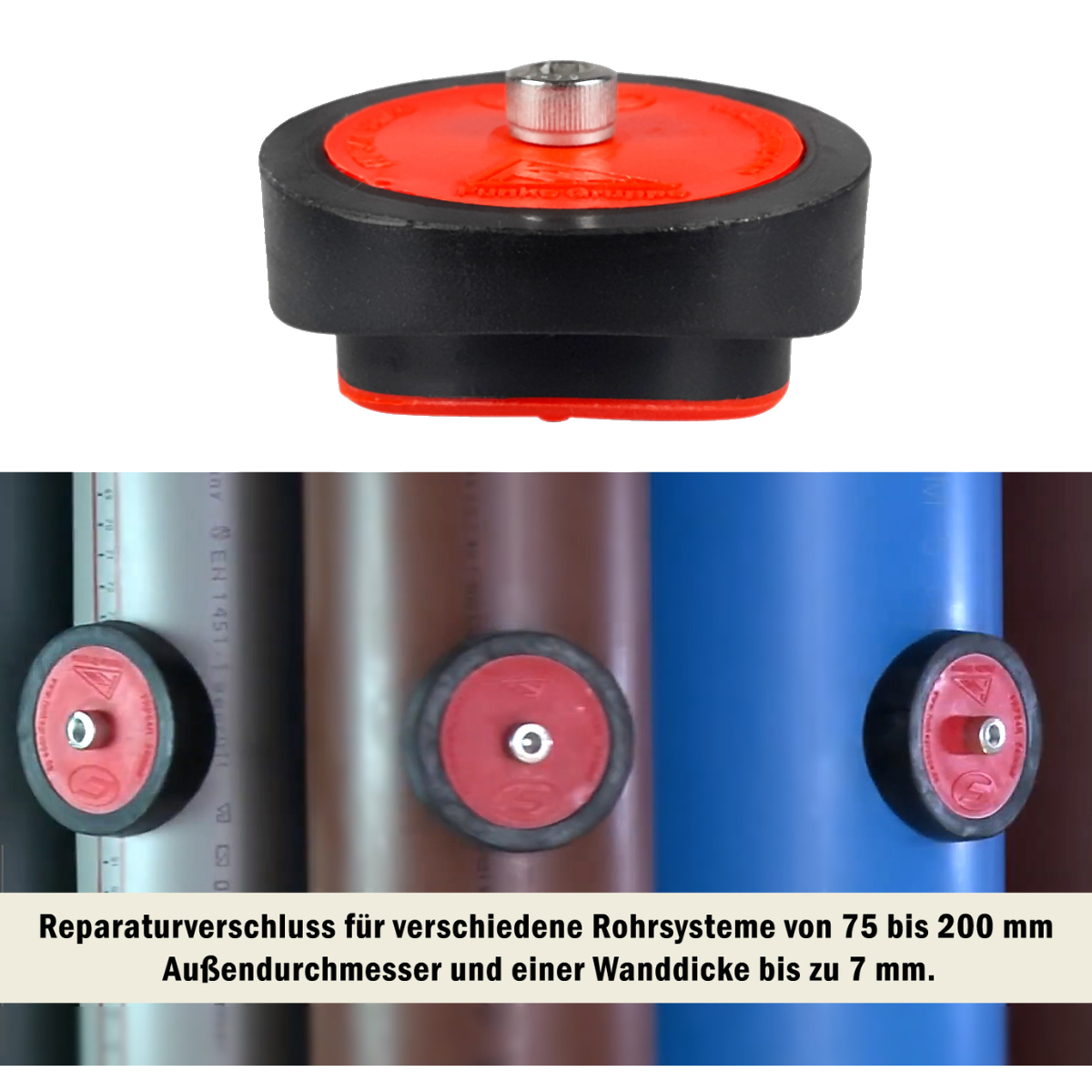

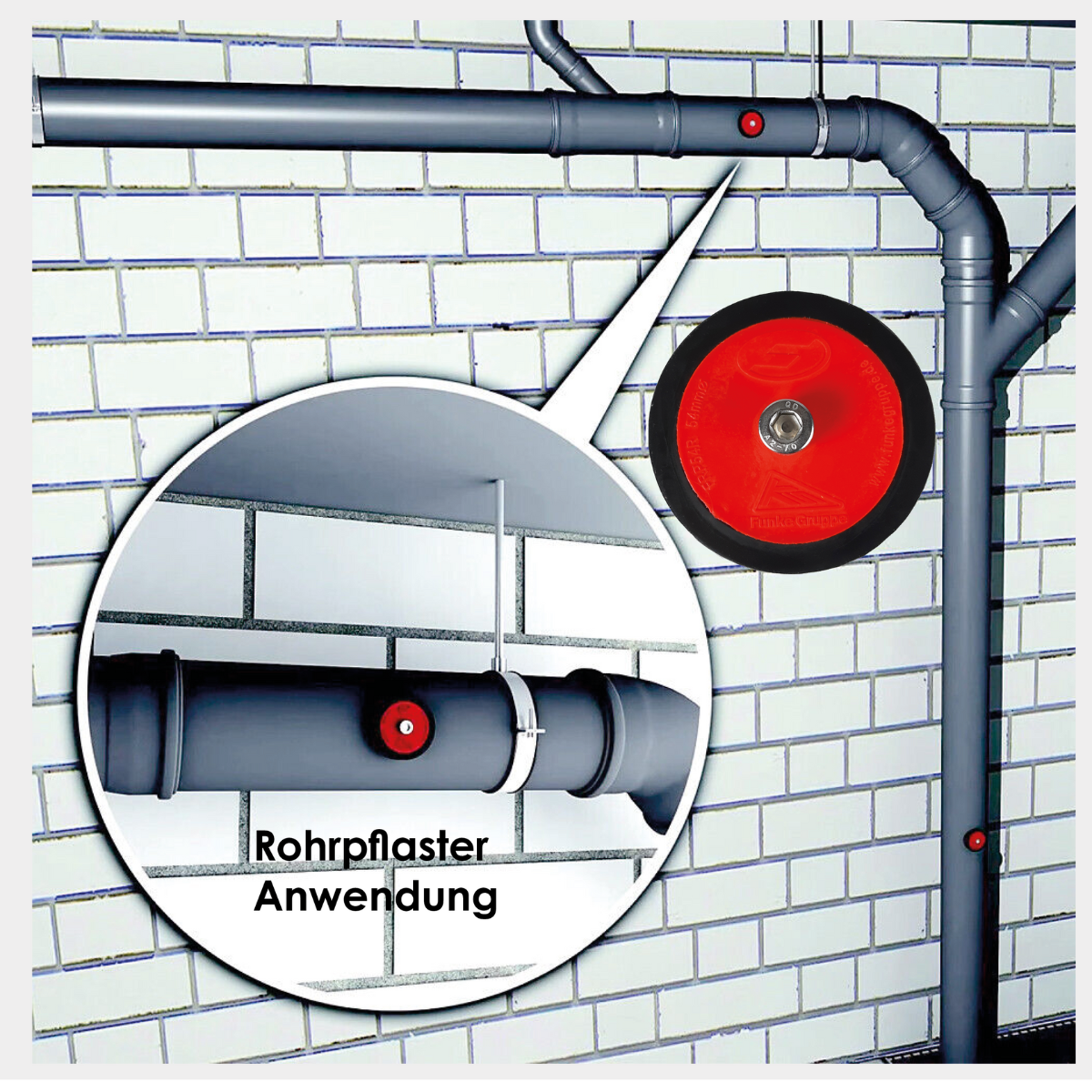

The pipe patch is ideally suited as an inspection or cleaning opening or
as a repair closure for pressureless wastewater and rainwater pipes from 75 to
200 mm outer diameter and a wall thickness of up to 7 mm. The pipe patch can
both as a subsequent inspection opening in case of blockages / deposits in the
Pipe inserted
can also replace a cleaning opening in suspended cables.
If pipes are accidentally drilled under plaster / concrete, it can be
Repair patches can be used (as a sealing plug for unplanned
holes in the pipe).
The advantages are the quick and easy installation and the tightness up to 1
It is removable, reusable and can be installed or removed several times
become.

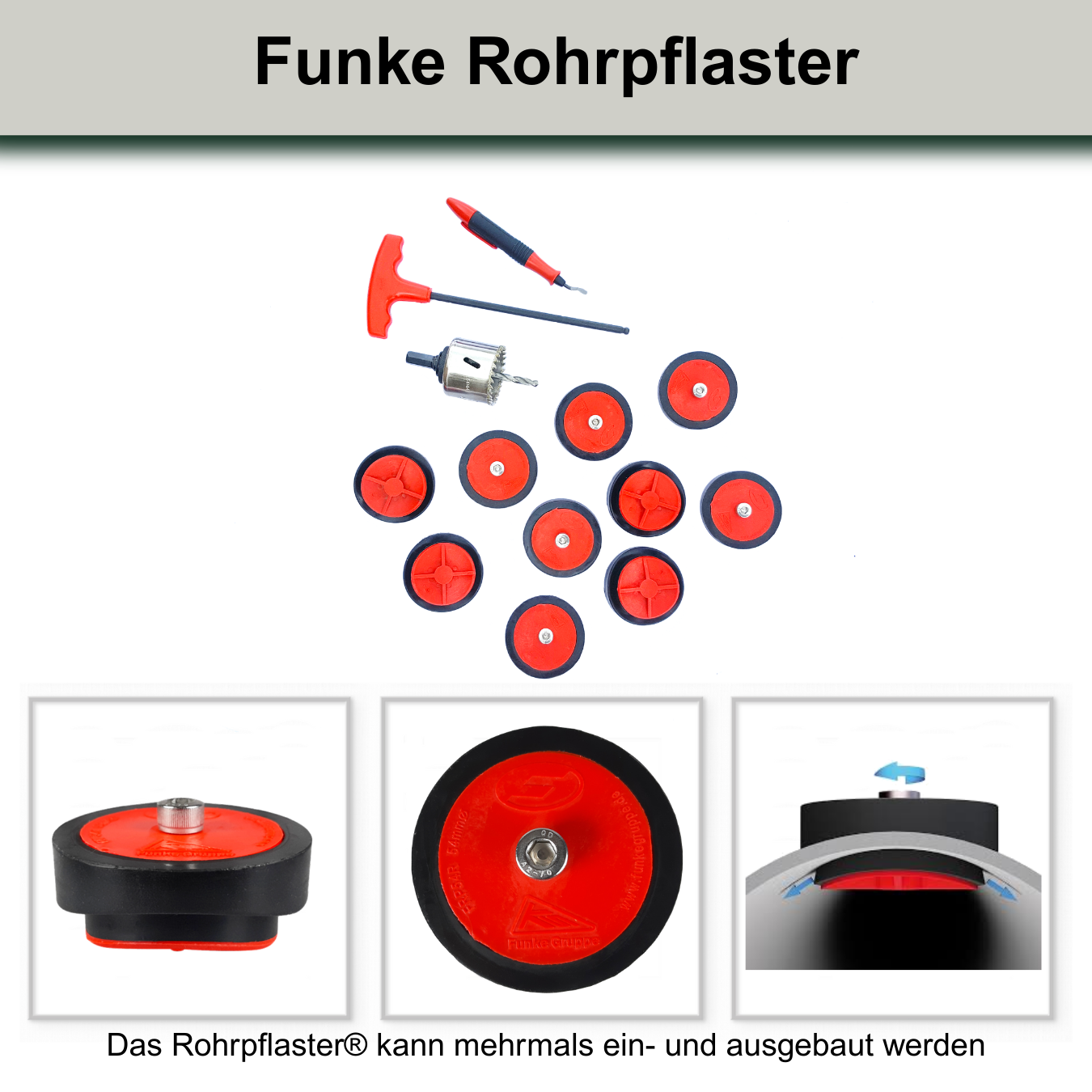

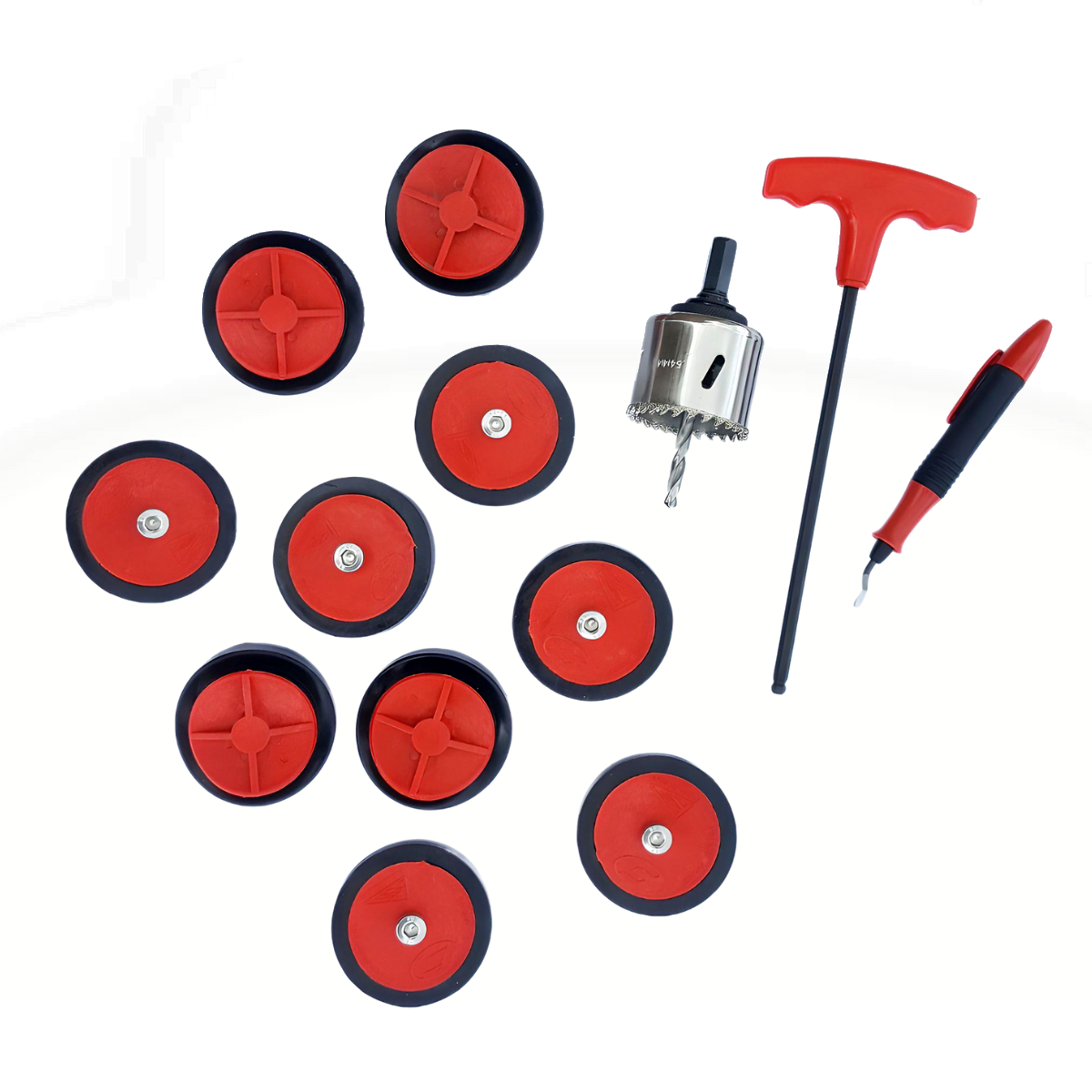

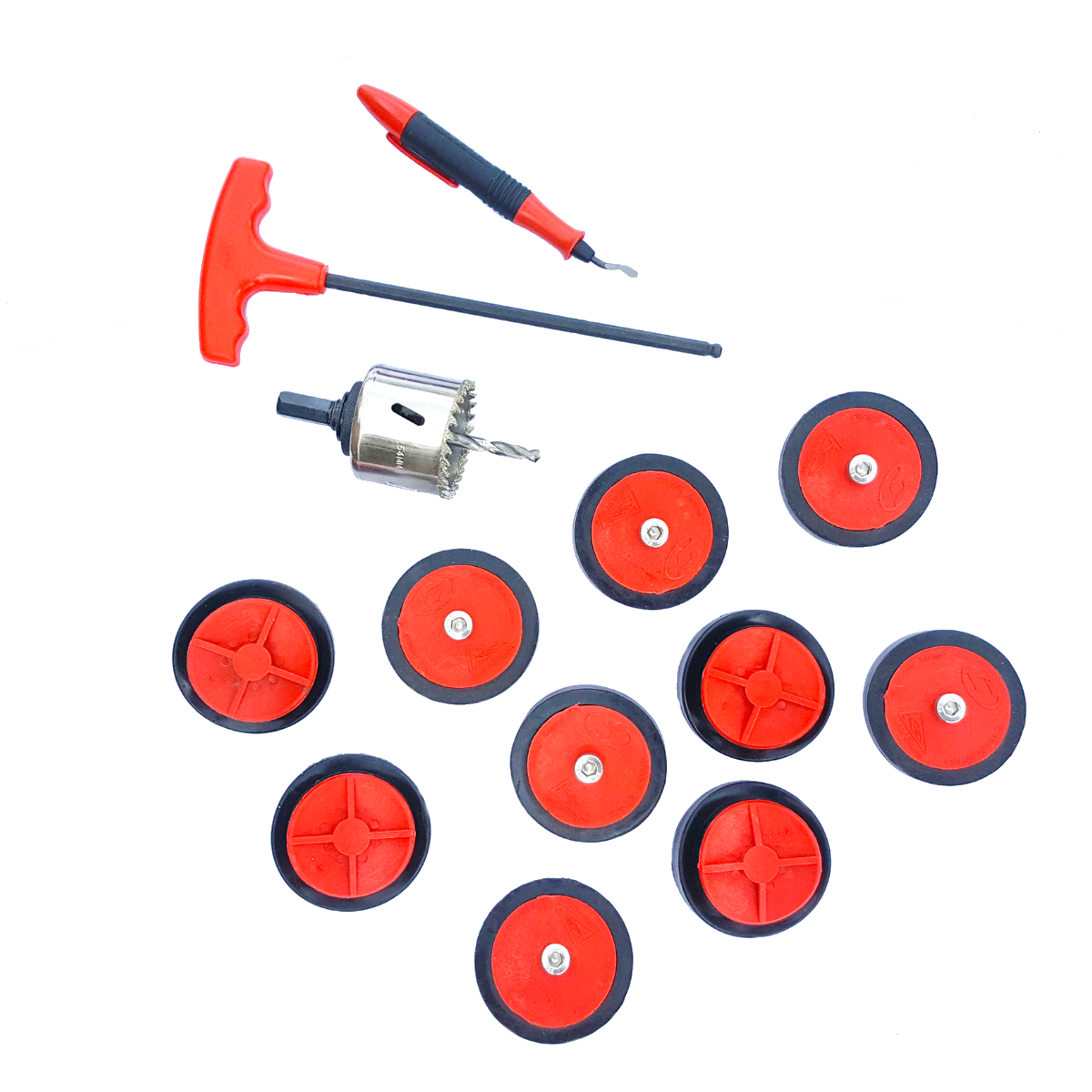

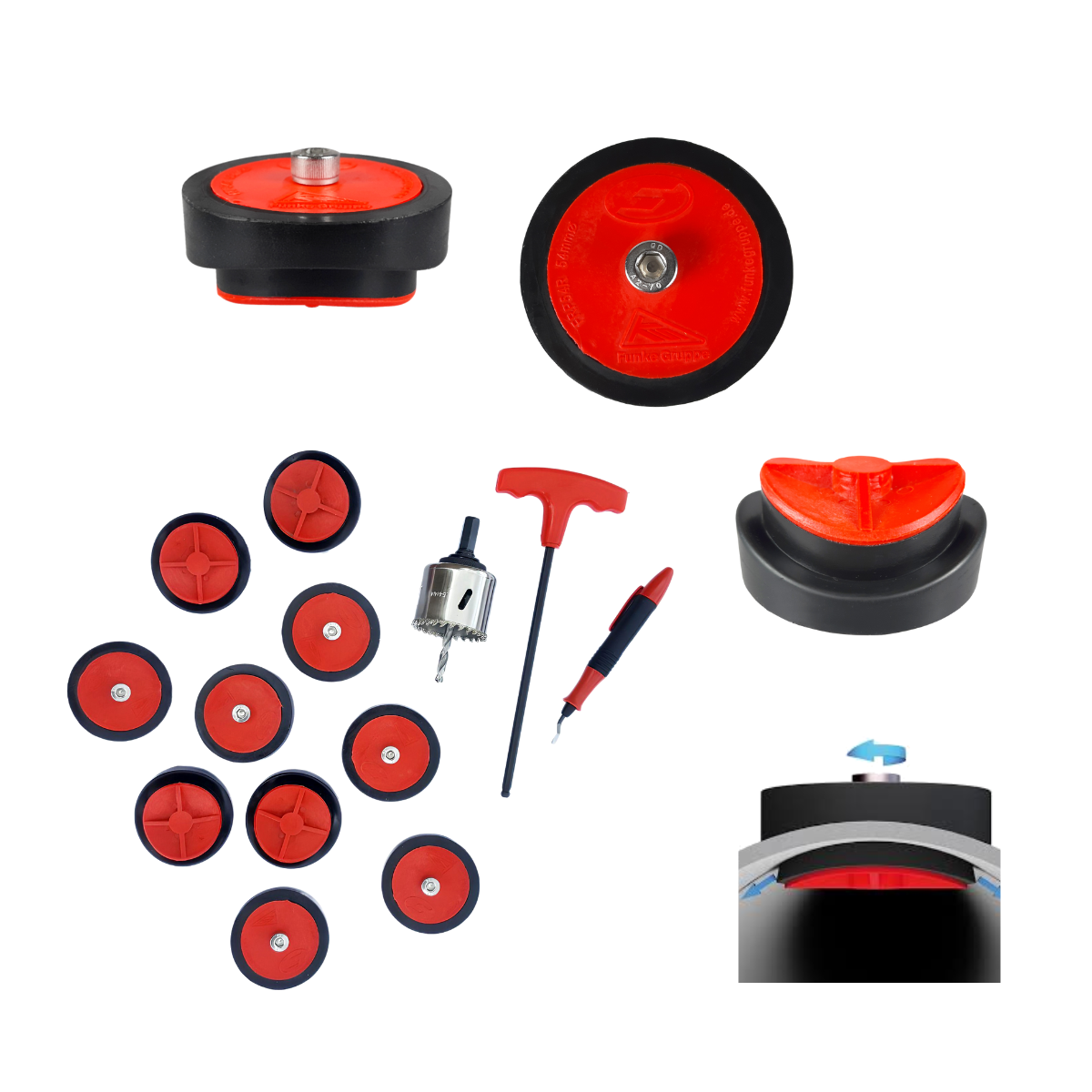

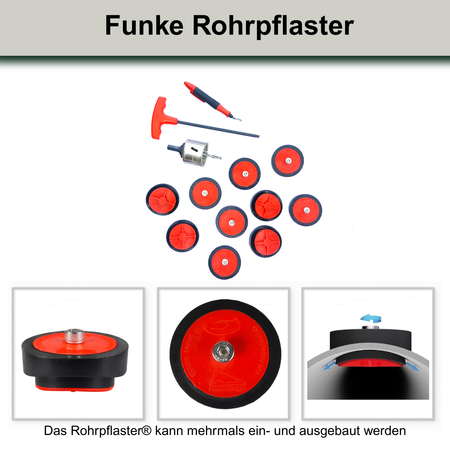

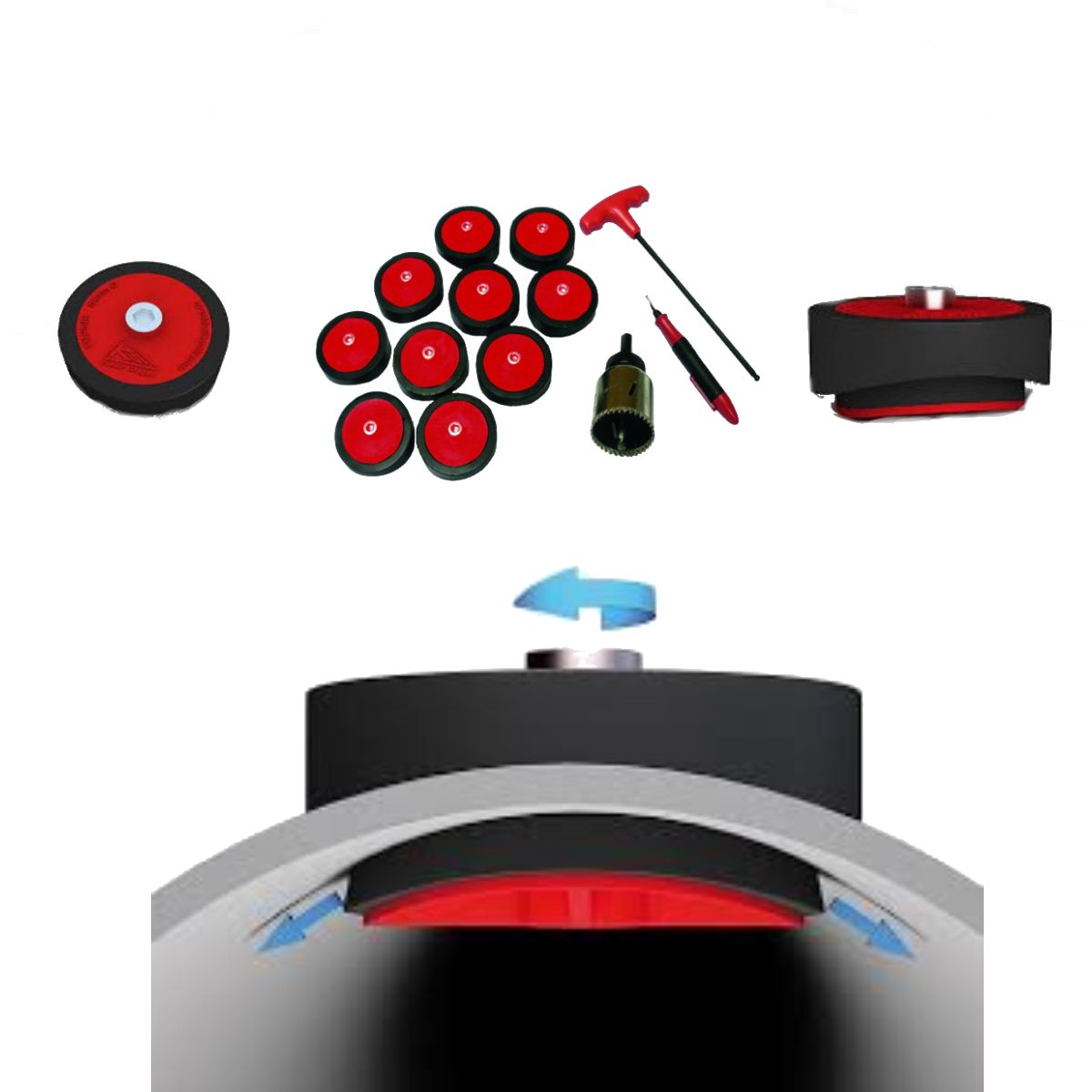

The delivery includes a set with ten pipe patches and extensive accessories.

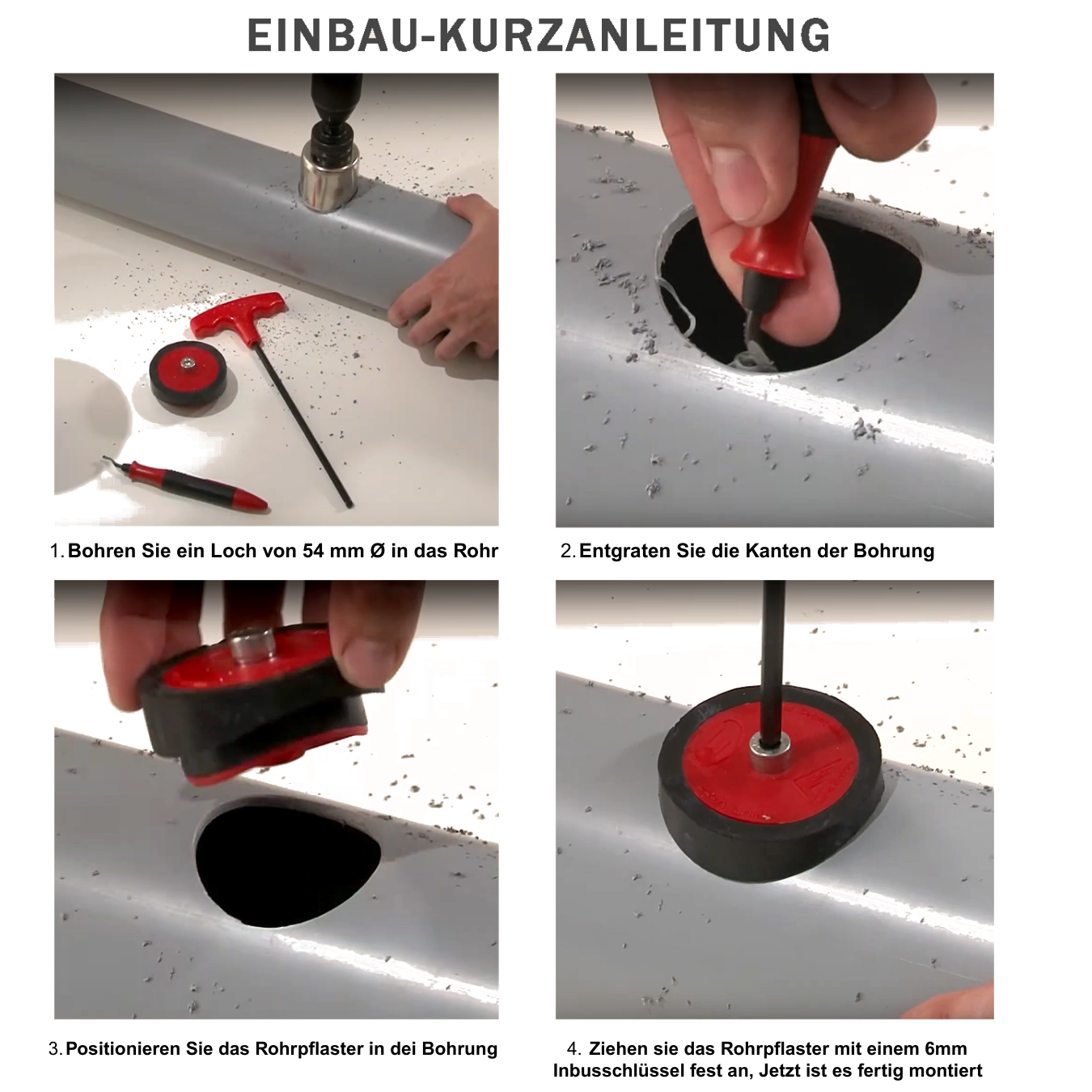

Installation:
Each Rohrpflaster® is pre-assembled for quick installation.
1. Find a suitable location. Not in the pipe invert or near downpipes.
not opposite branches, as the pipe paving protrudes slightly inside!
Determine the required position of the access point and mark the
Center.
2. Drill a 54 mm hole using the supplied core bit.
perpendicular to the pipe. For cast iron pipes, we recommend using the drill with
Water or cutting spray to easily cool and lubricate.
Recommended speed: approx. 650 rpm. Required drill chuck: 13 mm.
3. Deburr the hole well so that the cutting surface is smooth (at
metal pipes with a file).
4. Insert the Pipe Patch® so that the curve of the Pipe Patch on the pipe
is present.
5. Hold the Pipe Patch® firmly and tighten the screw with the supplied 6 mm
Tighten the Allen key hand-tight (clockwise) until the pipe patch
firmly anchored in the hole. Please note that this does not require a large
effort is necessary.
6. The Pipe Paving® is now fully installed.
The Pipe Pavement® can be installed and removed multiple times. To disassemble:
Loosen the screw slightly (counterclockwise).
Attention: loosen a maximum of 3 - 4 turns, otherwise the inner plate falls off
Insert the pipe patch into the pipe! Then loosen the pipe patch and pull it out.
