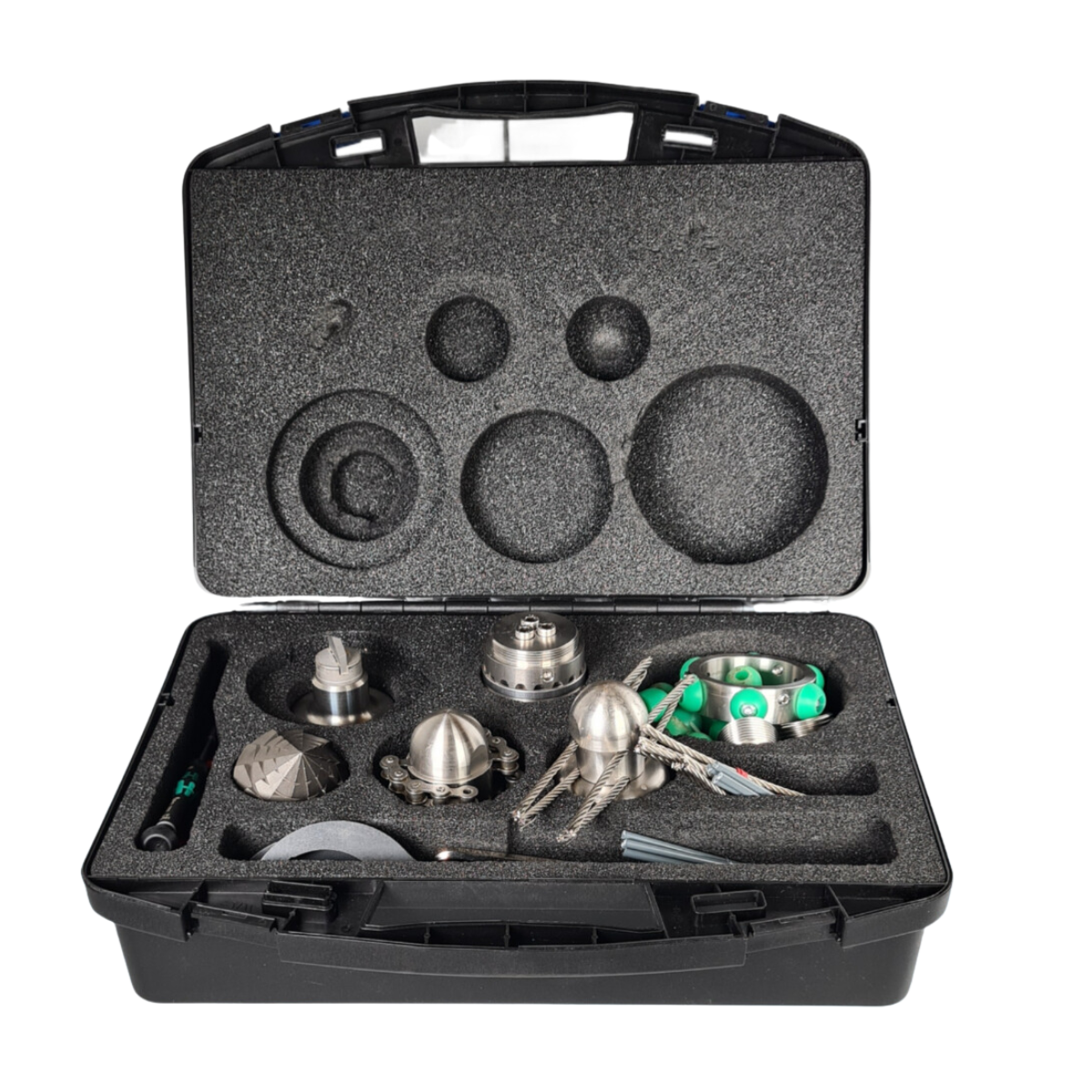

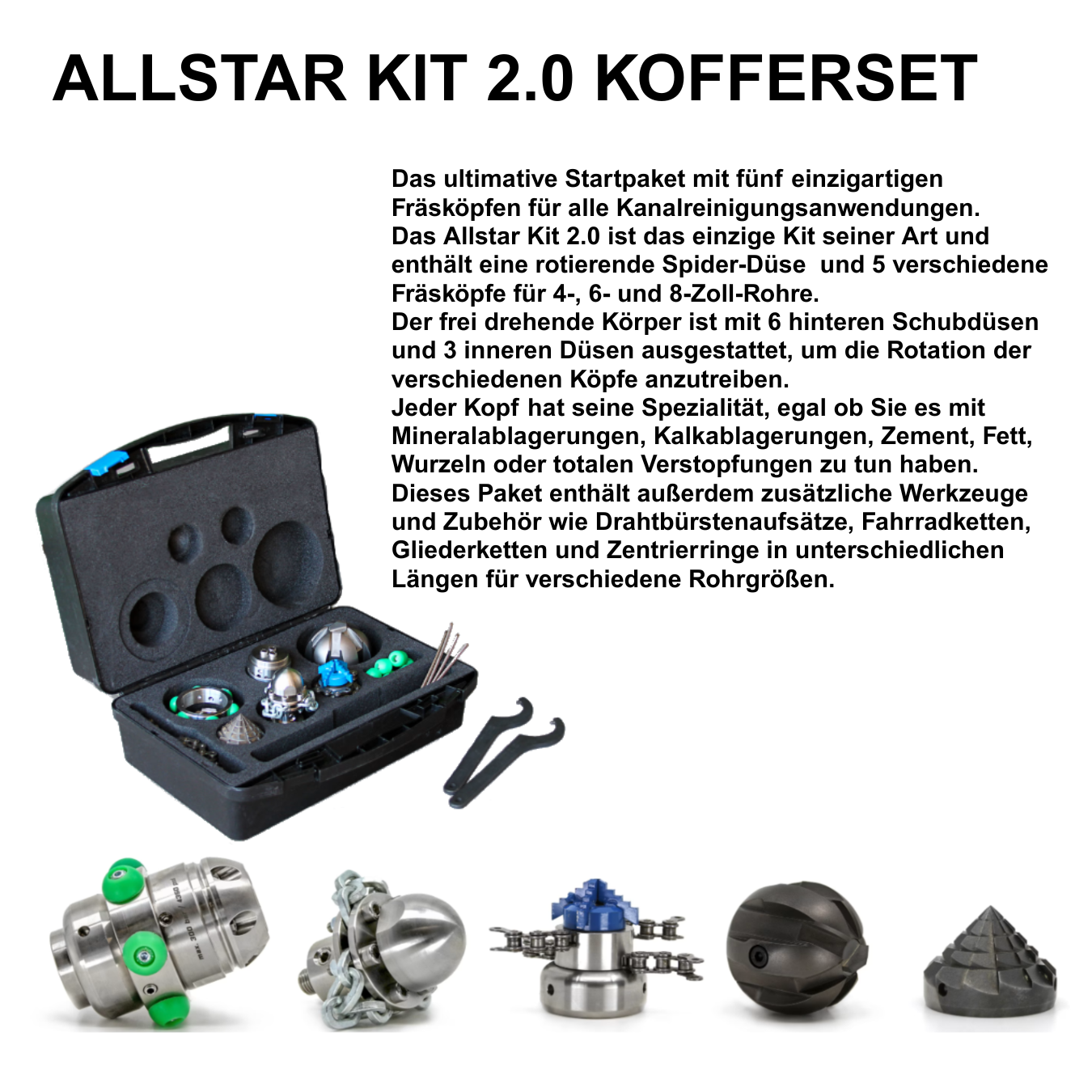

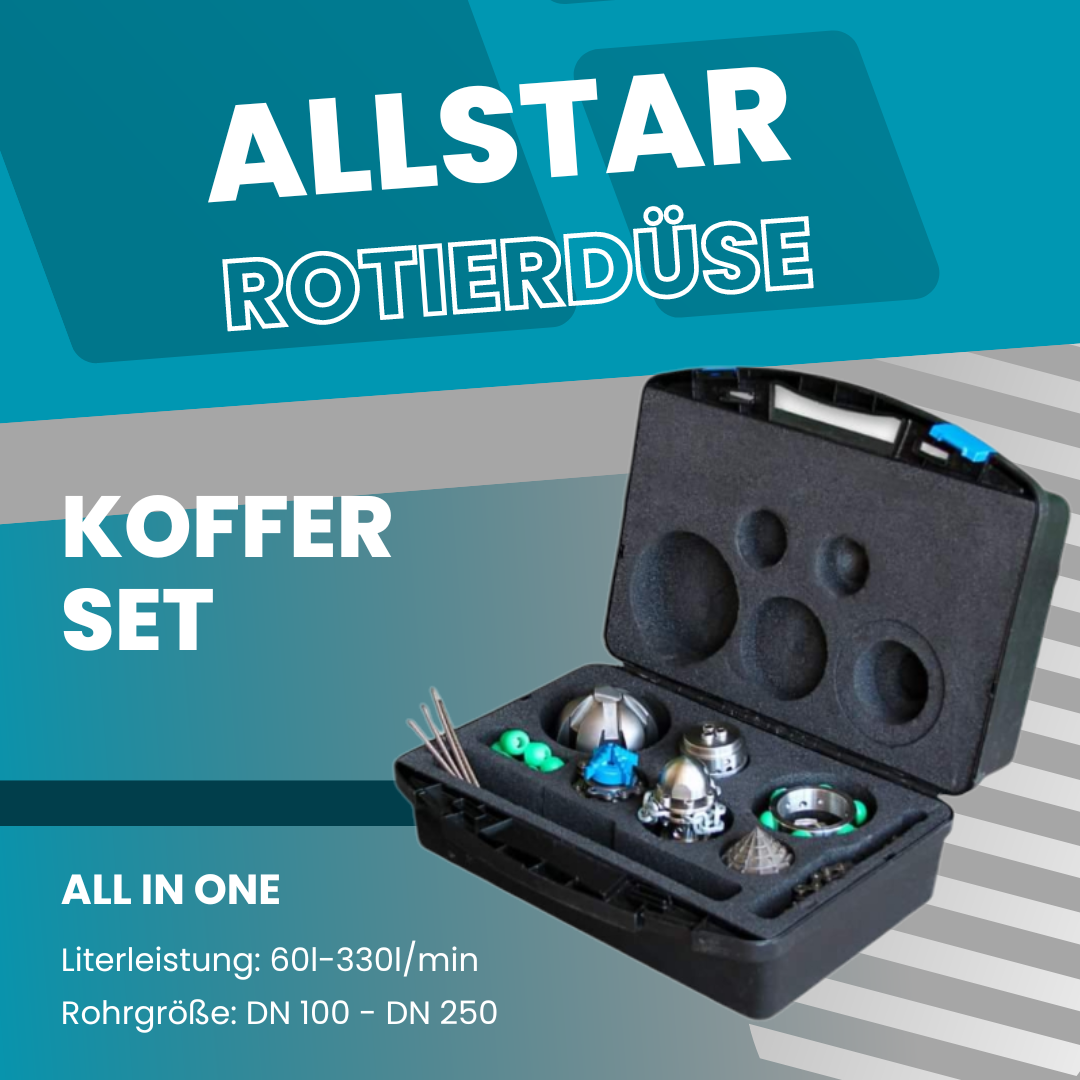

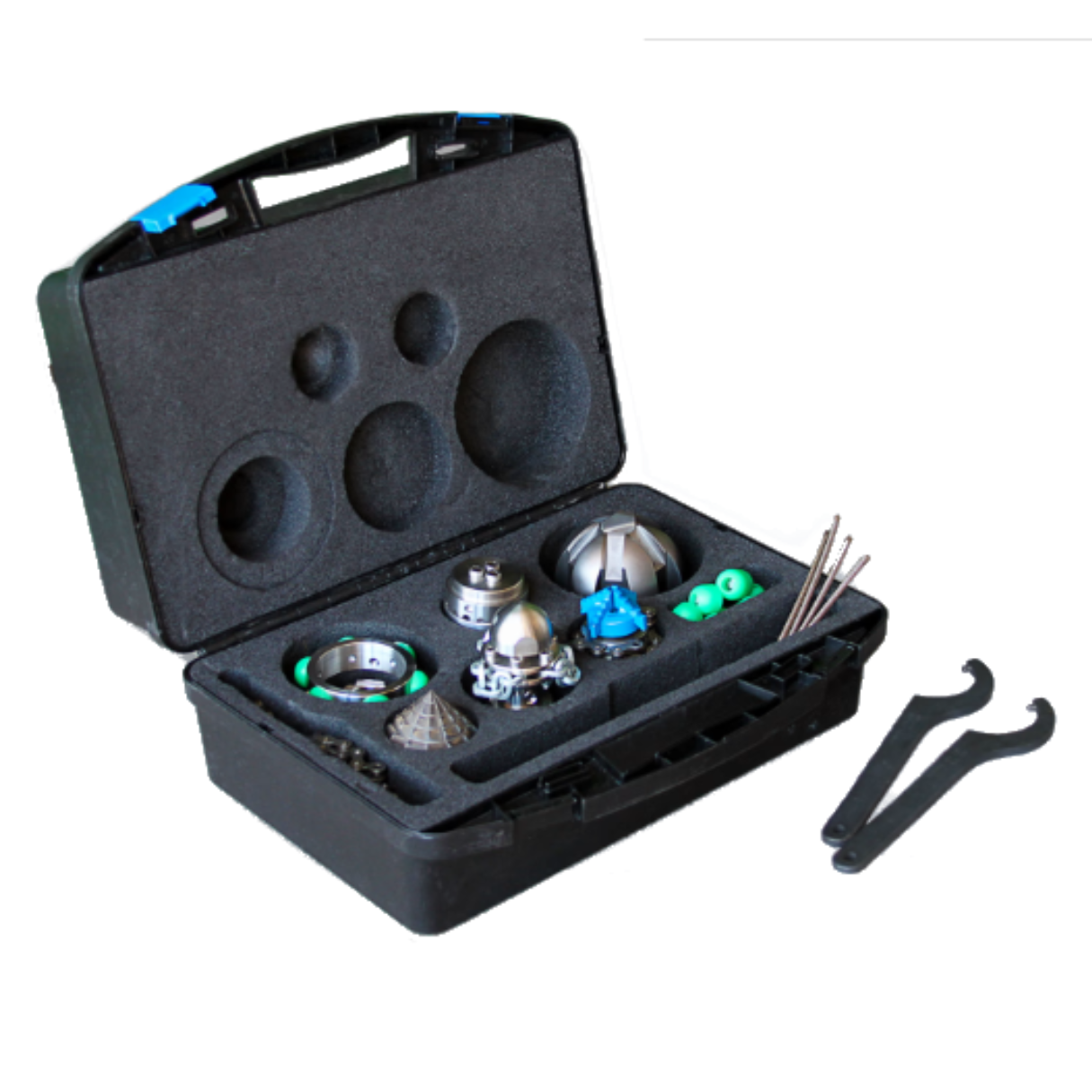

The ALLSTAR 2.0 case system is a versatile and powerful
Tool set specially designed for professional sewer and pipe rehabilitation
With an impressive capacity of at least 60
up to 330 liters per minute and a maximum working pressure of up to 350 bar
It covers the entire working range from DN 100 to DN 300. Thanks to its
flexible connection options (R1? / reducible to R1/2) the system
ideal for a wide range of application scenarios, from blockage removal to
to preparation for inliner processes. To remove mineral
Deposits, root growth and roughening of the inner pipe wall.

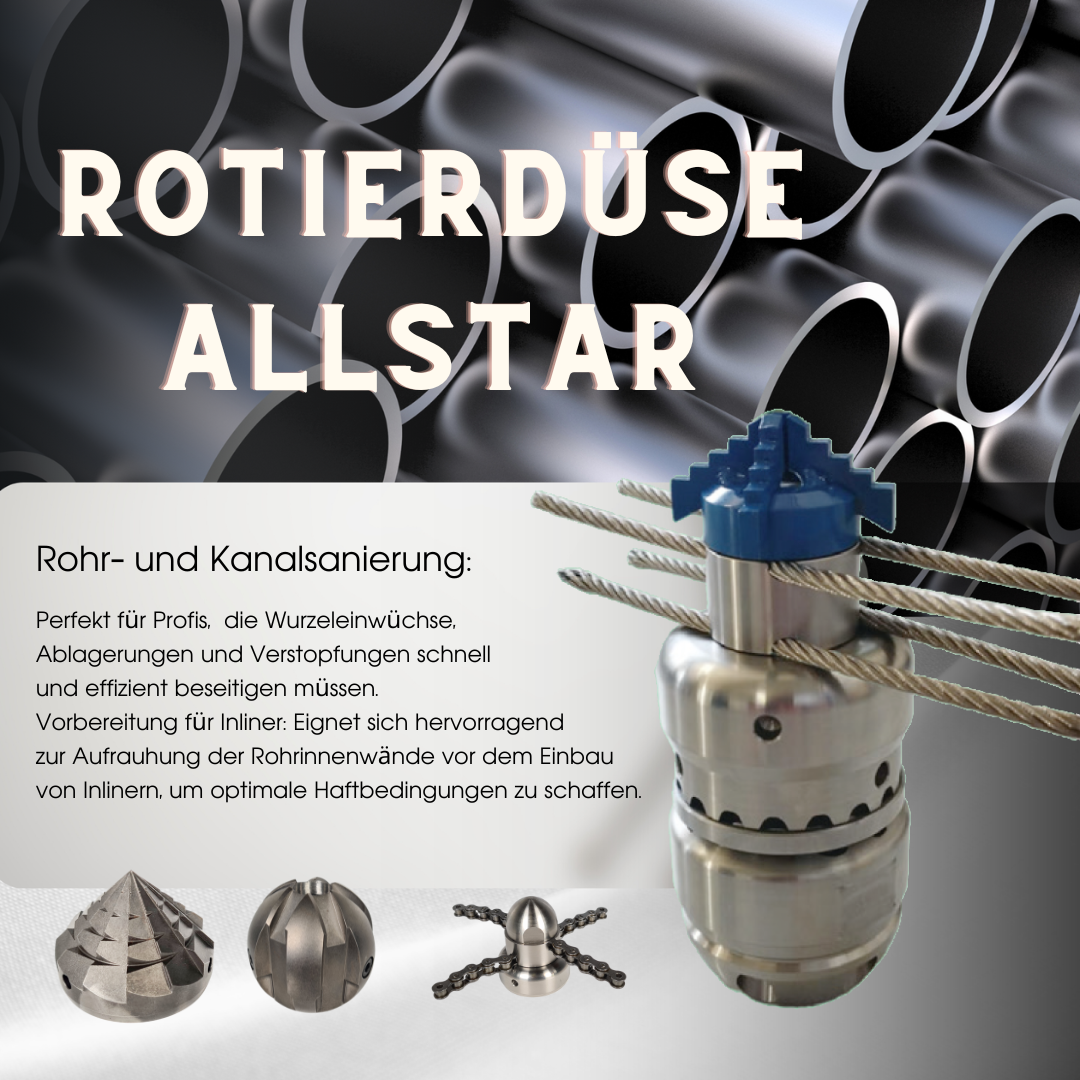

Areas of application:
Pipe and sewer rehabilitation: Perfect for professionals who want to remove root growth,
Deposits and blockages must be removed quickly and efficiently.
Preparation for inline skates: Ideal for roughening the
Pipe inner walls before installing inliners to ensure optimal adhesion conditions
create.
The ALLSTAR 2.0 case system is an indispensable tool set for the
professional pipe and sewer rehabilitation. With its extensive equipment
and high flexibility, it is the ideal solution for demanding
Cleaning tasks. Maximize your efficiency and manage even the
toughest blockages and deposits with the powerful ALLSTAR 2.0!

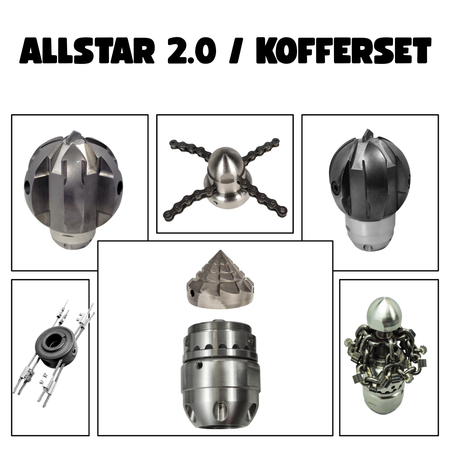

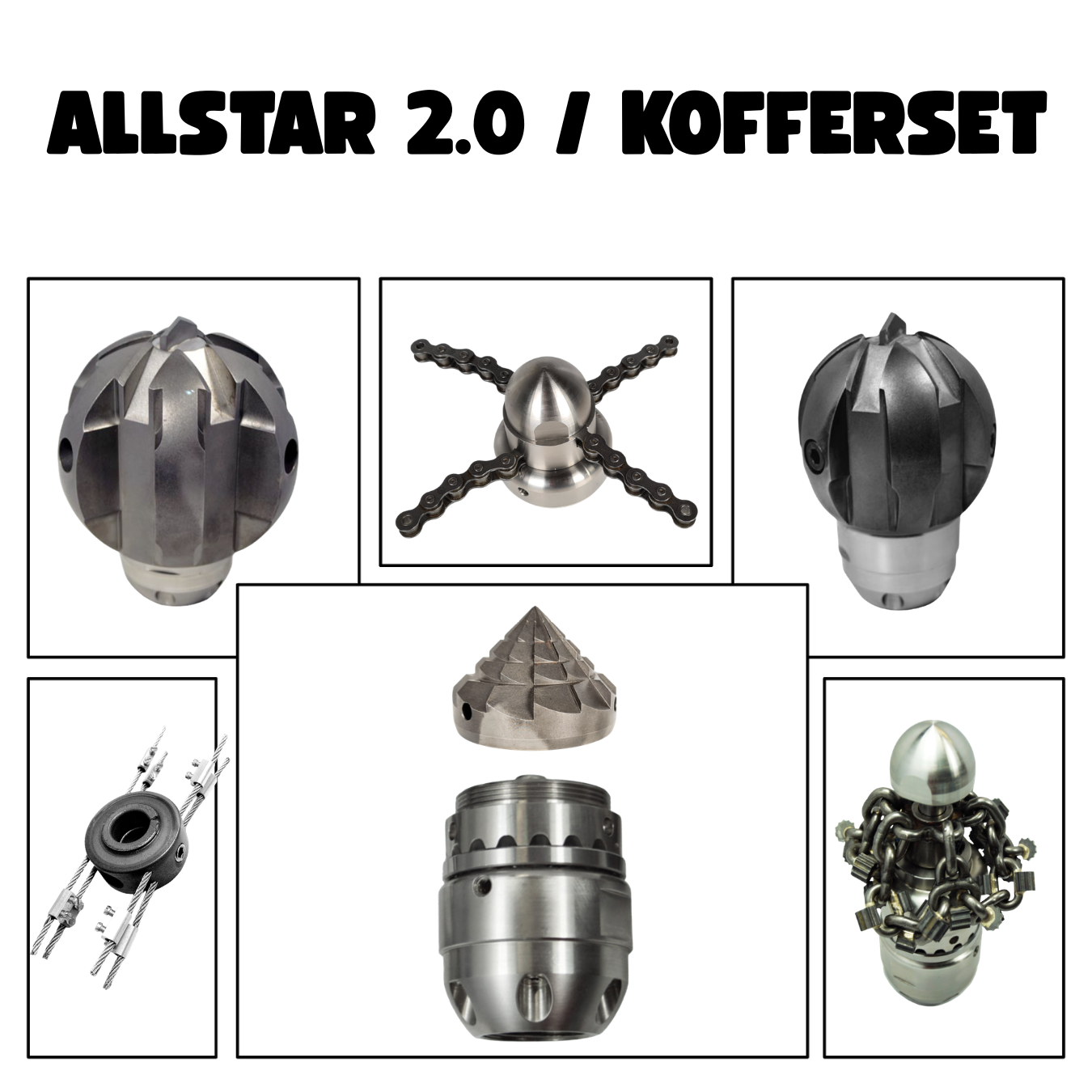

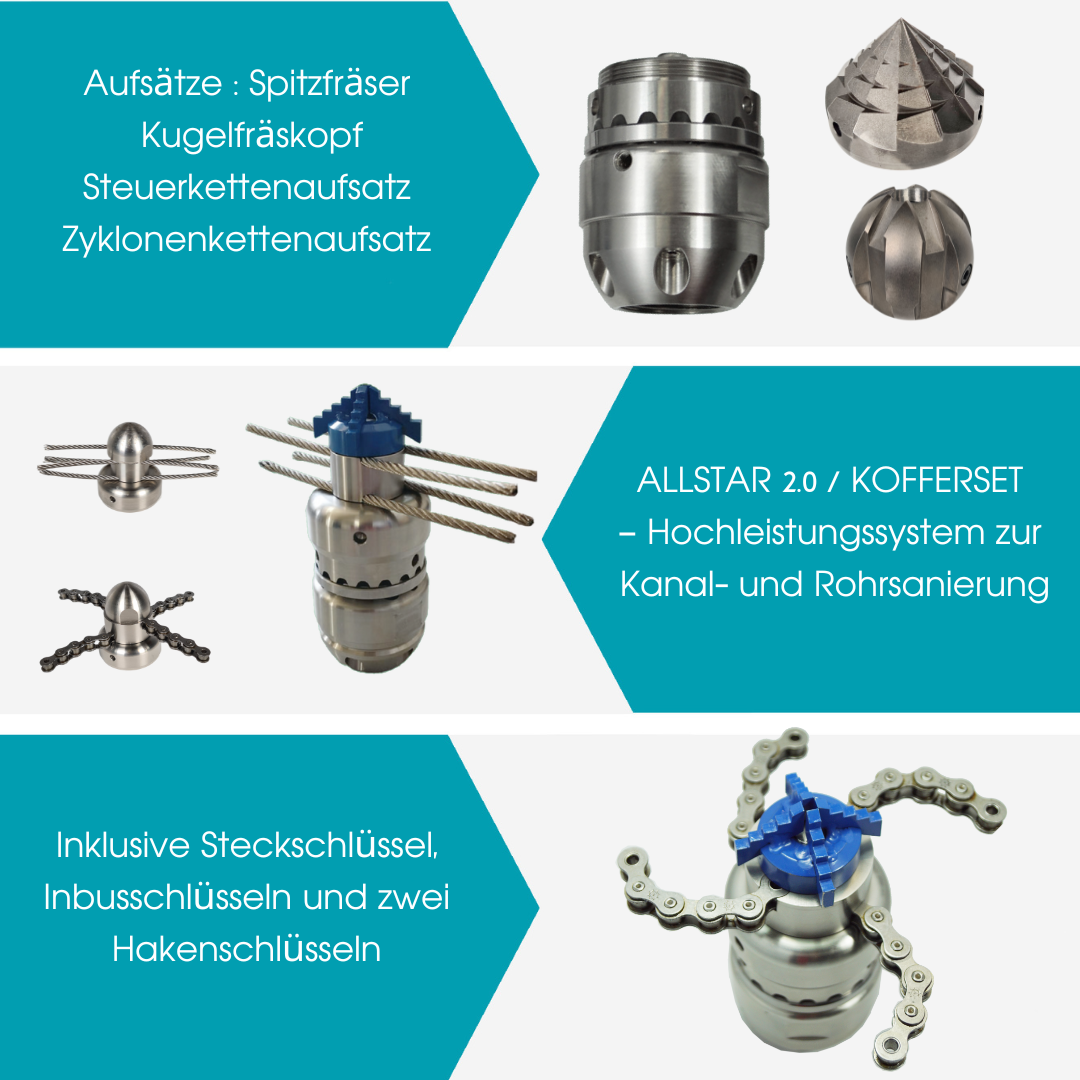

Individual components:
- Basic module/ turbine drive: 3 drive nozzles M4 ceramic, 6 feed nozzles M6
Ceramics
- Single row link chain attachment: for removing
Root growth/seal skin/roughening of the pipe wall before inliner installation;
DN100/DN125/DN150 each 1 link chain set
- Brush attachment: for removing stronger
Root growth/seal skin/roughening of the pipe wall before inliner installation;
DN100/DN100/DN125/DN150 1 brush attachment each; DN100/DN125/DN150 1 each
Plastic rod attachment
- Guide support ring: for stabilization and easier bending in the
Pipe diameter range DN100/DN125/DN150 with 6 discs each (for DN 150-300 the
additionally available guide carriages must be used)
- Stainless steel protective cap: for protection and easier propulsion against damage
in the pipe bend area
- Pointed cutter attachment: for removing blockages in the pipe by
Wet wipes/grease/ice/root ingrowth
- Double-row timing chain knocker: for removing stronger
Root growth/seal skin/roughening of the pipe wall before inliner installation;
DN100/DN125/DN150 1 roller chain set each
- Ball milling attachment DN100: for removing mineral deposits and
Opening of various inliner materials/ ball DN 100 incl. mounting adapter;
Working range DN125-DN200
- Middle cutter: milling attachment with IG M12-left
- Accessories: 2 socket wrenches/ 3 Allen keys/ 2 hook wrenches/ 1 case with
inlay
